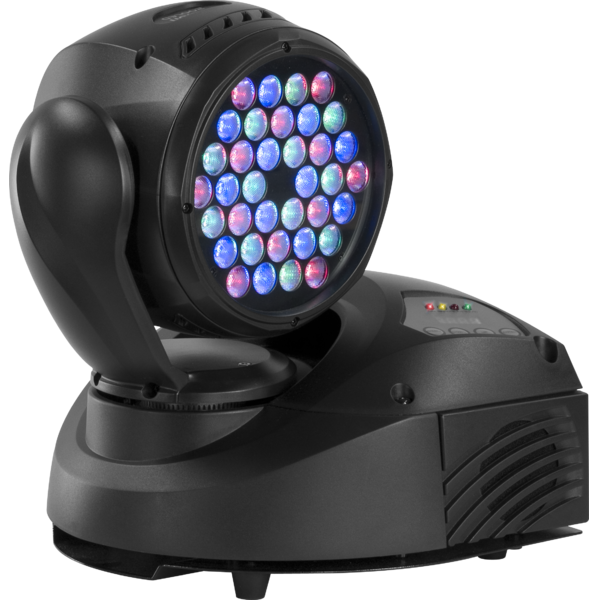

V200LED
PROLIGHTS
discontinued

V200LED

ORDER CODE: V200LED

Main features:

    LED source and optics
    • Colour mixing: RGB mixing system (16 million colours).
    • Light source: 36 x 1W LED (12 red, 12 green, 12 blue)
    • Colour synthesis: RGB mixing for virtually limitless colour range
    • LEDs life span: >75.000 hours
    • High definition optics
    • Projection angle: 25° (15° and 45° available on demand)
    Effects and control
    • Master/Slave mode for synchronized control of more projectors in a chain
    • Easy show: built-in programs with automatic/sound activated mode by control panel or EC800 remote control (not included)
    • 0-100% linear dimmer
    • Strobe/Shutter: strobe effect and fade effect with adjustable speed. Immediate opening and blackout
    • Control: DMX 512 protocol through 3 poles XLR cable with 2 operating modes available at 8 and 15 channels
    • Motion angle: Pan = 540° Tilt = 220°
    • Pan/Tilt resolution: 8-bit or 16-bit
        PAN= 2,10° PAN FINE= 0,008°    TILT= 0,86°  TILT FINE=0,0034°
    Electronic and structure
    • User Interface: 4-digit multi-function LED display to control addressing unit, general settings and fixture life timer
    • Feedback automatic repositioning
    • Cooling: forced ventilation with low-noise fans
    • Suspension and fixing: any possible working position with Omega clamp kit (included) with “quick lock” system
    • Body: high resistance polymer case in black colour
    • Power supply: 200-240V 50/60 Hz, VDE connection
    • Weight: 9 Kgs
    • Dimensions (WxHxD): 266x315x270 mm
