VERSAPAR
PROLIGHTS

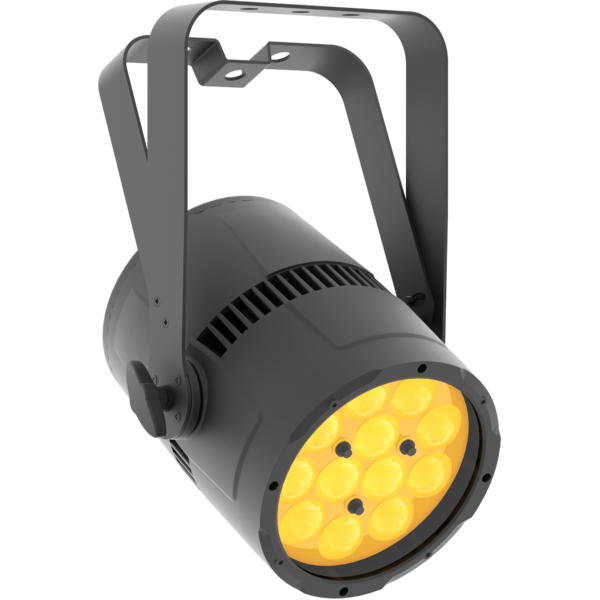

VersaPar

ORDER CODE: VERSAPAR

12x10W RGBW/FC LED compact zoom PAR

VersaPar is a LED zoom PAR designed for rental companies. The multi-purpose concept combining high brightness, wide zoom range and advanced colour mixing make this a unique fixture. VersaPar is equipped with 10° - 60° unrivalled zoom range, high efficiency, perfect chromatic uniformity, HDL dimming technology and totally silent operation.

Main features:

  • 12x10W RGBW/FC LED
  • Wide zoom range from 10° - 60° (1:6 zoom)
  • HD dimming with selectable PWM
  • Silent operation for studio application
See variants

PHOTO GALLERY

VersaPar
VersaPar
VersaPar
VersaPar
VersaPar

Technical specifications

LIGHT SOURCE
  • Source: 12x10W RGBW / FC LEDs
  • Luminous flux: (10°) 1'450 lm - (60°) 1'786
  • Lux: (10°) 3'144 lx - (60°) 249lx @5 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom: 10° - 60° motorised linear zoom
  • Lens type: plano-convex lens path
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: black
CONTROL
  • Protocols: DMX512
  • DMX channels: 5 / 7 / 10channel
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: -10° ~ +40°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 120W
  • Output (at 230V): 15 units on a single power line
  • Power factor: > 0,94
PHYSICAL
  • IP rating: 30
  • Cooling: active, silent operation
  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning
  • Signal connection: XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 262x350x261mm / 10.31''x13.78''x10.28''
  • Weight: 5,5kg / 12.13lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

9533FCAL03
9533FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
TOUR53415L03
TOUR53415L03
(optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
958025L03
958025L03
(optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9513FCAL03
9513FCAL03
(optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
FCLPAR4190
FCLPAR4190
(optional)
Flight case for 8 STUDIOCOB, VERSAPAR
STUDIOCOBBD
STUDIOCOBBD
(optional)
Barn door 4 directional flaps to adjust the light beam, f. frame included
<b>Upbox</b> 1
Upbox 1
(optional)
Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT
UPBOXPRO
UPBOXPRO
(optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetVersapar_A4_DATASHEET_(EN).pdf390KB
Letter datasheetVersapar_A4_DATASHEET_(IT).pdf395KB

User manual

File name File size Download
User manualVersapar_USER_MANUAL_EN.pdf2MB

DMX chart & personalities

File name File size Download
DMX chartVersapar_DMX_CHARTS.pdf76KB
VERSAPAR Firmware rev. 1.7
manufacturer fixture library (Link) Link
prolights_versapar.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
versapar_5ch.fdfDownload
versapar_7ch.fdfDownload
versapar_10ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@versapar@5_channel@ma_library_update_v13.1.xmlpDownload
prolights@versapar@7_channel@ma_library_update_v13.1.xmlpDownload
prolights@versapar@10_channel@ma_library_update_v13.1.xmlpDownload
manufacturer fixture library (Link) Link
versapr_hog3.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
versapar 5 channel.fix2Download
versapar 7 channel.fix2Download
versapar 10 channel.fix2Download
manufacturer fixture library (Link) Link
VERSAPAR Firmware rev. 1.6
manufacturer fixture library (Link) Link
prolights_versapar.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
versapar_5ch.fdfDownload
versapar_7ch.fdfDownload
versapar_10ch.fdfDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
prolights@versapar@5_channel@ma_library_update_v13.1.xmlpDownload
prolights@versapar@7_channel@ma_library_update_v13.1.xmlpDownload
prolights@versapar@10_channel@ma_library_update_v13.1.xmlpDownload
manufacturer fixture library (Link) Link
versapr_hog3.zipDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
versapar 5 channel.fix2Download
versapar 7 channel.fix2Download
versapar 10 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
3D RFAVersapar_3D.rfa948KB
3D SKPVersapar_3D.skp1MB
2DVersapar_CAD_2D.dwg3MB
2D cad symbolsVersapar_CAD_2DSYMBOLS.dwg23KB
3DVersapar_CAD_3D.dwg298KB
Technical drawingVersapar_TECHNICAL_DRAWING.pdf189KB
VectorWorksVECTORWORKS_SYMBOLS.vwx325KB
VectorWorksPROLIGHTS_VECTORWORKS_v24_LIBRARY.vwx317MB
VectorWorksPROLIGHTS_VECTORWORKS_v19_LIBRARY.vwx488MB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: UPBOX1UP5 UPBOX1UP5 UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.7 STABLE 15/04/2021 Added full on mode with off and studio modes. Added fan settings silent and off
1.6 STABLE 02/07/2020 Improved white balance feature. Rev. 1.0
