WIZARD
TRIBEby TRIBE
discontinued

WIZARD

ORDER CODE: WIZARD

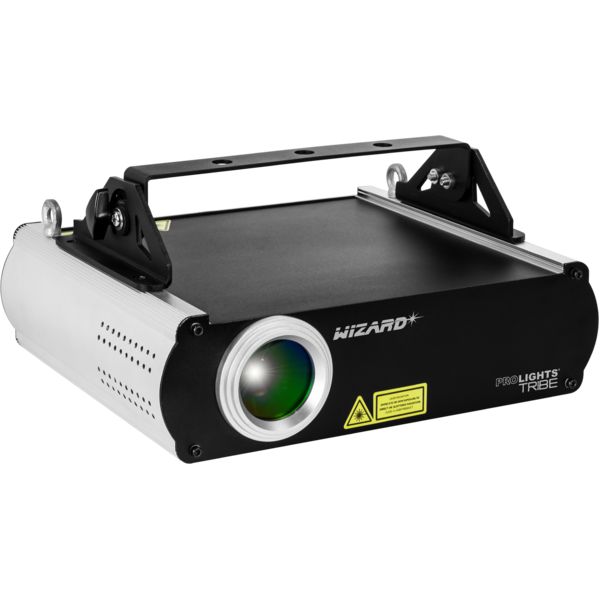

WIZARD is a professional graphics laser projector designed to create amazing laser shows in large venues. RGB additive colour mixing allows the generation of 7 colours with a sharp bright output, relying on total 820 mW power (100 mW green + 120 mW red + 600 mW blue) projecting images, sceneries and visible beams up to a long distance. WIZARD can be controlled through ILDA-compatible software, DMX protocol, sound show, pre-programmed auto shows, show uploaded through an SD card memory.

Main features:

  • Light source: 100 mW 532 nm green + 120 mW 638 nm red + 600mW 450nm blue diodes
  • DMX/ILDA protocol compatible
  • SD slot to play laser shows saved to an SD memory card
  • Visual effects: creation and reproduction of 3D animations, texts, logos, beams and waves
See variants

PHOTO GALLERY

WIZARD
WIZARD

Technical specifications

LIGHT SOURCE
  • Light source: diode 100 mW 532 nm green + 120 mW 638 nm red + 600 mW 450 nm blue
  • Scan frequency: 20KHz
  • Laser radiation class: 4
OPTICS
  • Beam angle: 1 - 36°
COLOUR SYSTEM
  • Colour mixing: 7 colours (red, green, blue, yellow, cyan, magenta, white)
DYNAMIC EFFECTS
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control
BODY
  • Body colour: black
CONTROL
  • Protocols: DMX, ILDA
  • DMX channels: 2 DMX mode up to 24channel
  • Display: LCD display
ELECTRICAL
  • Mains power supply: AC 230 V, 50 - 60 Hz
  • Max power consumption: 30W
PHYSICAL
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: ILDA input, ILDA trough, DMX 3p IN/OUT, SD memory slot
  • Power connection: IEC 10 A IN
  • Dimensions (WxHxD): 320x260x160mm / 12.6''x10.24''x6.3''
  • Weight: 3,75kg / 8.27lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA
BOX CONTENT

Versions

Accessories & Related Products

C6002B
C6002B
(optional)
Slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, Black&White& White
RSR0630B
RSR0630B
(optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
TOUR53413L03
TOUR53413L03
(optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualWizard_USER_MANUAL_ITEN.pdf3MB

DMX chart & personalities

File name File size Download

manufacturer fixture library (Link) Link
prolights_wizard.d4Download
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
wizard_24ch.fdf Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (only the latest version is available - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Notes:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all UPBOX interfaces
  • To update NET boards with .EHEX files a network cable and Professional Uploader software it's needed. It's possible to follow this guide
Update Tool: {Upbox}
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
0.1 STABLE 23/07/2018
