Z1200WASH
PROLIGHTS
discontinued

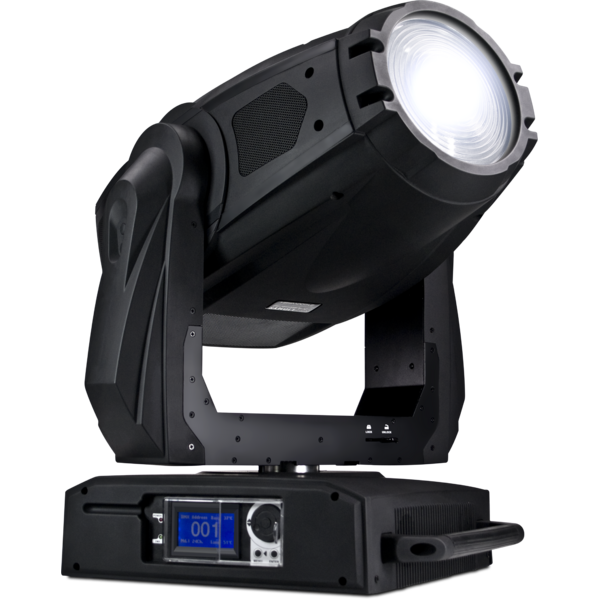

Z 1200Wash

ORDER CODE: Z1200WASH

Main features:

    Lamp
    • Philips MSRGold, 1200W Fastfit (cod. 800186 included)
    • Socket : PGJX50
    • Colour temperature: 6300 K
    • Luminous flux: 95.000 lm
    • Average life span: 750 h

    Optics
    • High efficiency light optical system
    • Fresnel lens: 200 mm diameter
    • Parabolic glass reflector with dichroic coating
    • 12°-45° electronic linear zoom

    Dimmer / shutter / strobe
    • 0-100% linear dimmer
    • Independent shutter and fading effects with adjustable speed
    • Strobe: mechanical, 8 flash per second

    Colour system and effects
    • CMY colour mixing
    • Linear CTO colour temperature correction
    • 2 additional overlapping colour wheels with 7 dichroic filters + open each (linear-stepless selection)
    • Overlapping colour wheels
    • UV and 5600 K colour temperature filters
    • Bidirectional rainbow effect
    • “Spot” beam mode disabling zoom optics
    • Easy calibration and maintenance by magnetic repositioning

    Electronics
    • 3,5” LCD display for a simplified access to control menu, configuration and DMX addressing
    • 3 DMX available configurations: 16/21/21 channels for full flexibility and control
    • Input and output signal through XLR 3p and 5p connectors
    • “ENERGY SAVE” mode: 50% reduction of power consumption during blackout status
    • Remote ON/OFF lamp control by DMX
    • Remote unit reset by DMX
    • Electronic self-test and check-up for diagnostics
    • Lamp life timer
    • Thermal sensor monitoring optimum lamp temperature
    • Cooling: filtered forced ventilation with variable speed low-noise fans

    Structure and moving body
    • Aluminium structure with polycarbonate cover, black colour
    • Ergonomic side handles for transportation
    • Motion angle: Pan = 540°  Tilt = 270°
    • Pan/Tilt resolution : 8-bit or 16-bit Pan = 2,10°   Pan Fine = 0,008° Tilt = 1,05°   Tilt Fine = 0,004°
    • Feedback Automatic repositioning
    • Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system
    • Pan and Tilt locking for transportation and maintenance

    Power supply
    • Electronic ballast: 200-240V 50/60Hz universal power supply
    • Power consumption: 1446VA at 230V/50Hz

    Weight and dimensions
    • Weight: 36 kgs
    • Dimensions (WxHxD): 555x810x435 mm
