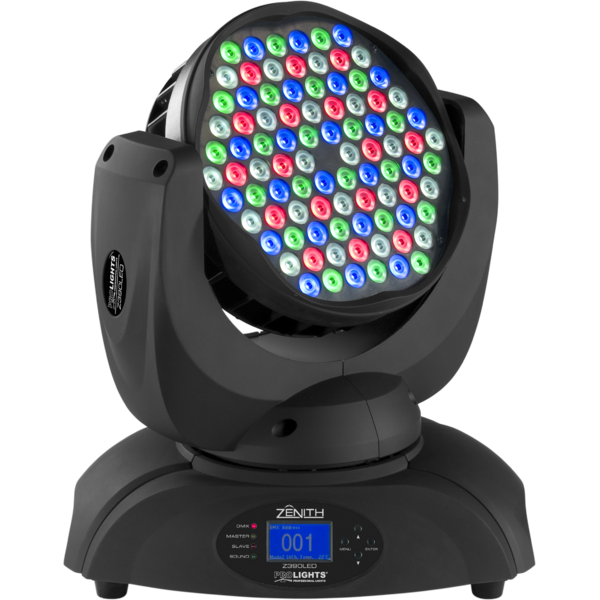

Z390LED
PROLIGHTS
discontinued

Z390LED

ORDER CODE: Z390LED

Main features:

    Led source and optics
    • Light source: 90 x 3W Osram LED
    • Colour synthesis: RGBW (18 red, 24 green, 24 blue, 24 white) mixing for a limitless colour range and accurate colour temperature control
    • LEDs life span: >75.000 hours
    • High definition optics
    • Beam angle: 25° and 15° (optional)
    • White balance control for a more accurate colour temperature adjustment
    Effects and control
    • Master/Slave mode for synchronized stand alone operations
    • Auto-Show mode with 4 pre-programmed show sessions
    • Sound activation by built-in microphone with sensitivity adjustment
    • Optional EC800 remote control for easy access to functions and built-in shows
    • 0-100% linear dimmer
    • Strobe/Shutter: strobe effect (13 flash per second) and fade effect with adjustable speed. Instant opening and blackout
    • Input DMX signal through XLR 3p connector
    • Operating DMX modes: 16 or 9 channels
    • Motion angle: Pan = 540° Tilt = 270°
    • Pan/Tilt resolution: 8-bit or 16-bit PAN= 2,10°   PAN FINE = 0,008°TILT= 1,05°   TILT FINE= 0,004°
    Electronic and structure
    • 3,5” LCD display for a simplified access to control menu, configuration and DMX addressing
    • Feedback automatic repositioning
    • Cooling: forced ventilation with variable speed low-noise fans
    • Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system.
    • Body: high resistance polymer case in black colour
    • Power supply: 100-240V 50/60 Hz
    • Power consumption : 390W
    • Weight: 10 kg
    • Dimensions (WxHxD): 325x400x215 mm
