ÆtherBox Two new

ORDER CODE: AETHERBOXTWO

IP65 2 universes CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth, battery and POE ready

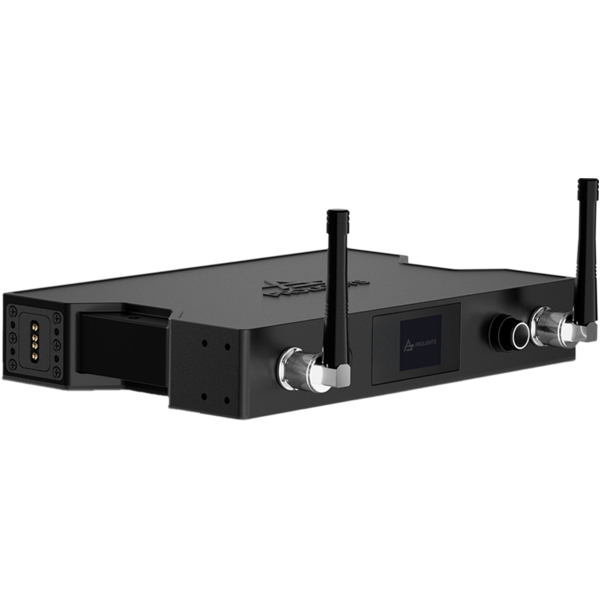

The AetherBox TWO is a robust IP65-rated double universes CRMX transceiver, designed for professional use in any setting, whether it be indoor or outdoor, on stages or sets. It boasts an extensive range of connectivity options including XLR 5p in/out, Ethernet for sACN and ArtNet, as well as Wi-Fi and Bluetooth, while supporting CRMX transmission protocol.

Constructed from die-cast aluminum, the chassis offers water and dust proof protection. It also provides versatile mounting solutions, such as rack mounting, truss mounting with velcro strings, camlock for easy hanging via omega brackets, and M10 and ⅜ threads for additional anchoring options.

The unit is adaptable in terms of power sources, accommodating mains power through a True1 connector, DC12V input, POE and NP-F battery type operation via an adapter box accessory. For user interaction, it features a color display and pushable encoders, allowing for easy access to advanced configuration settings.

Main features:

  • IP65 double universes CRMX transceiver
  • XLR 5p in/out, Ethernet for sACN and ArtNet, as well as Wi-Fi and Bluetooth
  • Rack mounting, truss mounting, camlocks, M10 and ⅜ threads anchoring options
  • Main power DC12V input, POE and NP-F battery type operation via an adapter box accessory
  • Available operating modes: TX mode, RX mode, and Repeater mode
  • Compatible with: CRMX, G4S, G3, and CRMX2 - CRMX2 operates as a receiver only
See variants

PHOTO GALLERY

ÆtherBox Two
ÆtherBox Two
ÆtherBox Two
ÆtherBox Two
ÆtherBox Two

Technical specifications

CONTROL
  • Supported Protocols: DMX512, RDM, ArtNet, sACN, CRMX, Bluetooth
  • DMX channels: 1024ch
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
  • Other: 1 push encoder
ELECTRONICS
  • Firmware upgrade with: via DMX with UPBOXPRO/UPBOX1 (not included)
BATTERY
  • Battery: 2x7,2V NP-F550/F570/F750/F770 type battery via dedicated accessory
CONNECTIONS
  • Power connection: Seetronic powerCON TRUE IP65 IN
  • Signal connection: Seetronic XLR 5p IN/OUT connectors
  • Wireless Connection: 2x integrated LumenRadio TimoTwo FX (full RDM) - CRMX, CRMX² (RX only) and W-DMX compatible, Bluetooth enabled
  • Transmission range: up to 80 meters with the included AEB2DBA90D antenna in open field
  • Data connection: Seetronic Ethernet IP IN connector
  • Low Voltage DC connector: Weipu SA6(12-48V), Battery slots
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Low Voltage DC mains: 12V via DC IN, 2x7.2V via battery slots, POE
  • Max power consumption (230V): 5W
  • Standby power: 1,4 W
PHYSICAL
  • IP rating: IP65 for temporary outdoor use
  • Housing: Weatherproof IP65 construction
  • Finish: black
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 270x45x241mm / 10.63''x1.77''x9.49''
  • Weight: 2,2kg / 4.85lbs
INSTALLATION
  • Rack mount: 1U 19" standard rack (optional accessories)
  • Mounting points: M10 and 3/8" threaded mounting points for clamps and wall mounting
CERTIFICATIONS / REPORTS
  • Compliance: CE, RCM, FCC, cTUVus
BOX CONTENT

Versions

Accessories & Related Products

AEB2DBA90D
AEB2DBA90D
(Included)
2 dBi 90° angled antenna (N-male connector) for AETHERBOX and CRMXBOXIP67
AEB5DBA
AEB5DBA
(Optional)
5dB antenna for AETHERBOX and CRMXBOXIP67, N-male connector
AEB2DBA
AEB2DBA
(Optional)
2 dBi Omni antenna (RP-TNC male connector) for AETHERBOX and CRMXBOXIP67
AEBTWOBAG1U
AEBTWOBAG1U
(Optional)

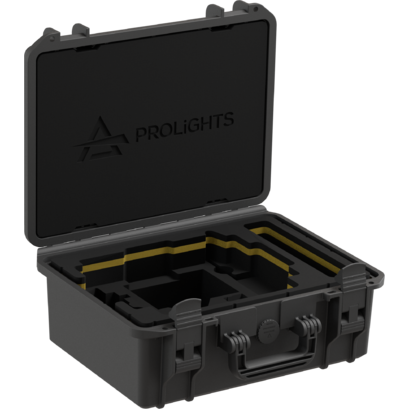

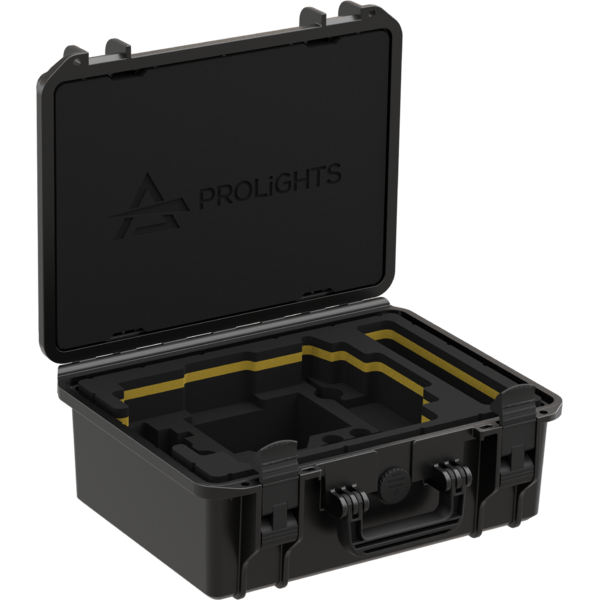

Empty ABS case for 1 pc of AETHERBOXTWO
AEBBATADP
AEBBATADP
(Optional)
Battery holder for AETHERBOX
CRMXBOXIP6790ADP
CRMXBOXIP6790ADP
(Optional)
IP67 90 degree adapter for CRMXBOXIP67 / AETHERBOX antenna, N-male connector
AEBRP2TNC
AEBRP2TNC
(Optional)
RP-TNC Female to N Male Adapter for AETHERBOX and CRMXBOXIP67
CABEXTN2N01M
CABEXTN2N01M
(Optional)
Antenna extension cable for AETHERBOX and CRMXBOXIP67, N-female connectors, 1 m
CABEXTN2N03M
CABEXTN2N03M
(Optional)
Antenna extension cable for AETHERBOX and CRMXBOXIP67, N-female connectors, 3 m
CABEXTN2N05M
CABEXTN2N05M
(Optional)
Antenna extension cable for AETHERBOX and CRMXBOXIP67, N-female connectors, 5 m
CABEXTN2N10M
CABEXTN2N10M
(Optional)
Antenna extension cable for AETHERBOX and CRMXBOXIP67, N-female connectors, 10 m
CABEXTN2N15M
CABEXTN2N15M
(Optional)
Antenna extension cable for AETHERBOX and CRMXBOXIP67, N-female connectors, 15 m
AEBTWORACKADP
AEBTWORACKADP
(Optional)

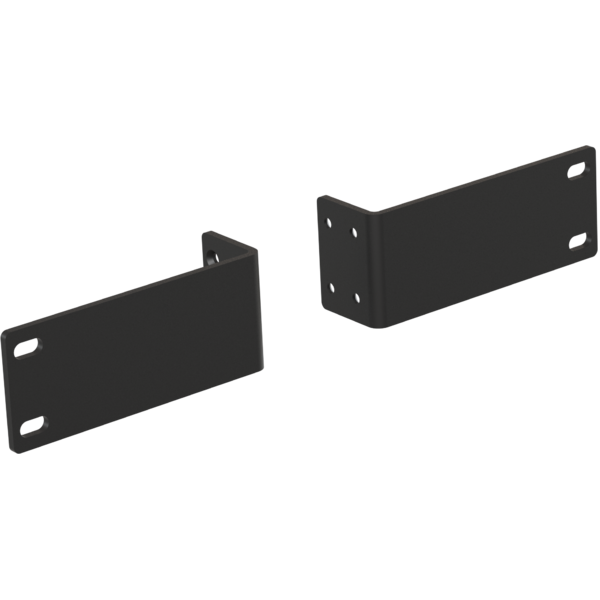

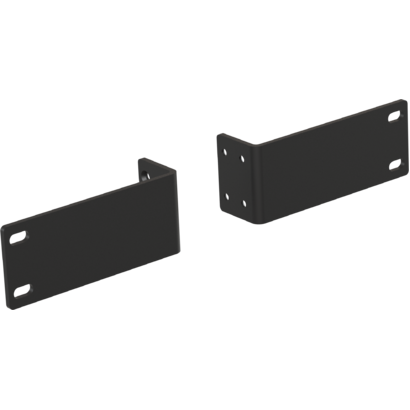

Rack adapter for AETHERBOXTWO
OS27PLUS
OS27PLUS
(Optional)
Quick-Lock omega bracket, M12 hole
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
<b>ÆtherBox</b> One
ÆtherBox One
(Optional)
IP65 1x universe CRMX transceiver, DMX, Ethernet protocols, Wi-Fi, Bluetooth, battery-ready, POE
<b>ÆtherBox</b>
ÆtherBox
(Optional)
IP65 1 universe CRMX transceiver, DMX and Ethernet protocols, Wi-Fi, Bluetooth and battery ready

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetAetherboxtwo_A4_DATASHEET_(EN).pdf(20/05/2026)237KB

User manual

File name File size Download
User manualAetherboxtwo_USER_MANUAL_EN.pdf(08/06/2026)2MB
User manualAetherboxtwo_General_Safety_Information.pdf(25/11/2025)4MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3D SKPAetherboxtwo_3D.skp(16/09/2025)107KB
2DAETHERBOXTWO_2D.zip2MB
3DAetherboxtwo_CAD_3D.dwg(16/09/2025)64KB
2D cad symbolsAetherboxtwo_AETHERBOXTWO_2DSYMBOLS.dwg(15/05/2026)22KB
Technical drawingAETHERBOXTWO_TECHNICAL DRAWINGS.zip279KB
VectorWorksAETHERBOXTWO_SYMBOLS.vwx(15/05/2026)829KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

Methods are listed in the product specs - ELECTRONICS > Firmware upgrade.

Method / Device Extension Required software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) UPBOX1 and UPBOX2 are still usable - check compatibility on the product accessories page. UPBOX2 requires drivers from this link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO - see the products list.

Update procedure
  1. Check the update methods on your product (ELECTRONICS> Firmware upgrade).
  2. Download the firmware and the dedicated software.
  3. Follow the update guide included in the firmware folder.

Need help?
support@prolights.it

Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 29/04/2026

New Function:

  • Added RDM when Aetherbox is running in Wireless@RX. Performing RDM discovery on the transmitter station now allows you to detect and access devices connected via DMX cable to the Aetherbox when it is running as a receiver.

Improvement:

  • Improved the power-on warning regarding antenna connection. This is displayed after running Factory Reload.
 Rev. 1.0
