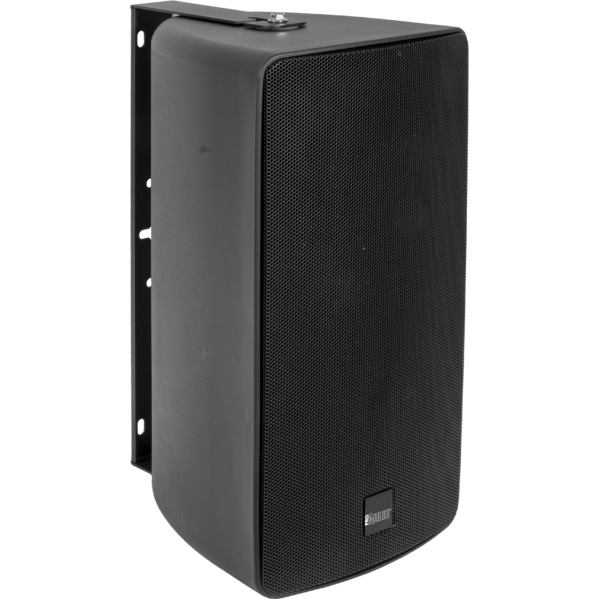

AIR08X

2-way passive loudspeaker, 180W AES, 122dB SPL

Air series outdoor loudspeakers present superior performance and durability with full sound over a large listening area. Thanks to their elegant style and sturdy structure, they are the ideal speakers for listening to music in the pool, on the veranda or even in the boat. The adjustable mounting brackets supplied, allow to set up them vertically or horizontally, so as to integrate them perfectly into the surrounding environment. The IP46 / IP56 structure (depending on the model) is designed to withstand the rigours of the climate all year round due to the outdoor installation.

Main features:

  • Vertically or horizontally mounted with the brackets /supplied supports.
  • Tested to withstand snow, rain and salt.
  • Suitable for use on the boat.
  • The Air 08X 2-way full-range loudspeaker with IP46 waterproof protection is ideal for small outdoor or indoor installations and can be used in combination with DAD Ark 208 sub.
  • The polypropylene cabinet provides complete protection against ultraviolet rays.
  • The grid is made of perforated aluminium, internally lined with waterproof fabric and open cell polyurethane foam.
  • The PROAUDIO logo can be rotated for vertical or horizontal installation.

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: passive 2 way
COMPONENTS
  • Low frequency: 8'' woofer/2''v.c.
  • High frequency: 1'' driver/1''v.c.
FEATURES
  • AES/program power: 180/360W
  • SPL max: 122dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 94dB
  • Impedance: 16 Ohm
  • SPL cont/peak: 116/122dB
  • Frequency response: 60-18.000Hz
  • Coverage angle HxV: 90x50°
  • Cross over frequency: 2300Hz
  • Protection: H.F. signal compression
  • Suggest HPF range: 140/180Hz
  • Recommended amplifier up to: 360W
INPUT/OUTPUT CONNECTORS
  • Screw terminal IN/OUT: phoenix
CABINET CONSTRUCTION
  • Cabinet material: polypropilene
  • Sospension system: wall brackets (included)
PHYSICAL
  • IP rating: 46 for outdoor installations
  • Dimensions (WxHxD): 241x450x285mm / 9.49''x17.72''x11.22''
  • Weight: 9.6kg / 21.16lbs

Versions

Code
AIR08XBK
AIR08XBK
AIR08XWH
AIR08XWH

Accessories & Related Products

AIRWB80
AIRWB80
(Optional)

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetAir08x_A4_DATASHEET.pdf343KB

User manual

File name File size Download
User manualAir08x_USER_MANUAL_ITEN.pdf2MB
User manualAir08x_USER_MANUAL.pdf2MB
