AIR18Z
PROLIGHTS
end of life

Air 18Z

ORDER CODE: AIR18Z

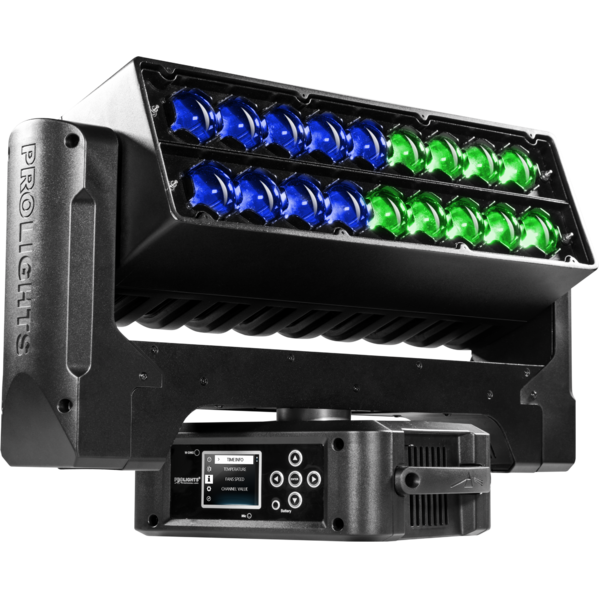

Air 18Z is a true designers tool. Taking the LEDs, optical system and effects of the DIAMOND family into a linear form factor for a flexible new look on stage.
With individual pixel control, infinite pan, and independant zoom for each line of pixels, the creative possibilities of the Air 18Z are endless.

Main features:

  • 18x15W RGBW Osram Ostar LEDs
  • 1:11 / 6° - 66° zoom range
  • Continuous pan rotation
  • Dual zoom
  • Pixel control of every individual LED
  • Advanced onboard effects generator with dynamic macros, static patterns, adjustable foreground and background colours, speed and rotation

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 18x15W RGBW Osram Ostar LEDs
  • Luminous flux: 8'800
  • Lux: (6°) 17'230 lx - (66°) 1'649lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 6° - 66° motorised linear zoom
  • Lens type: honeycomb gapless plano-convex optics
  • Other: 2 layer zoom control
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.800 K ~ 9.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: built-in white presets
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Special features: Pixels controlled through On/Off switch for simplified control and budget friendly
BODY
  • Pan range: 630° with 360° continuous rotation
  • Tilt range: 265°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 25 / 27 / 36 / 99channel
  • Pixel control: pixel2pixel control through on/off switch
  • Wireless Control: optional, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
  • Hibernation: power safe mode when lost DMX
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 270W
  • Standby power: 20W
  • Output (at 230V): 8 units on a single power line
PHYSICAL
  • IP rating: 20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: XLR 5p IN/OUT connectors
  • Power connection: powerCON TRUE1 IN/OUT
  • Dimensions (WxHxD): 550x342x200mm / 21.65''x13.46''x7.87''
  • Weight: 13kg / 28.66lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
OS24D13
OS24D13
(Included)
Quick-lock omega bracket, M12 hole
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
958225L03
958225L03
(Optional)
3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
9513FXWL03
9513FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m
9533FXWL03
9533FXWL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FXW socket, L.3m
FCLAIR18Z
FCLAIR18Z
(Optional)
Flight case for 4pcs of AIR18Z
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs
