ALH32
ORDER CODE: ALH32
Share me

Immagine Principale
  • ALH32
  • ALH32
  • ALH32
  • Code Tube (mm) Diagonal (mm) W (cm) H (cm) D (cm) Weight (kg) Volume (mc) Avail.
    ALH32050
    50x3 20x3 50 5 29 1,60 0,007
    ALH32100
    50x3 20x3 100 5 29 2,60 0,015
    ALH32150
    50x3 20x3 150 5 29 3,50 0,022
    ALH32200
    50x3 20x3 200 5 29 4,40 0,029
    ALH32250
    50x3 20x3 250 5 29 5,40 0,036
    ALH32300
    50x3 20x3 300 5 29 6,40 0,044
    ALH32350
    50x3 20x3 350 5 29 7,30 0,051
    ALH32400
    50x3 20x3 400 5 29 8,20 0,058
    ALH32450
    50x3 20x3 450 5 29 9,10 0,065
    ALH32500
    50x3 20x3 500 5 29 10,0 0,073

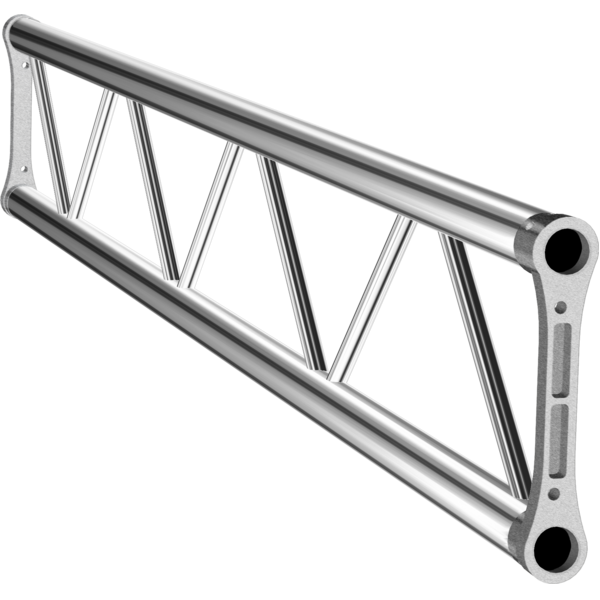

    Flat section aluminium truss with 29 cm sides

    Features:
    Lengthwise: extruded tubes, Ø 50x3 mm 6082 T6
    Diagonal: extruded tubes, Ø 20x2 mm 6082 T6
    Plate: cast aluminium plate
    Fast connection kit ALFCF5 included

    ITEMS REF.
    Accessory Code
    Description
    ALH32 (optional)
    {CODEs}ALH32L29
    DISCONTINUED
    *2-way L corner for ALH32Series, extrude tube 50x3mm, 2x ALFCF5 included
    ALH32 (optional)
    {CODEs}ALH32L30
    DISCONTINUED
    *3-way L corner for ALH32Series, extrude tube 50x3mm, 2x ALFCF5 included
    ALH32 (optional)
    {CODEs}ALH32T30
    DISCONTINUED
    *3-way T joint for ALH32 Series, extrude tube 50x3mm, 2x ALFCF5 included
