ALSF30
ORDER CODE: ALSF30
Share me

Immagine Principale
  • ALSF30
  • ALSF30
  • ALSF30
  • ALSF30
  • Code Tube (mm) Diagonal (mm) W (cm) H (cm) D (cm) Weight (kg) Volume (mc) Avail.
    ALSF30050 50x2 20x2 50 5 29 1,60 0,007
    ALSF30100 50x2 20x2 100 5 29 2,60 0,015
    ALSF30150 50x2 20x2 150 5 29 3,50 0,022
    ALSF30200 50x2 20x2 200 5 29 4,40 0,029
    ALSF30250 50x2 20x2 250 5 29 5,40 0,036
    ALSF30300 50x2 20x2 300 5 29 6,40 0,044
    ALSF30350 50x2 20x2 350 5 29 7,30 0,051
    ALSF30400 50x2 20x2 400 5 29 8,20 0,058
    ALSF30450
    50x2 20x2 450 5 29 9,10 0,065
    ALSF30500
    50x2 20x2 500 5 29 10,0 0,073

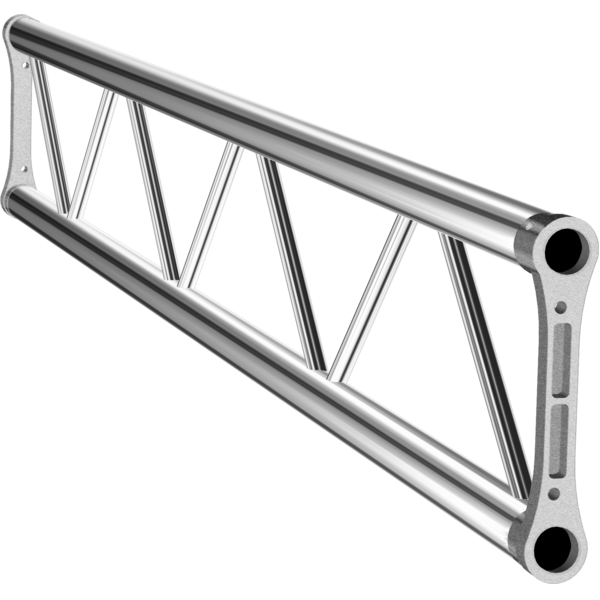

    Flat section aluminium truss with 29 cm long sides.
    • Lengthwise: extruded tubes, Ø 50x2 mm 6082 T6.
    • Diagonal: extruded tubes, Ø 20x2 mm 6082 T6.
    • Plate: cast aluminium plate.
    • kit Fast Connection ALFCF5 included.
    ITEMS REF.
    Accessory Code
    Description
    ALSF30 (include)
    ALSF30L2 (include)
    {CODEs}ALFCF5
    End of life
    Quick connection kit 2 spigots, 4 pins, 4 safety springs for ALH32/ALS32 Series
    ALSF30 (optional)
    {CODEs}ALSF30L2090H
    End of life
    2-way L corner for ALSF30 Series, tube 50x2mm, ALFCF5 included, 90°, Horiz.
    ALSF30 (optional)
    {CODEs}ALSF30L2090V
    DISCONTINUED
    *2-way L corner for ALSF30 Series, tube 50x2mm, ALFCF5 included, 90°, Vert.
    ALSF30 (optional)
    {CODEs}ALSF30L3H
    DISCONTINUED
    *3-way L corner for ALSF30 Series, tube 50x2mm, ALFCF5 included, Horiz.
    ALSF30 (optional)
    {CODEs}ALSF30L3V
    DISCONTINUED
    *3-way L corner for ALSF30 Series, tube 50x2mm, ALFCF5 included, Vert.
    ALSF30 (optional)
    {CODEs}ALSF30T3H
    DISCONTINUED
    *3-way T joint for ALSF30 Series, tube 50x2mm, ALFCF5 included, Horiz.
    ALSF30 (optional)
    {CODEs}ALSF30T3V
    DISCONTINUED
    *3-way T joint for ALSF30 Series, tube 50x2mm, ALFCF5 included, Vert.
