ALSQ30
ORDER CODE: ALSQ30
Share me

Immagine Principale
  • ALSQ30
  • ALSQ30
  • ALSQ30
    • Code Tube (mm) Diagonal (mm) W (cm) H (cm) D (cm) Weight (kg) Volume (mc) Avail.
    ALSQ30050 50x2 20x2 50 29 29 3,50 0,042
    ALSQ30100
    		 50x2 20x2 100 29 29 5,60 0,084
    ALSQ30150 50x2 20x2 150 29 29 8,30 0,126
    ALSQ30200
    		 50x2 20x2 200 29 29 10,60 0,168
    ALSQ30250 50x2 20x2 250 29 29 12,80 0,210
    ALSQ30300 50x2 20x2 300 29 29 14,20 0,252
    ALSQ30350 50x2 20x2 350 29 29 17,50 0,294
    ALSQ30400 50x2 20x2 400 29 29 18,60 0,336
    ALSQ30450
    		 50x2 20x2 450 29 29 20,90 0,378
    ALSQ30500
    		 50x2 20x2 500 29 29 23,0 0,421

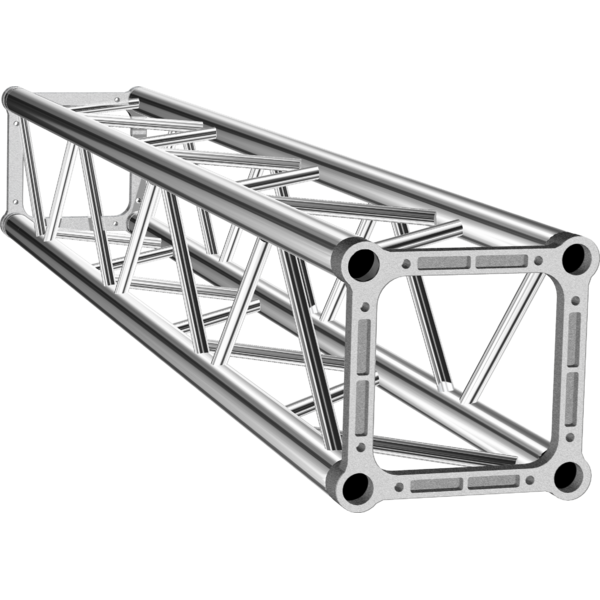

    Square sectionaluminium truss with 29 cm long sides.
    • Lengthwise: extruded tubes, Ø 50x2 mm 6082 T6.
    • Diagonal: extruded tubes, Ø 20x2 mm 6082 T6.
    • Plate: cast aluminium plate.
    • kit Fast Connection ALFCQ5 included.
    ITEMS REF.
    Accessory Code
    Description
    ALSQ30 (optional)
    SQ30 (optional)
    ST30 (optional)
    {CODEs}TCQ30
    Flexible truss cover, for triangle/square section 29cm
    ALSQ30 (include)
    ALSQ30L2090 (include)
    ALSQ30L3 (include)
    ALSQ30T3 (include)
    ALSQ30T4 (include)
    ALSQ30X4 (include)
    {CODEs}ALFCQ5
    End of life
    Quick connection kit 4 spigots, 8 pins, 8 safety springs for ALH34/ALS34 Series
    ALSQ30 (optional)
    {CODEs}ALSQ30L2090
    End of life
    2 way 90° corner for ALSQ Series.
    ALSQ30 (optional)
    {CODEs}ALSQ30L3
    End of life
    3-way L corner for ALSQ30 Series, tube 50x2mm, 2x ALFCQ5 included
    ALSQ30 (optional)
    {CODEs}ALSQ30T3
    End of life
    3-way T joint for ALSQ30 Series, tube 50x2mm, 2x ALFCQ5 included
    ALSQ30 (optional)
    {CODEs}ALSQ30T4
    End of life
    4-way T joint for ALSQ30 Series, tube 50x2mm, 2x ALFCQ5 included
    ALSQ30 (optional)
    {CODEs}ALSQ30X4
    End of life
    4-way X joint for ALSQ30 Series, tube 50x2mm, 2x ALFCQ5 included
    ALSQ30 (optional)
    {CODEs}ALSQ30FP
    DISCONTINUED
    *Aluminum floor plate for square section trusses ALS34/ALH34 series
    ALSQ30 (optional)
    {CODEs}ALSQ30K8
    DISCONTINUED
    *6 way DADO module, ALSQ30 Series compatible2x ALFCQ5K8 included
