ANTAF3E
ORDER CODE: ANTAF3E
Share me

Immagine Principale
  • ANTAF3E
  • ANTAF3E
  • ANTAF3E
  • ANTAF3E
  • ANTAF3E

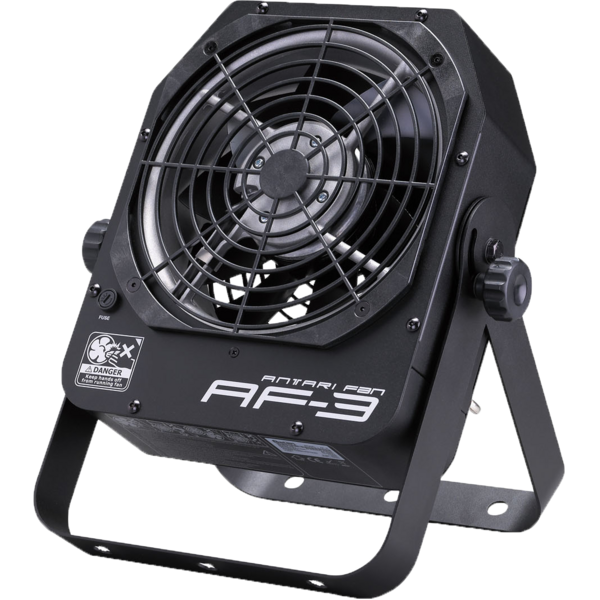

  • The AF-3 is a mini but all-purpose stage fan features 4 control options, linear output control, low power consumption, adjustable blowing directions, durable metal housing. In addition to the onboard DMX control and the manual knob, wire and wireless controllers are optional to cope with diverse needs. The attached bracket enables various output directions within 90 degrees while hanged or placed on the floor. Solid and handy design allows an easy carry.

    Features:
    Power: 230V
    Power consumption: 130W
    Maximum airflow: 900m3/hr, 530CFM (50Hz), 1020m3/hr, 600CFM (60Hz)
    Fan speed: 750~2550 rpm (50Hz), 750~2800 rpm (60Hz)
    Powercon output included
    Optional remotes: Z-3 remote
    Control: DMX and rotary knob
    DMX Mode: 1 channel (0-100% volume level), 2 channel (0-100% volume level, on/off)
    Weight: 6 kg
    Dimensions (WxH): 333x370 mm

    ITEMS REF.
    Accessory Code
    Description
    ANTAF3E (optional)
    ANTIP1000E (optional)
    ANTAF5RE (optional)
    ANTSW250E (include)
    ANTF1E (optional)
    ANTM4E (optional)
    ANTHZ350E (include)
    ANTW508E (include)
    ANTW510E (include)
    ANTW530DE (include)
    ANTFT100E (include)
    ANTW515DE (include)
    wireless remote control, dist.50m, freq.315/433MHz, wireless ON/OFF
    ANTAF3E (optional)
    ANTZ350E (optional)
    ANTZ390E (optional)
    ANTZ380E (optional)
    ANTFT200 (optional)
    ANTFT100E (optional)
    Remote control, 3m cable, 1/4 jack stereo, volume, ON/OFF

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Catalogues

    #0Not available

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    Tech Docs

    Antaf3e_USER_MANUAL_EN.pdfDownload
