ANTCH1E
ANTARI

ANTCH1E

ORDER CODE: ANTCH1E

The CO2 model produces high volume of fine haze smoothly with little working sound, comes with an adjustable fan to bring the haze in different angle. Equipped with color touch panel for intuitive operation , Connected with a CO2 gas bottle, mixing the gas and liquid together to provide a longer hanging time.

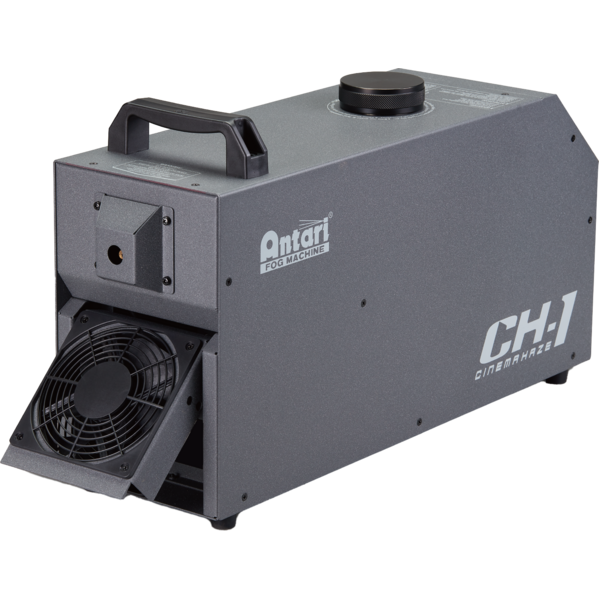

Antari brand new CH-1 is a slim and compact haze machine with below specialties:

  • Long hanging time
  • Little working sound
  • Low fluid consumption
  • Ease operation by using color touch panel
  • Adjustable fan

Main features:

  • Input voltage: AC 100-240V, 50/60HZ 6A
  • Rated power: 120V 700W - 240V 1250W
  • Warm-up time 8 minutes (approx)
  • Fluid consumption: 2 ml/min @40 psi / 2.76 bar
  • Fluid tank capacity: 2.5 Liters (0.66 gallon)
  • Compatible fluid: Antari CHL-2 Haze Fluid
  • Gas type: CO2 , N2
  • Gas pressure range: 50 - 60psi / 3.4 bar - 4.1bar
  • Gas consumption: 0.36 Kg / hr @ 40 psi - 0.18 Kg / hr @ 20psi
  • Control interface TFT LCD Touch Screen
  • Ambient temp / range: 0°C - 40°C (32°F - 104°F)
  • Control Manual , Timer , DMX 512
  • Wireless DMX (Optional)
  • DMX channels 1 / 3 / 5 Channels
  • Connection: Neutirk TRUE 1 Connector (Power) - XLR 3-pin and 5-pin (DMX) - 9/16 -18 R.H (Gas inlet)
  • Optional Accessories: W-DMX-PCBR
  • Dimension: L 579 W 164 H 311 mm (L 22.79 W 6.46 H 12.25 inch)
  • Weight: 17 kg (37.48 lbs)

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

ANTCHL2
ANTCHL2
(Optional)
High quality oil based liquid for CH-1, 2L tank
ANTFCH1
ANTFCH1
(Optional)
Flight Case for CH-1
ANTCRMXPCBR
ANTCRMXPCBR
(Optional)
ANTARI kit with CRMX PCB and CRMX receiver
