ANTDNG200FE
ANTARI
discontinued

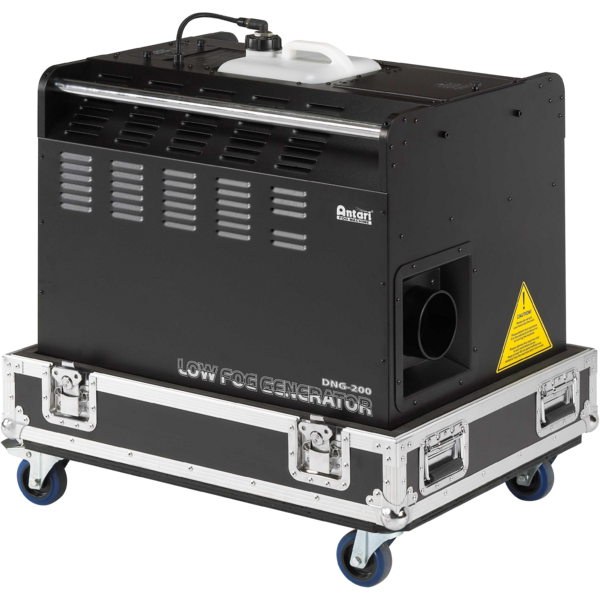

DNG-200 LOW FOG MACHINE

ORDER CODE: ANTDNG200FE

DNG-200 low fog generator is the complete ground fog effect solution from a fully self-compacted unit with wheels, handles and flight-case to stand against tough transport. The units employ the traditional fog liquid, the effects produced is virtually indistinguishable from that is created by dry ice avoiding any risks or damage to the human health and environment. It is operator-friendly as there are no external controls to the machine. Simply plug the unit and place the 3M fog conducting hose (for remote dispersion) and operate it like a normal fog machine. With powerful compressor and aluminium heater block, 3 variable fog output can be selected from a tiny cloud to the thickest fog. It is fully controllable via an LCD DMX 512 controller allowing the operator to set the volume control and timing precisely. Electricity is saved due to the highly efficient power control system and superior ventilation, thus permitting the fogger to operate at optimal low-level temperature. DNG-200 is an impressive effect for theatrical and studio applications where noise level should be minimized and environment/health issues are concerned.


Caratteristiche principali:

  • Power: AC 220-240V 50/60 Hz
  • Refrigerant: R-404A, 1.98LB
  • Rated current: 2,53-6,26A
  • Start current: 21A
  • Heater: 2500W
  • Output: 12000 cu.ft/min
  • First heat-up time: 12 min
  • Tank capacity: 10 litres
  • Fluid consumption rate: 11 min/litre (high output)
  • Noise level: 54dB @5m
  • Control: DMX, on-board control panel, timer mode, volume mode
  • DMX mode: 1 channel (fog output)
  • Remote included: D-20 control module
  • Accessories included: 3M fog conducting hose
  • Optional accessories: FDNG-200 flight case
  • Weight: 120 kg
  • Dimensions (WxHxD): 608x715x780 mm
  • Liquid used: Antari FLC water-based fluid
