F-1 FAZER
ORDER CODE: ANTF1E
Share me

Immagine Principale
  • ANTF1E
  • ANTF1E
  • ANTF1E
  • ANTF1E
  • ANTF1E
  • ANTF1E

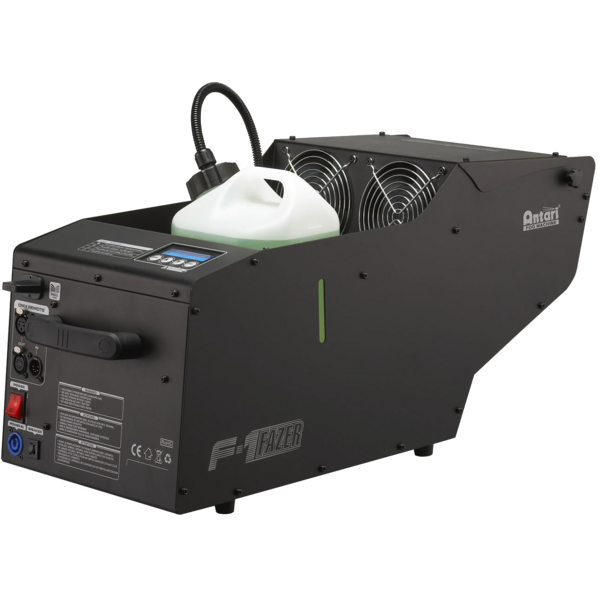

  • A complete makeover of X-310, F-1 Fazer equip with new technology and features from the F-Series family. The air pump system enhances and smoothes the mixture of fog liquid and air to produce fine, dry fog with minimal fluid consumption. Also, enable the machine with a self-cleaning function to extend the lifespan of heater elements. Smart auto-sensing frequency feature allows the machine to self-adjust to the local frequency without the hassle to change any setting.



    Features:
    3 DMX Control Mode
    Fog volume with fan at 100%
    Fog and fan volume control
    Fog and fan sync mode
    Larger tube diameter
    Built-in air pump with self-cleaning function
    Highest fog quality: dry and pure
    Power: 230V
    Power consumption: 700W
    First Heat-up Time: 5 min
    Tank capacity: 2,4 litres
    Fluid consumption rate: 8,5 ml/min
    Control: DMX, W-DMX (optional), onboard control panel, wireless remote
    Optional remotes: W-1 wireless remote
    Weight: 14,1 kg
    Dimensions (WxHxD): 275x286x608 mm
    Liquid used: Antari FLG liquid

    ITEMS REF.
    Accessory Code
    Description
    ANTF1E (optional)
    ANTZ390E (optional)
    ANTZ350E (optional)
    ANTZ380E (optional)
    ANTF4 (optional)
    ANTF5DE (optional)
    ANTF7E (optional)
    ANTW530DE (optional)
    ANTIP1000E (optional)
    ANTWIFI800E (optional)
    ANTW515DE (optional)
    ANTW510E (optional)
    ANTW508E (optional)
    H100F (optional)
    GH080F (optional)
    High-Density FOG/FAZE machine fluid, water-based, 5L tank
    ANTF1E (optional)
    ANTAF3E (optional)
    ANTIP1000E (optional)
    ANTAF5RE (optional)
    ANTSW250E (include)
    ANTM4E (optional)
    ANTHZ350E (include)
    ANTW508E (include)
    ANTW510E (include)
    ANTW530DE (include)
    ANTFT100E (include)
    ANTW515DE (include)
    wireless remote control, dist.50m, freq.315/433MHz, wireless ON/OFF
    ANTF1E (optional)
    ANTF5DE (optional)
    ANTF7E (optional)
    ANTM4E (optional)
    ANTM7RGBAE (optional)
    ANTW515DE (optional)
    ANTW530DE (include)
    ANTARI kit with WDMX PCB and WDMX receiver

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Catalogues

    #0Not available

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    Tech Docs

    Antf1e_USER_MANUAL_EN.pdfDownload
