ANTF2E
ANTARI

ANTF2E

ORDER CODE: ANTF2E

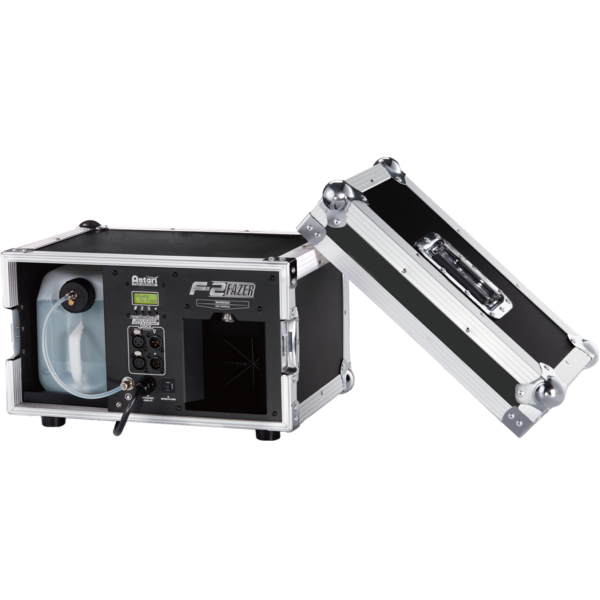

F-2 is a compact fazer with flightcase. It's convenient for transportation and stacking.
It takes only 1 minute to warm up and produce high quality faze effect instantly.
Equipped LCD screen for easier control.

Main features:

  • Input voltage: US model AC 100-120V, 50/60Hz, EU model AC 220-240V, 50/60Hz
  • Rated power: 120V 1000W - 240V 1500W
  • Warm-up time: 1.5 minutes (approx)
  • Fluid consumption: 6.5 ml/min
  • Fluid tank capacity: 5 Liters (1.32 gallon)
  • Ambient temp/ range: 0°C - 40°C (32°F - 104°F)
  • Control: Manual, DMX 512
  • DMX channels 2 channels
  • Connection XLR 3-pin and 5-pin (DMX)
  • Dimension: L 424.1 W 399 H 267.1 mm, (L 16.7 W 15.7 H 10.5 inch)
  • Weight: 14.7 kg (32.4lbs)

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

ANTFLG5
ANTFLG5
(Optional)
High-Density FOG/FAZE machine fluid, water-based, 5L tank
