ANTF4
ORDER CODE: ANTF4
Share me

Immagine Principale
  • ANTF4
  • ANTF4

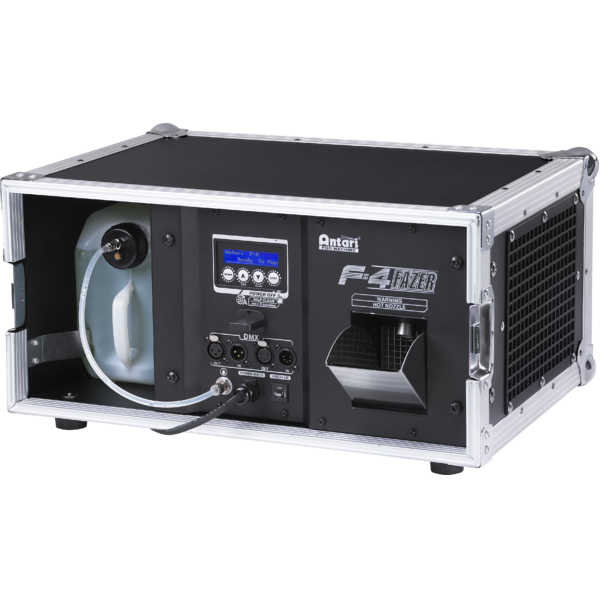

    • F-4 the fazer is with only 1 minutes first heat-up time which makes practically no waiting before using.

    The large heater tube reduces remarkably the chance of heater clog. The quick connecting design between the fluid tube and the tank saves time while changing the fluid tank.

    The most splendid feature of F-4 is that now it can be controlled with multiple languages! It is always our goal to make our products as user-friendly as possible to every user around the world.

    ELECTRICAL
    • Power Supply:
      US model AC 100-120V, 50 / 60Hz 12.5A - EU model AC 220-240V, 50 / 60Hz 6.3A
    • Power Consumption (at 230V):
      1450
      W
    FLUID
    • Operating Time:
      12 hrs at max. output
    • Ambient temp. range:
      0°C - 40°C (32°F-104°F)
    • First Heat-up Time:
      1 minutes (approx.)
    • Output:
      5,000 ft³/min (142 m³/min)
    • Tank Capacity:
      5
      L
    • Fluid Consumption Rate:
      6.7
      ml/min
    • Liquid Used:
      Antari FLG-5E Heavy Fog Fluid
    CONTROL
    • Control units:
      DMX512, Timer, Manual - Wireless DMX (Optional)
    • DMX Channels:
      2
    PHYSICAL
    • Signal connection:
      XLR 3p + 5p IN/OUT connectors
    • Dimensions (WxHxD):
      545x285x458
      mm
    • Weight:
      20.3
      kg
    ITEMS REF.
    Accessory Code
    Description
    ANTF4 (optional)
    ANTZ350E (optional)
    ANTZ380E (optional)
    ANTF1E (optional)
    ANTF5DE (optional)
    ANTF7E (optional)
    ANTW530DE (optional)
    ANTIP1000E (optional)
    ANTWIFI800E (optional)
    ANTW515DE (optional)
    ANTW510E (optional)
    ANTW508E (optional)
    H080F (optional)
    H100F (optional)
    GH080F (optional)
    H300F (optional)
    {CODEs}ANTFLG5
    High-Density FOG/FAZE machine fluid, water-based, 5L tank

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Catalogues

    #0Not available

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    Tech Docs

    Antf4_USER_MANUAL.pdfDownload
