ANTF5DE
ANTARI
end of life

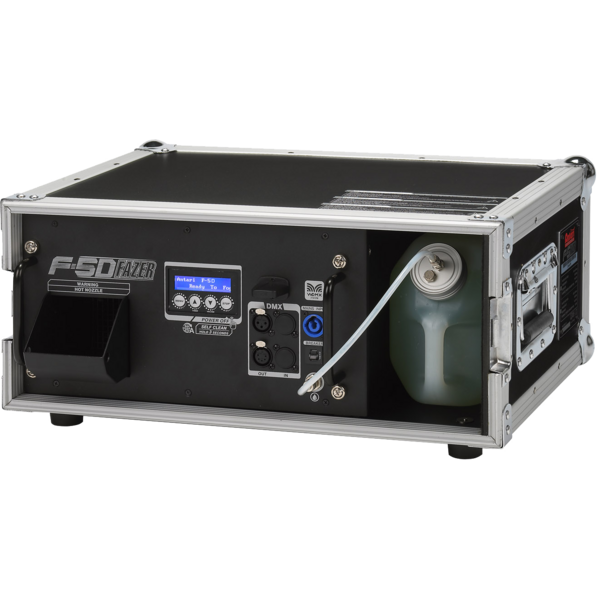

F-5D FAZER

ORDER CODE: ANTF5DE

The new stackable F-5D Fazer integrates the features of a rugged flight case in its new packable design. The state-of-the-art air pump system mixes fog and air to produce a fine, dry fog with minimal fluid consumption, for example, one-litre fog liquid will provide two hours of continuous fogging. Performance meets reliability in this new design: the extremely dry fog output leaves no residue, and no liquid is left inside the heater, achieving a longer life cycle for this critical component. The F-5D also features built-in DMX functionality and silent operation, making it suitable for the widest variety of theatrical and stage applications.


Main features:

  • Built-in wireless DMX receiver
  • Larger heater tubing reduces the risk of heater clogging.
  • Even quieter than the original F-3. Perfect for venues where silence is golden.
  • Multi-languages control interface available.
  • Power: 230V
  • Power consumption: 850W
  • Output: 3000 cu.ft/min
  • First heat-up time: 4 min
  • Tank capacity: 2,8 liters
  • Fluid consumption rate: 2 hr/liter (100% output)
  • Noise level: 42dB @5m
  • Control: DMX, on-board control panel, timer mode, volume mode, wireless DMX reciver on board
  • DMX Mode: 2 channels (one for fog output; one for fan output)
  • Weight: 22,9 kg
  • Dimensions (WxHxD): 465x225x535 mm
  • Liquid used: Antari FLG liquid

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

ANTFLG5
ANTFLG5
(Optional)
High-Density FOG/FAZE machine fluid, water-based, 5L tank
ANTWDMXR
ANTWDMXR
(Optional)
ANTARI WDMX receiver

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualAntf5de_USER_MANUAL_EN.pdf643KB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
