ANTF6
ANTARI

ANTF6

ORDER CODE: ANTF6

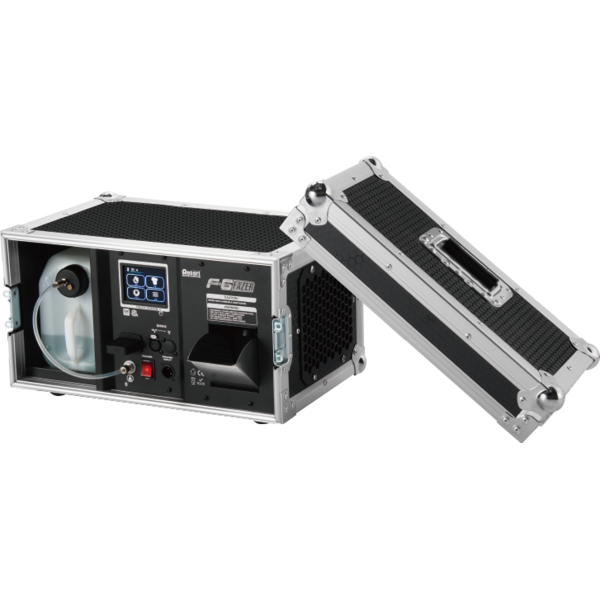

The F6 Fazer has been upgraded with exceptional features to provide even better fog effects for any event. The upgraded TFT LCD touch screen make it incredibly easy to control and adjust the settings of the machine while the new Honeycomb Style Fly Case offers better water resistance and durability.

With double output, F6 can provide more fog coverage for larger venues an d the built in voltage protection ensures longevity and safety.
The new F6 Fazer highlights every moment with the powerful lighting and stage effect creating a captivating stage atmosphere.

Features:

  • Upgraded TFT LCD Touch Screen for Easy Control
  • New Honeycomb Style Fly Case for better water resistance and durability
  • Double Output for More Fog Coverage
  • Built in Voltage Protection for Longevity and Safety


Specification:
Input Voltage: AC 220 240V, 50 / 60Hz 6.3A
Rated Power: 1450 W
Warm-up Time: 1 minute (approx.)
Fluid Consumption: 12 ml/min
Fluid Tank Capacity: 5 Liters (1.32 gallon)
Compatible Fluid: Antari FLG 5E Heavy Fog Fluid
Operating Time: 7 hrs at max. output
Ambient Temp Range: 0°C-40°C (32°F - 104°F)
Control Methods: Manual, DMX512, Timer, Wireless DMX (Optional)
DMX Channels: 2 Channels
Connection: XLR 5-pin (DMX)
Optional Accessories: TIMO-W-DMX-PCBR (Wireless DMX)
Dimension: L493 W424 H269 mm (L19.4 W16.69 H10.59 inch)
Weight: 16.8 kg (37.03 lbs)

Main features:

    {DESC_CARATTERISTICHE}

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

ANTFLG5
ANTFLG5
(Optional)
High-Density FOG/FAZE machine fluid, water-based, 5L tank
ANTESWDMX
ANTESWDMX
(Optional)
ANTARI ES-W-DMX Wireless DMX

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetAntf6_A4_DATASHEET.pdf5MB

User manual

File name File size Download
User manualAntf6_USER_MANUAL.pdf981KB
User manualAntf6_Fog_Fluid_Guide.pdf3MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
