ANTM10
ANTARI

ANTM10

ORDER CODE: ANTM10

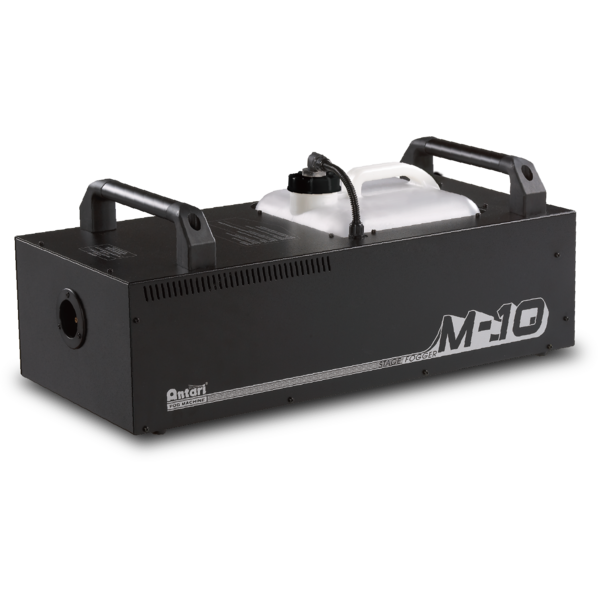

This high performance heavy-duty M-10 Stage Fog Machine from Antari are uniquely designed to meet the rigorous demands of stage and touring use: a high-capacity 10 liter tank offers long time operation. A rectangular, durable sleek housing design makes the Antari M-Series Stage Fog Machine easy to carry and be able to stand with tough road transport (Anti-shock) where custom flightcases come optional for your application. Due to its enhanced heat reservation structure, it reduces electricity consumption for about 20 ~ 25% yet producing more powerful fog.
They will stand the rigors of professional use as well as protection against unexpected water spills and changing weather conditions. There are 2 professional choices M-5 (1500W) and M-10 (3000W). They have DMX on-board and can be controlled remotely with a digital M-20 LCD display module, enabling convenient remote operation. DMX connection can be worked by either 3 or 5 pin connector.
The Antari M-Series Stage Fogger are ideal for large concerts, movie production, fire training purpose and especially for touring applications, as well as any venue where ultimate performance, ease of use and dependability are specified. It is the most powerful single heater-block fog machine available on the market.

Specifications:
Rated Voltage: EU Model : AC 220 - 240V, 50/60 Hz 12.5A
Rated Power: 3000 W
Warm-Up Time: 9,5 minutes (approx.)
Fluid Consumption: 250 ml/min (100% Output)
Compatible Fluid: Antari FLG Heavy Fog Fluid, Antari FLR Light Fog Fluid, Antari FLH Super Fog Fluid
Ambient Temp. Range: 0℃ -  40℃ (32℉ - 104℉)
Control Methods: Manual, Timer, DMX512, Wireless (Optional)
DMX Channels: 2 Channels
Interface: Neutrik PowerCon (Power)、XLR 3-pin & 5-pin (DMX)
Included Accessories: M-20 Control Module
Optional Accessories: M-30 Pro Wireless Control Module
Dimension: L 697 W 319 H 300 mm (L 27.44 W 12.56 H 11.82 inch)
Weight: 21 kg (46.30 lbs)

Main features:

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

ANTFLG5
ANTFLG5
(Optional)
High-Density FOG/FAZE machine fluid, water-based, 5L tank
ANTFLR5
ANTFLR5
(Optional)
Low-Density FOG/FAZE machine fluid, water-based, 5L tank

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetAntm10_A4_DATASHEET.pdf19MB

User manual

File name File size Download
User manualAntm10_USER_MANUAL.pdf981KB
User manualAntm10_Fog_Fluid_Guide.pdf3MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
