M-4
ORDER CODE: ANTM4E
Condividimi

Immagine Principale
  • ANTM4E
  • ANTM4E
  • ANTM4E
  • ANTM4E

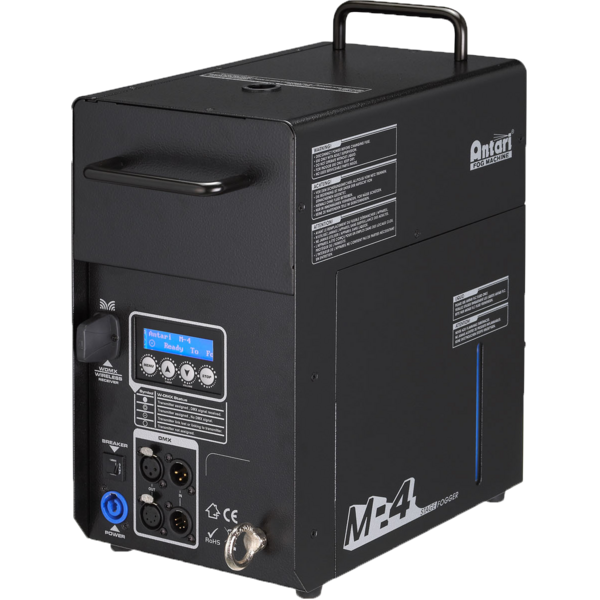

  • M-4 is the new fog machine by Antari able to emit a high-pressure vertical jet, simulating the special effect that until today has been achievable only with CO2 based machine. The special design of the pump and heater allows an instant emission of start and stop, with a jet which reaches a considerable height, and through the use of specific liquids also the fading is almost immediate in the environment. The positioning of the tank inside the machine is fitted for both applications with emission upwards or downwards thereby allowing the assembly both from the ground in suspension. Built-in wireless DMX make it complete wire free to save the hassle of cables.



    Features:
    Optional W-DMX or wireless remote available
    New structure design for multiple angle rigging
    Fluid tank compartment for ease of transportation
    Solid sturdy structure of machine body convenient for transportation
    Huge output volume
    Power: 230V
    Breaker: AC-230V, 7A/250V
    Power consumption: 1500W
    Fog output: height 5 m, width 1 m
    First heat-up time: 5 min
    Tank capacity: 2,4 litres
    Fluid consumption rate: 150 ml/min
    Control: DMX, W-DMX (optional), onboard control panel, W-1 wireless remote (optional)
    Optional remotes: W-1 wireless remote
    Weight: 11 kg
    Dimensions (WxHxD): 193x345x385,7 mm
    Liquid used: Antari FLC water-based fluid

    CODICE PRODOTTO
    Codice Accessorio
    Descrizione
    optional
    Liquido per FOG machine, water-based, rapida dissipazione, tanica 5L
    optional
    Telecomando wireless, dist.50m, freq.315/433MHz, Wireless ON/OFF
    optional
    Ricevitore ANTARI WDMX
    optional
    Kit ANTARI con scheda WDMX e ricevitore WDMX

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manual Antm4e_USER_MANUAL_EN.pdf 697KB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
