ANTZ350E
ANTARI
end of life

ANTZ350E

ORDER CODE: ANTZ350E

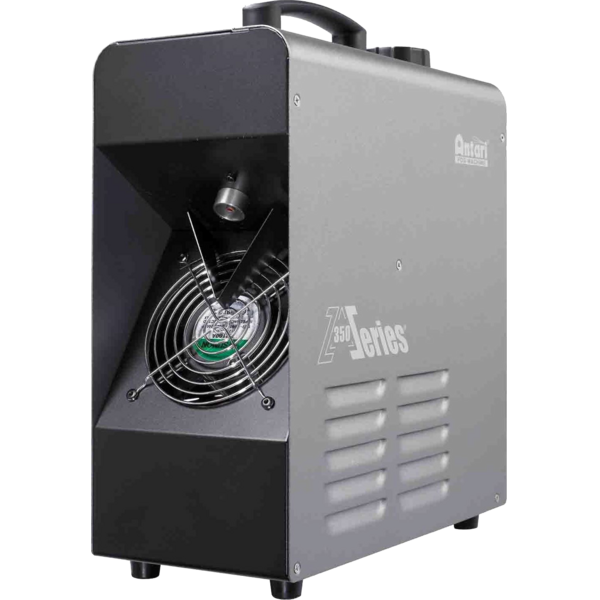

The Z-350 is the latest creation from Antari stemming from years of experience in Fazer development. The adoption of the air pump technology not only enables the Z-350 to generate dry haze but also provides its heater with a self-cleaning function. The Z-350 comes with a larger tube of one diameter, which substantially reduces the risk of heater clogging. An extremely low fluid consumption rate grants a full tank (1.3 litres) of the Z-350 to produce more than 7 hours of non-stop hazing at maximum output. The new onboard DMX interface allows users smarter control of the Z-350: When a DMX signal is received, the machine powers up and starts heating up automatically. When the DMX signal is off, it automatically begins the self-cleaning process and then goes into “Sleep” mode. The machine weighs only 8.7 kg. Being so light and compact allows the Z-350 to be transported and set up anywhere—whenever needed.


Caratteristiche principali:

  • Power: 230V
  • Power consumption: 700W
  • First heat-up time: 4 min
  • Tank capacity: 1.3 litres
  • Output: 3.000 cu.ft/min
  • Fluid consumption rate: 3 ml/min @ full
  • Control: rotary knob, DMX, Z3 remote (optional)
  • Weight: 8.7 kg
  • Dimensions (WxHxD): 153x391x320 mm
  • Liquid used: Antari FLG liquid

PHOTO GALLERY

Specifiche tecniche

Varianti

Accessori e prodotti correlati

ANTFLG5
ANTFLG5
(Opzionale)
Liquido per FOG/FAZE machine, water-based, alta densità, tanica 5L
ANTZ3
ANTZ3
(Opzionale)
Telecomando, cavo 3m, 1/4 jack stereo, Volume, ON/OFF

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualAntz350e_USER_MANUAL_EN.pdf2MB
User manualAntz350e_Fog_Fluid_Guide.pdf3MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
