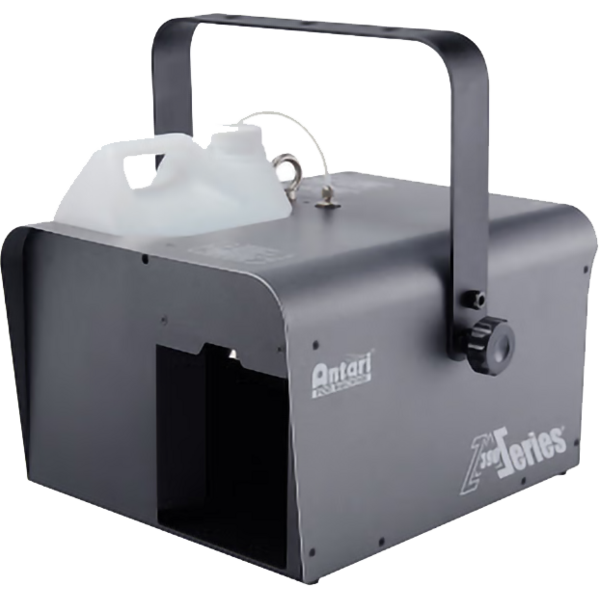

ANTZ390E
ORDER CODE: ANTZ390E
Share me

Immagine Principale
  • ANTZ390E
  • ANTZ390E
  • ANTZ390E
  • Compare to its predecessor ANTZ380E, the primary improvements and differences can be seen on ANTZ390E are :

    •  ANTZ390E comes with a 4-Liter fluid tank which helps reducing the times of refilling. Better for operations when the machine is rigged up in a higher location where refilling is more time-consuming.
    • Due to the larger fluid tank, the ANTZ390E’s body is slightly bigger.
    •  ANTZ390E’s haze output is raised approximately 30% higher.
    Features:
    Input voltage: AC 220-240V, 50/60Hz - 6.5A.
    Rated power: 1000W @120V - 1450W @240V.
    Warm-up time: 1.5 minutes (approx).
    Fluid consumption: 8 ml/min.
    Fluid tank capacity: 4 liters (1.06 gallon).
    Compatible fluid: Antari FLG- 4 Heavy Fog Fluid.
    Operating time: 8 hours at max. output.
    Ambient temperature range: 0°C - 40°C (32°F - 104°F).
    Control: Manual, DMX 512, Timer, Wireless (Optional).
    DMX channels: 2 channels.
    Power connection: IEC.
    DMX connection: XLR 3-pin and 5-pin.
    Dimension (LxHxW): 368x267.4x277.7 mm (14.49x10.53x10.93 in).
    Weight: 9.45 kg (20.83 lb).

    ITEMS REF.
    Accessory Code
    Description
    ANTZ390E (optional)
    ANTZ350E (optional)
    ANTZ380E (optional)
    ANTF4 (optional)
    ANTF1E (optional)
    ANTF5DE (optional)
    ANTF7E (optional)
    ANTW530DE (optional)
    ANTIP1000E (optional)
    ANTWIFI800E (optional)
    ANTW515DE (optional)
    ANTW510E (optional)
    ANTW508E (optional)
    H100F (optional)
    GH080F (optional)
    High-Density FOG/FAZE machine fluid, water-based, 5L tank
    ANTZ390E (optional)
    ANTZ350E (optional)
    ANTAF3E (optional)
    ANTZ380E (optional)
    ANTFT200 (optional)
    ANTFT100E (optional)
    Remote control, 3m cable, 1/4 jack stereo, volume, ON/OFF

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Catalogues

    #0Not available

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    Tech Docs

    Antz390e_USER_MANUAL.pdfDownload
