ARCFLOOD40
ARCHWORK

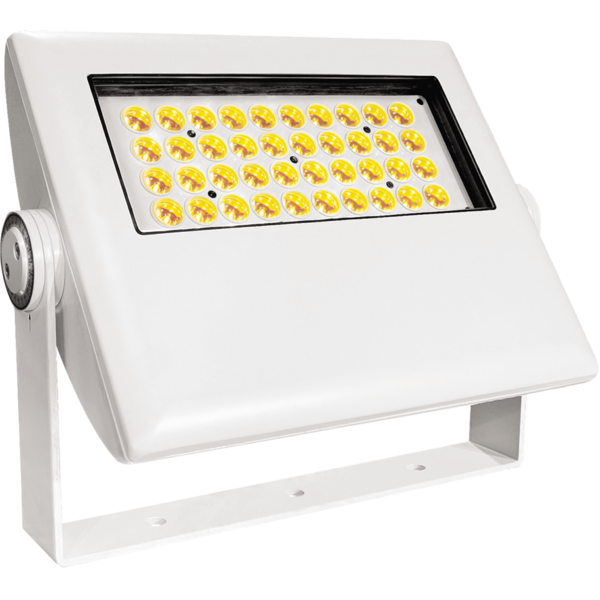

ArcFlood 40

40x3W outdoor compact LED source

ArcFlood 40 is a LED luminaire conceived for architectural lighting projects of building facades and accent lighting, thanks to its high luminous output and versatility allowed by the design of the external structure. The light-source employs 40 high power 3W CREE LED, granting astonishing performance even for long-throw projection, representing a green replacement to the traditional discharge lamp outdoor projectors. ArcFlood 40 has been designed with the innovative screw-less design for the frontal panel, which allows an IP66 protection rate for outdoor lighting projects. The wide range of accessory optics allows passing from a 6° narrow beam to 55° flood diffusion, providing the lighting designer with an indispensable tool for his projects.

Main features:

  • 40x3W CREE LEDs
  • Beam angle 12°
  • IP66 rating for outdoor installations

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 40x3W CREE LEDs
  • Luminous flux: (CW) 4'300 lm - WW @full 3'200
  • Lux: 12° @full CW 17'277 lx - WW 12'703lx
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 12°
  • Additional optics: 6° - 30° - 55° optional
COLOUR SYSTEM
  • White presets: 3.200 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built macros with adjustable speed
DYNAMIC EFFECTS
  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
BODY
  • Body: sturdy die-cast aluminium body
  • Body colour: white
CONTROL
  • Protocols: DMX512
  • Display: user interface through ARCMAT external coder
ELECTRONICS
  • Operating temperature: -40° ~ +45° Ta
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 115W
PHYSICAL
  • IP rating: IP66 for outdoor installations
  • Cooling: natural convection cooling enabled by a fanless design and a chassis engineered for passive heat dissipation
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: moulded IP signal IN connector
  • Power connection: moulded IP signal IN/OUT connectors
  • Dimensions (WxHxD): 370x350x89mm / 14.57''x13.78''x3.5''
  • Weight: 8,5kg / 18.74lbs

Versions

Code
Color synthesis
ARCFLOOD40CW
ARCFLOOD40CW (END OF LIFE)
Cool White
ARCFLOOD40WW
ARCFLOOD40WW (END OF LIFE)
Warm White

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download
    Letter datasheetArcflood40_A4_DATASHEET.pdf360KB

    User manual

    File name File size Download

    DMX chart & personalities

    File name File size Download

    CAD symbols & drawings

    File name File size Download
    2DArcflood40_CAD_2D.dwg388KB
    Technical drawingArcflood40_TECHNICAL_DRAWING.pdf138KB

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
