ARCLED7337VW
PROLIGHTS

ARCLED7337VW

Main features:

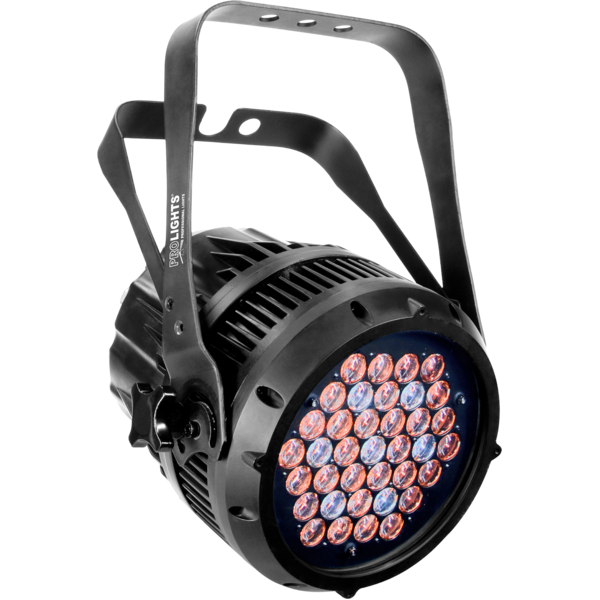

    ARCLED7337VW is a LED projector in Variable White version conceived for a linear reproduction of the entire range of white variants.
    The light source is composed by 37x3W WarmWhite and ColdWhite LEDs granting a precise white temperature adjustment, for a gradual passage between warm and cold tones by keeping a high luminous efficiency all over the white range.
    ARCLED7337VW features the new 8°-40° fast zoom technology allowing to change the projection angle between a narrow tight spot and a soft flood diffusion, making this fixture an outstanding versatile tool for all white-light projects.
    ARCLED7337VW is built in a compact and stylish aluminium waterproof case (IP67) allowing a natural convection cooling system for totally silent performance and even outdoor lighting projects.
    This compact-size luminaire is the ideal choice to replace traditional halogen luminaires in theatres, live, architectural, TV studios and showrooms, reducing energy consumption and allowing a full temperature control.


    Light source and optics
    • 37 x 3W high-efficiency CREE Variable White LEDs (30 WarmWhite, 7 ColdWhite)
    • Lumens: 2280
    • Lux: 3300@5m
    • Energy-saving LEDs employed, with more vivid colours and lower power consumption than traditional lamps
    • Colour synthesis: Variable White for a full white temperature control
    • White temperature presets: 3200K~10000K
    • Beam angle: 8°-40° Zoom
    • Electronic linear zoom with motorized and scrolling lens panel
    • LEDs average life span: >50'000 h

    Electronics and features
    • Several DMX selectable configurations (1,3, 4 channels) for advanced or basic controlling
    1 channel: Master dimmer
    3 channels: dimmer, Warm+Cold White, Zoom
    4 channels: dimmer, WarmWhite, ColdWhite, Zoom
    • LED display user interface for auto programs execution, static colour mode, creation of custom shows, colour calibration presets
    • 5 different dimming available curves
    • Master/Slave mode for stand-alone operations
    • Linear and “stepless” transition between DMX values
    • Flicker-free operations (400Hz)
    • Silent operations, due to natural convection cooling of the peculiar chassis and to absence of fans

    Structure and Power supply
    • Sturdy die-cast aluminium body conceived for long-time durability and demanding applications
    • Frontal tempered glass panel
    • Internal Protection: IP67 (IP) - IP54 (TZ)
    • Pressure and temperature balance through GORE membrane vents
    • Power (shuko) and data (xlr-3p) adapter cables included
    • Double hanging bracket suitable for safe hanging and for floor positioning
    • Power unit: 100-240V 50/60Hz
    • Working temperatures: -40/45°
    • Power output to link more units in a chain: up to 12 fixtures at 220V
    • Max power consumption: 100 W
    • Weight: 6,5 kg
    • Dimensions (WxHxD): 248x203x311 mm

PHOTO GALLERY

Technical specifications

Versions

Code
Connections
IP rate
ARCLED7337VWIP
ARCLED7337VWIP (END OF LIFE)
IPCON
IP67
ARCLED7337VWTZ
ARCLED7337VWTZ (DISCONTINUED)
Neutrik
IP54

Accessories & Related Products

FCL7337
FCL7337
(Optional)
Flight case for 8 pcs of ARCLED7337ZOOM, dimensions: 960x525x515 mm
ARC7337RBD
ARC7337RBD
(Optional)
Round barndoor for spot-like effect, for Arcled7337Zoom
ARCEXDC3
ARCEXDC3
(Optional)

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualArcled7337vwip_USER_MANUAL_ITEN.pdf5MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
