ARCLED7513Q2Z
ORDER CODE: ARCLED7513Q2Z
Share me

IP54

Immagine Principale
  • ARCLED7513Q2Z
  • ARCLED7513Q2Z
  • ARCLED7513Q2Z
  • ARCLED7513Q2Z
  • ARCLED7513Q2Z
  • ARCLED7513Q2Z
  • Code Power Connections Signal Connections IP rate Avail.
    ARCLED7513Q2ZIP
    IP cable IP cable IP67
    ARCLED7513Q2ZTZ
    Powercon DMX in/out IP54
    ARCLED7513Q2ZSC
    Seetronic Seetronic IP54

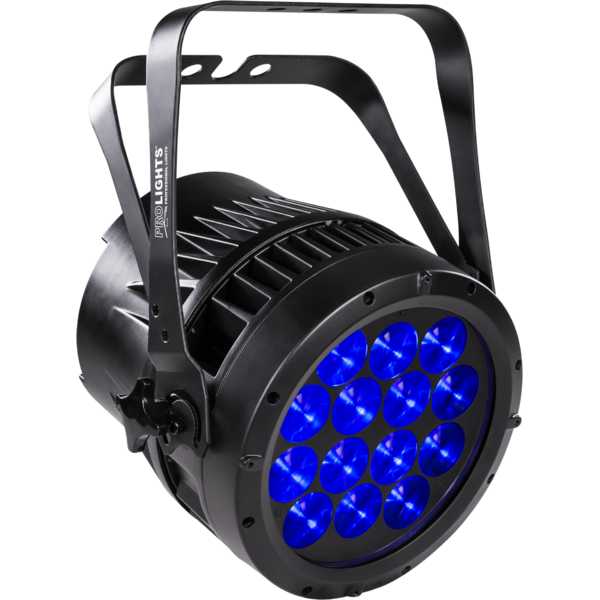

    ARCLED7513Q2Z is a new generation PAR LED zoom. Specifically designed for rental company use; a multi-purpose concept suitable for both indoor and outdoor use on stage and architectural lighting in both medium and large venues. ARCLED7513Q2Z offers unprecedented performance, employing LED 14x15 W RGBW / FC and a high efficiency 6° - 30° optical zoom system.

    Features:
    14x15 W RGBW full colour LED
    6°-30° Zoom by DMX to deliver flexibility for both architectural and stage application
    IP65 heavy duty housing, ideal for touring and long lasting architectural installation
    Superior colour mixing and advanced capabilities to emulate the entire white spectrum
    Silent operation and HD-dimming application in studio

    LIGHT SOURCE
    • Source:
      14x15
      W
      RGBW LED
    • Luminous flux:
      3'100
      lm
    • Lux:
      9'670
      lx
      @3 m
    OPTICS
    • Zoom:
      6 - 43
      °
      motorised linear zoom
    • Beam angle:
      6 - 30
      °
    • Field angle:
      11 - 43
      °
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.800 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    • Manual mode:
      manual adjustment of colour
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Body:
      sturdy die-cast aluminium body
    • Body colour:
      black
    CONTROL
    • Protocols:
      DMX512
    • DMX channels:
      3 / 4 / 5 / 6 / 7 / 12 / 17
      channel
    • Display:
      LED display user interface
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Dimmer curves:
      5
      selectable dimming modes available
    • Strobe / shutter:
      0 ~ 30
      Hz, electronic
    • Operating temperature:
      -20° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      235
      W
    • Output (at 230V):
      12
      units on a single power line
    PHYSICAL
    • IP rating:
      54
      for temporary outdoor application, not for fixed installation
    • Cooling:
      pressure and temperature balance through GORE membrane vents
    • Suspension and fixing:
      double hanging bracket suitable for safe hanging and for floor positioning
    • Signal connection:
      Amphenol XLR 3p IN/OUT connectors
    • Power connection:
      Seetronic powerCON TRUE IP65 IN/OUT
    • Dimensions (WxHxD):
      283x236x348
      mm
    • Weight:
      8,6
      kg
    ITEMS REF.
    Accessory Code
    Description
    ARCLED7513Q2Z (optional)
    ARCLED7513VWZ (optional)
    LUMIPIX12TRIIP (optional)
    LUMIPIX12QIP (optional)
    {CODEs}ARCADA1
    FINESTOCK
    Adaptor cables to link ARCLED projectors to other Prolights IP fixtures.
    ARCLED7513Q2Z (optional)
    ARCLED7513VWZ (optional)
    {CODEs}FCL7513
    DISCONTINUED
    *Flight case with internal compartments designed to contain 8 pcs ARCLED7513
    ARCLED7513Q2Z (optional)
    SOLAR (optional)
    ARCLED3109PIX (optional)
    ARCLED7513VWZ (optional)
    ARCLED3404 (optional)
    ARCLED7307HD (optional)
    LUMIPIX12QIP (optional)
    LUMIPIX12TRIIP (optional)
    ARCLED8107Q (optional)
    ARCLED7337VW (optional)
    IP67 power extension cable, compatible with outdoor (IP) ARCLED projectors
    ARCLED7513Q2Z (optional)
    ARCLED8107HD (optional)
    ARCLED3109PIX (optional)
    LUMIPIX12TRIIP (optional)
    SOLAR (optional)
    ARCLED7307HD (optional)
    ARCLED7513VWZ (optional)
    ARCLED3404 (optional)
    LUMIPIX12QIP (optional)
    ARCLED7337VW (optional)
    ARCLED8107Q (optional)
    IP67 DMX extension cable, comp. with outdoor (IP) ARCLED projectors
    ARCLED7513Q2Z (optional)
    ARCLED8107HD (optional)
    ARCLED7307HD (include)
    ARCLED3404 (include)
    CROMOWASH601 (include)
    CROMOSPOT500 (include)
    CROMOSPOT400 (include)
    CROMOSPOT300 (include)
    CROMOBEAM250 (include)
    CROMOSPOT250 (include)
    FY400S (optional)
    SPIDER (optional)
    FY400B (optional)
    EVO361PC (include)
    ARCLED338PIX (include)
    GENESIS (include)
    LUXOR (optional)
    CROMOWASH600 (optional)
    PRIME (optional)
    Z1200WASH (include)
    Z300BEAM (include)
    ARCLED7513VWZ (optional)
    EVO392FL (include)
    ARCLED7337VW (include)
    EVO190EFC (optional)
    ARCLED8107Q (include)
    {CODEs}C60
    DISCONTINUEDFINESTOCK
    *Steel security cable for hanging bodies - inox steel shackle - 60 cm L.
