ARK105MP
ORDER CODE: ARK105MP
Share me

Immagine Principale
  • ARK105MP
  • ARK105MP
  • ARK105MP
  • ARK105MP
  • ARK105MP
  • ARK105MP
  • ARK105MP
    • Code Finishing Avail.
    ARK105MPBK Black

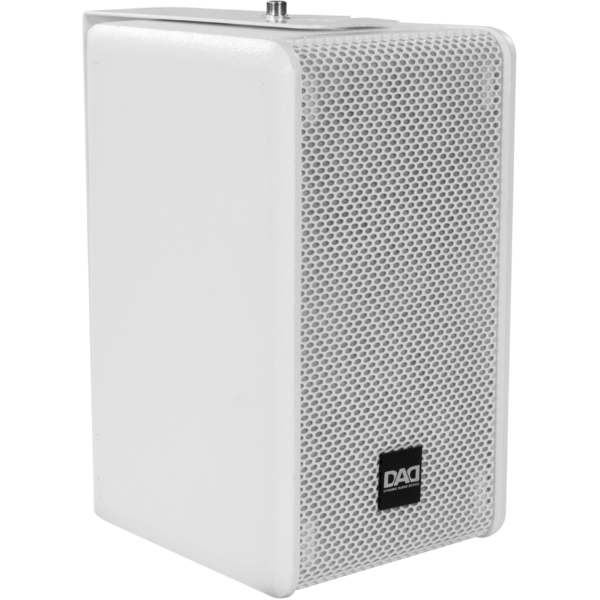

    ARK105MPWH White

    2-way passive loudspeaker, 120 W AES, 114dB SPL

    Features:
    Low frequency: 5'' woofer/0.75'' v.c.
    High frequency: 1'' driver / 1.5'' v.c.
    Frequency response: 75-18000 Hz (±3dB)
    ARK105MP full range speakers are suitable for small installations or can be used as satellites in combination with the passive or active sub.
    The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.
    Birch plywood enclosure.

    LOUDSPEAKER
    • System type:
      passive 2 way
    COMPONENTS
    • Low frequency:
      5
      ''
      woofer/1.5''v.c.
    • High frequency:
      1
      ''
      driver/1''v.c.
    FEATURES
    • AES/program power:
      120/240
      W
    • SPL max:
      114
      dB
      @1m (free field)
    ACOUSTICAL SPECIFICATIONS
    • Sensitivity:
      89
      dB
      @1W/1m (free field)
    • Impedance:
      16 Ohm
    • SPL cont/peak:
      108/114
      dB
      @1m (free field)
    • Frequency response:
      75-18000
      Hz
      (±3dB)
    • Coverage angle HxV:
      140x140
      °
    • Cross over frequency:
      2300
      Hz
    • Protection:
      H.F. signal compression
    • Suggest HPF range:
      140/180
      Hz
    • Recommended amplifier up to:
      240
      W
      /16Ohm
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      4pole - terminal clamp IN/OUT
    CABINET CONSTRUCTION
    • Cabinet material:
      12
      mm
      plywood
    • Sospension system:
      wall brackets (included)
    • Angle:
      7.5
      °
      trapezoidal taper
    PHYSICAL
    • Dimensions (WxHxD):
      186x310x208
      mm
    • Weight:
      5.9
      kg
    ITEMS REF.
    Accessory Code
    Description
    ARK105MP (optional)
    ARK106MP (optional)
    ARK205MP (optional)
    ARK206MP (optional)
    {CODEs}ARKWMS10
    Adjustable bracket on three axes for ARK series speakers, max 10 kg
