ARK208SA
ORDER CODE: ARK208SA
Share me

Immagine Principale
  • ARK208SA
  • ARK208SA
  • ARK208SA
  • ARK208SA
  • ARK208SA
  • ARK208SA
    • Code Finishing Avail.
    ARK208SABK Black

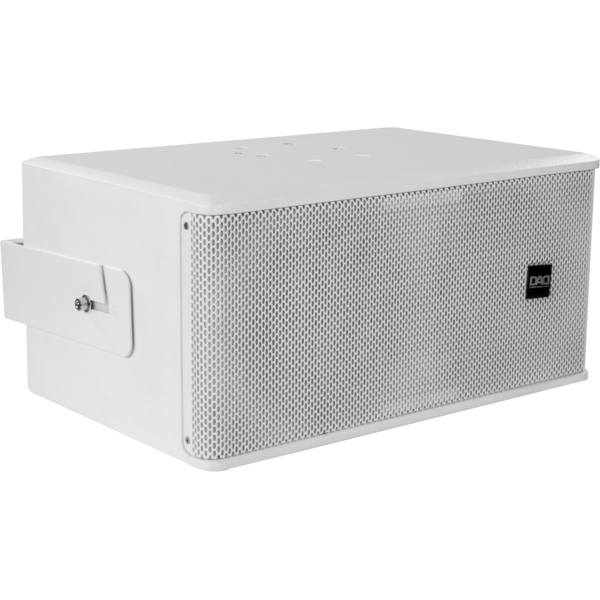

    ARK208SAWH White

    Bass-reflex active subwoofer, 2x700 W D-class amplifier, 121dB SPL

    Features:
    Built-in DSP: fully adjustable
    Remote control with RJ45 port via ARK485UR accessory
    ARK208SA amplified subwoofer speaker can drive up to 4 full range speakers of the ARK series plus an additional ARK208SP passive subwoofer.
    The DAD logo on the grille can be rotated rapidly for the both vertically and horizontally installation.

    LOUDSPEAKER
    • System type:
      active subwoofer
    COMPONENTS
    • Low frequency:
      2x8
      ''
      woofer/2''v.c.
    • Built-in amp LF/MF-HF:
      700/700 W (Continuous Power - EIA 1 kHz 1% THD)
    ACOUSTICAL SPECIFICATIONS
    • SPL cont/peak:
      116/122
      dB
      @1m (free field)
    • Frequency response:
      40-200
      Hz
      (±3dB)
    • Coverage angle HxV:
      °
      omnidirectional
    • Suggest LPF range:
      120/200
      Hz
    ELECTRONICS SPECIFICATIONS
    • Amplifier:
      digital
    • Input sensitivity:
      4 dBu (1,228Vrms) adjustable
    • Protection:
      limiter temp.
    • User controls:
      volume, DSP parameters
    • Built-in DSP:
      54
      bit
      - sampling rate 48kHz
    • Operating voltage/frequency:
      220 V~240 V/50 Hz
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      XLR IN/OUT
    • Output signal:
      2 x 4 pole
    • Data:
      RJ485 port
    • Power connection:
      powerCON IN/OUT
    CABINET CONSTRUCTION
    • Cabinet material:
      12
      mm
      plywood
    • Sospension system:
      wall brackets (included)
    PHYSICAL
    • Dimensions (WxHxD):
      500x246x235
      mm
    • Weight:
      14.5
      kg
    ITEMS REF.
    Accessory Code
    Description
    ARK208SA (optional)
    IDEA1402 (optional)
    IDEA2804 (optional)
    ARK12SA (optional)
    {CODEs}ARK485UR
    USB-RS485 interface for ARK DSP parameters management
    ARK208SA (optional)
    ARK208CX (optional)
    ARK208SP (optional)
    ARK416MP (optional)
    ARK416MP (optional)
    {CODEs}ARKWMS20
    Adjustable bracket on three axes for ARK series speakers, max 20 kg

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Ark208sabk_CAD_2D.dwgDownload
    Ark208sabk_TECHNICAL_DRAWING.pdfDownload

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    ARK Editor SoftwareDownload
    PL2303 Driver (Driver win)Download
    File set up ARK - IDEA SeriesDownload

    Tech Docs

    Ark208sabk_USER_MANUAL.pdfDownload
