CC230P
PROTRUSS

CC230P

ORDER CODE: CC230P

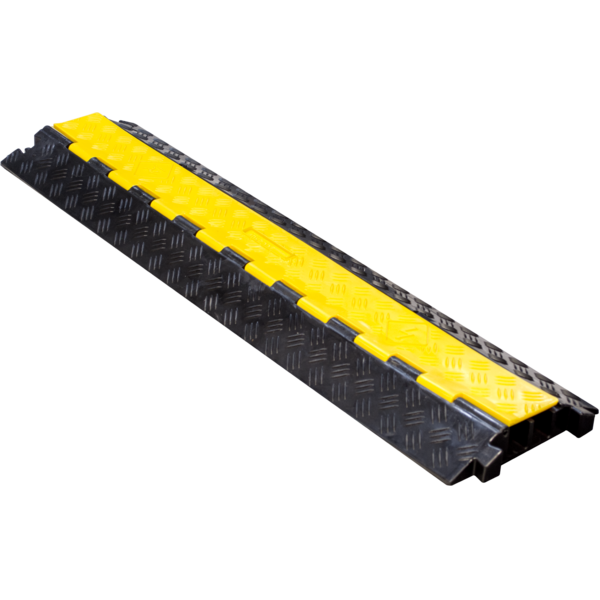

Heavy-duty and lightweight crossover cable with 2 channels for the crossing up to 30 mm of the section

Main features:

  • Base: module built in resistant and lightweight thermoplastic polyurethane
  • Closing panel: yellow anti-slip polyethene
  • Hinge joint designed to set and remove the lids quickly
  • Side ramps with mild slope allowing for the crossing of small wheels such as pushchairs and wheelchairs
  • Base surface designed to obtain maximum ground grip
  • Modulation with dovetail joint system for a simplified installation and fast fixing
  • Practicals lanes for the sorting of each channel
  • Fire resistant properties, electrical isolation and resistant to acid and solvents
  • Dimensions: 1000x45x250 mm
  • Weight: 4,5 Kg

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

CC230PCR45R
CC230PCR45R
(Optional)
45° Curved module for CC230P, 2 ducts 30x30mm, 40x25x4,5cm, right corner
CC230PCR45L
CC230PCR45L
(Optional)
45° Curved module for CC230P, 2 ducts 30x30mm, 40x25x4,5cm, left corner

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetCc230p_A4_DATASHEET_(EN).pdf513KB

User manual

File name File size Download
User manualCc230p_USER_MANUAL_ITEN.pdf136KB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download

Tech docs

File name File size Download

Software

File name File size Download

Firmware
