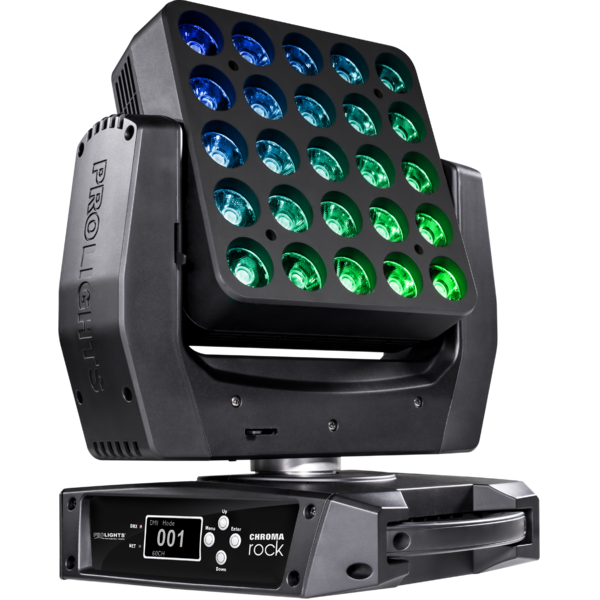

Chroma Rock

ORDER CODE: CHROMAROCK

Chroma Rock combines an explosive output, pixel2pixel control and movements in a single projector. These new features provide a new and original tool for lighting designers to really let their creativity loose.
Moving pixel matrix with limitless colour generation. The optical group of Chroma Rock develops light beams of 9° - thin as pins are capable of channeling light in a highly directive projection with unprecedent brightness, creating volumetric effects and graphics in the air

Main features:

  • 25 (5x5 matrix)x10W Osram Ostar RGBW / FC LEDs
  • 9° optics through high-definition narrow collimators
  • DMX, Art-Net and Kling-Net control protocol supported
  • Pixel control: individual control of each single LEDs
  • Advanced FX generator with dynamic pixel macros, static patterns, adjustable foreground and background colours, dimmer fade, speed and rotation
See variants

PHOTO GALLERY

Chroma Rock
Chroma Rock
Chroma Rock
Chroma Rock

Technical specifications

LIGHT SOURCE
  • Source: 25(5x5) x 10W RGBW Osram LED
  • Luminous flux: 8'280
  • Lux: 40'000lx @3 m
  • Source life expectancy: > 50.000 h
OPTICS
  • Beam angle: 9°
  • Field angle: 15°
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.800 K ~10.000K
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
  • Rotating gobos: alphanumeric pattern with index and rotation control
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
BODY
  • Pan range: 540°
  • Tilt range: 270°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black
CONTROL
  • Protocols: DMX512, Art-Net, Kling-Net
  • DMX channels: 9 / 10 / 13 / 18 / 23 / 81 / 106 / 113 / 119channel
  • Pixel control: pixel2pixel control
  • Display: Graphic User Interface
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX1 (USB-DMX interface not included)
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: selectable dimming modes available
  • Strobe / shutter: 1 - 20 Hz, electronic
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 412W
  • Output (at 230V): 8 units on a single power line
PHYSICAL
  • IP rating: IP20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: for transportation and maintenance
  • Signal connection: Neutrik XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 379x471x288mm / 14.92''x18.54''x11.34''
  • Weight: 14kg / 30.86lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Accessories & Related Products

9513FCAL03
9513FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
C6016B
C6016B
(Optional)
Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black&White& White
RSR0630B
RSR0630B
(Optional)
Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black
9533FCAL03
9533FCAL03
(Optional)
Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m
958025L03
958025L03
(Optional)
3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetChromarock_A4_DATASHEET(EN).pdf(02/04/2021)263KB

User manual

File name File size Download
User manualChromarock_USER_MANUAL_ITEN.pdf(12/11/2014)3MB

DMX chart & personalities

File name File size Download
DMX chartChromarock_DMX_CHARTS.pdf(09/01/2018)114KB

CHROMAROCK Firmware rev. 1.2

manufacturer fixture library (Link) Link
prolights_chromarock.d4Download
manufacturer fixture library (Link) Link
prolight_chromarock_106ch.hedDownload
prolight_chromarock_119ch.hedDownload
manufacturer fixture library (Link) Link
chromarock_9ch.fdfDownload
chromarock_10ch.fdfDownload
chromarock_13ch.fdfDownload
chromarock_18ch.fdfDownload
chromarock_23ch.fdfDownload
chromarock_81ch.fdfDownload
chromarock_106ch.fdfDownload
chromarock_113ch.fdfDownload
chromarock_119ch.fdfDownload
manufacturer fixture library (Link) Link
prolights@chromarock@9_channel@initial.xmlpDownload
prolights@chromarock@10_channel@initial.xmlpDownload
prolights@chromarock@13_channel@initial.xmlpDownload
prolights@chromarock@18_channel@initial.xmlpDownload
prolights@chromarock@23_channel@initial.xmlpDownload
prolights@chromarock@81_channel@initial.xmlpDownload
prolights@chromarock@106_channel@initial.xmlpDownload
prolights@chromarock@113_channel@initial.xmlpDownload
prolights@chromarock@119_channel@initial.xmlpDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
chromarock 9 channel.fix2Download
chromarock 10 channel.fix2Download
chromarock 13 channel.fix2Download
chromarock 18 channel.fix2Download
chromarock 23 channel.fix2Download
chromarock 81 channel.fix2Download
chromarock 106 channel.fix2Download
chromarock 113 channel.fix2Download
chromarock 119 channel.fix2Download
manufacturer fixture library (Link) Link

Photometrics

CAD symbols & drawings

File name File size Download
2DChromarock_CAD_2D.dwg(11/05/2021)2MB
3DChromarock_CAD_3D.dwg(21/08/2018)11MB
Technical drawingChromarock_TECHNICAL_DRAWING.pdf(11/05/2021)387KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware update instructions

1 Download the firmware (complete download is available on Customer Care - contact support@prolights.it for more info)

2 Download the updater software UpBox_Tool

3 Follow the instructions in the following guide
-------------------------------------------------------------------------------
Additional info:
  • Firmware updates require the UPBOXPRO compatible with all Prolights products
  • It's possible to use UPBOX1 and UPBOX2 *DISCONTINUED* checking the compatibility in the below tab
  • UpBox_Tool  software is compatible with all interfaces (UPBOXPRO, UPBOX1 and UPBOX2)
  • It's possible to update NET boards (with .EHEX files) following this guide with software Professional Uploader
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.2 STABLE 04/12/2018 10 second default display backlight
