CRMXBOXIP67
PROLIGHTS

CRMXBox IP67

ORDER CODE: CRMXBOXIP67

IP67 1 Universe CRMX Wireless Transceiver for exterior installation

The CRMXBox IP67 is an outdoor transceiver designed for permanent exterior installations. Capable of functioning as either a transmitter or receiver, it handles one DMX universe, accommodating up to 512 channels.
The unit's compact form factor includes IP-rated screwed connectors for reliable power and signal connections. Its robust construction, featuring an IP67-rated enclosure and a vandal-resistant mounting cover, ensures durability against outdoor elements.
The device is user-friendly, equipped with an onboard display and buttons for straightforward setup. It is compatible with Lumen Radio CRMX and Wireless DMX G protocols, offering versatile integration options.

Main features:

  • IP67 Single Univers Wireless CRMX Transceiver unit
  • Power IN and DMX In/Out through IP screwed connectors
  • Either LumenRadio CRMX and Wireless DMX G transmission option
  • 5dB antenna included
See variants

PHOTO GALLERY

CRMXBox IP67
CRMXBox IP67
CRMXBox IP67
CRMXBox IP67
CRMXBox IP67

Technical specifications

CONTROL
  • Supported Protocols: DMX512, RDM, CRMX
  • DMX channels: 512ch
  • RDM: for remote addressing and parameter configuration
  • Display: Graphic User Interface
ELECTRONICS
  • Display battery: included, self-charging battery backup
  • Firmware upgrade: via DMX with UPBOXPRO (not included)
CONNECTIONS
  • Power connection: moulded IP power IN connector
  • Signal connection: moulded IP signal IN (OUT) connector
  • Wireless Connection: integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption (230V): 6W
PHYSICAL
  • IP rating: IP67 for outdoor installations
  • Housing: Weatherproof IP67 construction with die-cast aluminium alloy
  • Finish: grey (RAL 9006)
  • Operating temperature: Ta -20 to +45 °C (-4 to +113 °F)
  • Dimensions (WxHxD): 238x120x84mm / 9.37''x4.72''x3.31''
  • Weight: 1,65kg / 3.64lbs
INSTALLATION
  • Suspension and fixing: holes for fixing to surfaces
  • Hardware on-board: 5dB antenna included
CERTIFICATIONS / REPORTS
  • Compliance: CE
BOX CONTENT

Versions

Accessories & Related Products

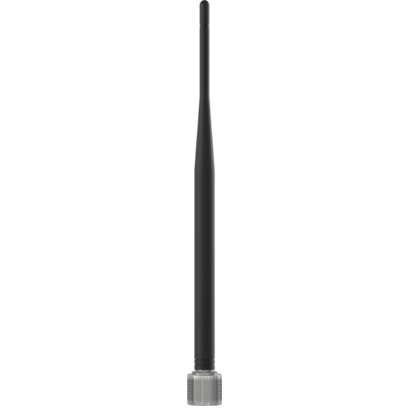

AEB5DBA
AEB5DBA
(Included)
5dB antenna for AETHERBOX and CRMXBOXIP67, N-male connector
CRMXBOXIP6790ADP
CRMXBOXIP6790ADP
(Optional)
IP67 90 degree adapter for CRMXBOXIP67 / AETHERBOX antenna, N-male connector

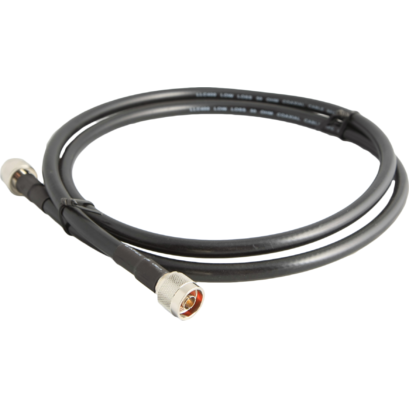

CABEXTN2N01M
CABEXTN2N01M
(Optional)
Antenna extension cable for AETHERBOX and CRMXBOXIP67, N-female connectors, 1 m
CABEXTN2N03M
CABEXTN2N03M
(Optional)
Antenna extension cable for AETHERBOX and CRMXBOXIP67, N-female connectors, 3 m
CABEXTN2N05M
CABEXTN2N05M
(Optional)
Antenna extension cable for AETHERBOX and CRMXBOXIP67, N-female connectors, 5 m
CABEXTN2N10M
CABEXTN2N10M
(Optional)
Antenna extension cable for AETHERBOX and CRMXBOXIP67, N-female connectors, 10 m
CABEXTN2N15M
CABEXTN2N15M
(Optional)
Antenna extension cable for AETHERBOX and CRMXBOXIP67, N-female connectors, 15 m

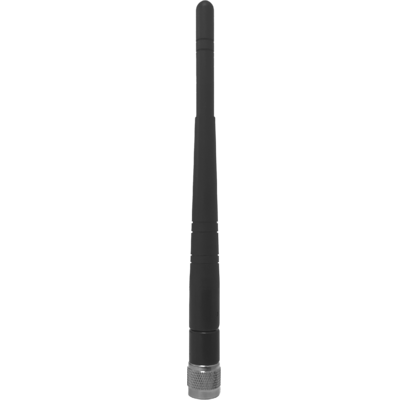

AEB2DBA
AEB2DBA
(Optional)
2 dBi Omni antenna (RP-TNC male connector) for AETHERBOX and CRMXBOXIP67

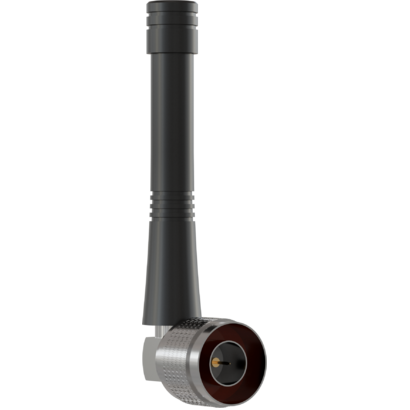

AEB2DBA90D
AEB2DBA90D
(Optional)
2 dBi 90° angled antenna (N-male connector) for AETHERBOX and CRMXBOXIP67

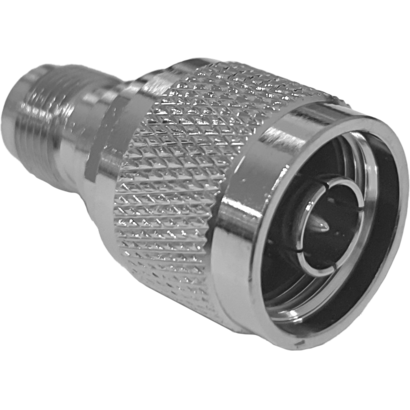

AEBRP2TNC
AEBRP2TNC
(Optional)
RP-TNC Female to N Male Adapter for AETHERBOX and CRMXBOXIP67
AWEXDC1221ADP
AWEXDC1221ADP
(Optional)
Signal adapter kit from AWEXDC1 series to AWEXDC2 series and vice versa
AWEXAC12ADP
AWEXAC12ADP
(Optional)
Power adapter from AWEXAC1 cable series to AWEXAC2 cable series
AWEXAC1L03
AWEXAC1L03
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.03 m
AWEXAC1L05
AWEXAC1L05
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.05 m
AWEXAC1L10
AWEXAC1L10
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.10 m
AWEXAC1L20
AWEXAC1L20
(Optional)
IP67 power extension cable for outdoor architectural projectors, L.2 0m
AWEXAC2L03
AWEXAC2L03
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 3m
AWEXAC2L05
AWEXAC2L05
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 5m
AWEXAC2L10
AWEXAC2L10
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 10m
AWEXAC2L20
AWEXAC2L20
(Optional)
Extension IP67 power cable, IPpowercon-F -> IPpowercon-M, 20m
AWEXDC1L03
AWEXDC1L03
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.03 m
AWEXDC1L05
AWEXDC1L05
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.05 m
AWEXDC1L10
AWEXDC1L10
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.10 m
AWEXDC1L20
AWEXDC1L20
(Optional)
IP67 DMX extension cable for outdoor architectural projectors, L.20 m
AWEXDC2L03
AWEXDC2L03
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 3m
AWEXDC2L05
AWEXDC2L05
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 5m
AWEXDC2L10
AWEXDC2L10
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 10m
AWEXDC2L20
AWEXDC2L20
(Optional)
Extension IP67 signal cable, IPdataCON-F -> IPdataCON-M, 20m
SETMA3M5M
SETMA3M5M
(Optional)
Male 5-pin XLR adapter <=> male 3-pin XLR
CANA5MMB
CANA5MMB
(Optional)
5 pole XLR male - 5 pole XLR male adapter, black finishing
UPBOXPRO
UPBOXPRO
(Optional)
Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetCrmxboxip67_A4_DATASHEET_(EN).pdf(02/02/2026)219KB
Tender SpecificationCrmxboxip67_TENDER_SPECIFICATION.pdf(02/05/2024)206KB

User manual

File name File size Download
User manualCrmxboxip67_USER_MANUAL_EN.pdf(23/08/2024)1MB
User manualCrmxboxip67_General_Safety_Information_EN.pdf(12/03/2024)2MB

DMX chart & personalities

File name File size Download

Photometrics

File name File size Download

CAD symbols & drawings

File name File size Download
3D SKPCrmxboxip67_3D.skp(12/03/2024)388KB
2DCrmxboxip67_CAD_2D.dwg(12/03/2024)928KB
3DCrmxboxip67_CAD_3D.dwg(12/03/2024)84KB
Technical drawingCrmxboxip67_TECHNICAL_DRAWING.pdf(12/03/2024)75KB

Tech docs

File name File size Download

Software

File name File size Download

Firmware


Firmware Update Information

PROLIGHTS product firmware can be updated in several ways, depending on the product and file extension. The available methods are listed in the product specifications in the CONTROL - Firmware upgrade section.

Method/Device File extension Needed software Instructions
UPBOXPRO (*) .PRL UpBox_Tool Guide
USB port .PRL No software needed see User Manual
Ethernet port .EHEX Professional Uploader Guide
Ethernet port .ALF DMX Workshop Guide

(*) You can still use UPBOX1 and UPBOX2 by checking their compatibility on the product accessories page. To use UPBOX2, you need to download the drivers from the following link.

Note: Some products without DMX or USB inputs may require an additional device and may not be compatible with UPBOXPRO. Check here  the products list.

UPDATE Instructions

  1. Check the update methods available on your product in the CONTROL - Firmware upgrade section.
  2. Download the firmware and software dedicated for the update.
  3. Follow the update guide available in the firmware folder.
Update Tool: UPBOXPRO UPBOXPRO
Check hardware changelog before downloading firmware
Revision Release date Firmware changelog HW Compatibility
1.1.01.0 STABLE 31/07/2024 Improvement:
  • Improved wireless signal management.
  • Improved wireless protocol management.
Note:
To change TX protocol, use the following procedure:
  1. Perform "TX Unlink" on CRMXBOXIP67
  2. Perform an "RX Unlink" on the device you want to connect as a receiver
  3. Set the TX protocol you want to use (G3,G4S,CRMX) on CRMXBOXIP67
  4. Power Cycle CRMXBOXIP67 and restart it.
  5. Perform a "TX Link" on CRMXBOXIP67 to link to the receiver.
