CS840TO
ORDER CODE: CS840TO
Share me

Immagine Principale
  • CS840TO
  • CS840TO
  • CS840TO

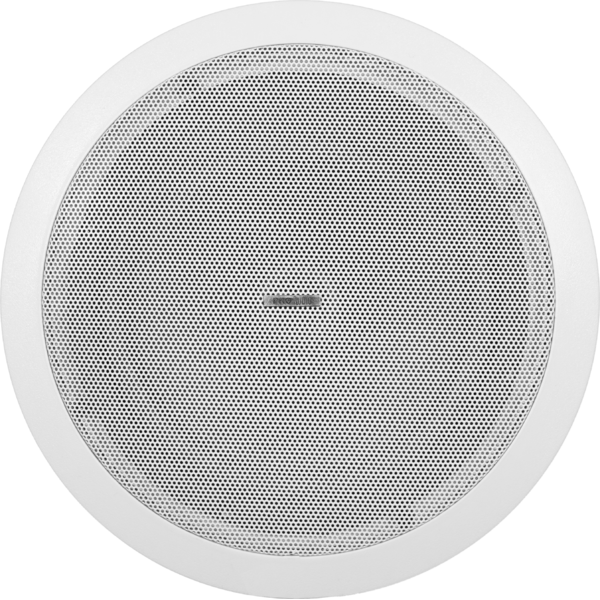

    • Ceiling speaker for recessed mounting. ideal for vocal announcements and reproduction of background music.

    Features:
    Ceiling speaker with coaxial tweeter placed on a bridge support.
    Built-in line transformer with multiple output connections for 100 V constant voltage lines.
    White ABS body and metal protection grid.
    Quick and easy installation by a special holding system, with no need of screws or other fixing elements.

    LOUDSPEAKER
    • System type:
      ceiling speaker
    COMPONENTS
    • Low frequency:
      8
      ''
    • High frequency:
      1
      ''
    FEATURES
    • AES/program power:
      40/80
      W
    • Input 100 V:
      10/20/40
      W
    ACOUSTICAL SPECIFICATIONS
    • Sensitivity:
      91
      dB
      @1W/1m (free field)
    • Impedance:
      8 Ohm
    • Constant voltage:
      100 V
    • Frequency response:
      60÷20.000
      Hz
      (±3dB)
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      terminal with wire
    CABINET CONSTRUCTION
    • Cabinet material:
      ABS, Iron
    PHYSICAL
    • Weight:
      2
      kg
    • Diameter Ø:
      270
      mm
    • Flush-mounting hole Ø:
      240
      mm
    • Color:
      White - 9010
      RAL
