Diamond 19
ORDER CODE: DIAMOND19
Share me

Immagine Principale
  • DIAMOND19
  • DIAMOND19
  • DIAMOND19
  • DIAMOND19
  • DIAMOND19
  • DIAMOND19
  • DIAMOND19
  • DIAMOND19
    • Diamond 19
    Code Housing Avail.
    DIAMOND19BK Black
    DIAMOND19WH
    		 White
    DIAMOND19CR
    		 Chrome

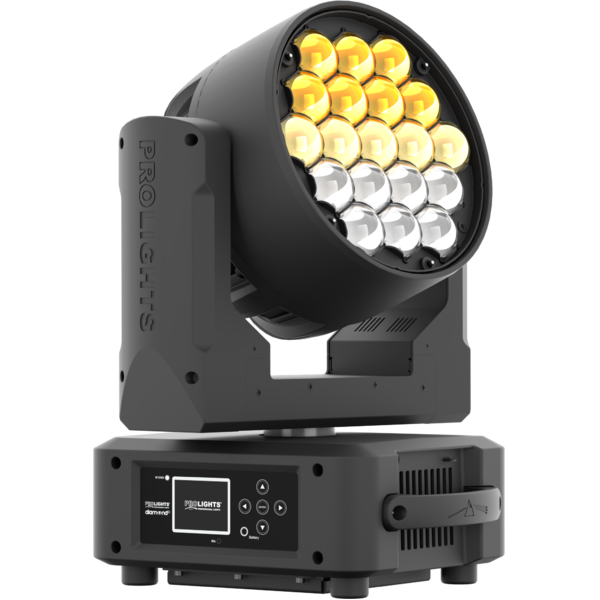

    Diamond 19 is the 'everyday' fixture from the stunning Diamond LED pixel wash family. As a wash light, the 6,7° - 41° zoom, even beam and truly fantastic colour range create an ideal workhorse fixture. For the next level, individual control of each LED pixel with switch system in order to offer extensive FX with a budget price, tied with the Diamond's clever optical design along with its onboard effects provide 'eye-candy' effects both to look at and in the air. Powerful, consistent and clever, the Diamond 19 makes a statement on every stage.

    Features:
    19x15W Osram Ostar RGBW LEDs provide an extensive and consistent colour range
    Individual control of pixels (on/off switch) with on-board FX generator for fast, precise effects
    Liquid cooling system for efficient cooling with virtually no noise

    LIGHT SOURCE
    • Source:
      19x15
      W
      RGBW Osram Ostar LEDs
    • Luminous flux:
      (6,7°) 2'339 lm - (41°) 3'811
      lm
      @full
    • Lux:
      (6,7°) 5'575 lx - (41°) 840
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Zoom:
      6,7° - 41
      °
      motorised linear zoom
    • Lens diameter:
      212
      mm
    • Lens type:
      honeycomb gapless plano-convex optics
    COLOUR SYSTEM
    • Colour mixing:
      RGBW / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.000 K ~ 8.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Pixel patterns:
      pre-programmed dynamic and static patterns
    • FX generator:
      adjustable foreground/background colour, index, speed, direction
    • Special features:
      Pixels controlled through On/Off switch for simplified control and budget friendly
    BODY
    • Pan angle:
      630
      °
    • Tilt angle:
      265
      °
    • Pan/Tilt resolution:
      bit
      8 / 16-bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512, RDM, W-DMX
    • DMX channels:
      18 / 19 / 20 / 32 / 98
      channel
    • Pixel control:
      pixel2pixel control through on/off switch
    • Wireless Control:
      included, wireless solution receiver
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      LCD high resolution colour display
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX2) not included
    • Hibernation:
      power safe mode when lost DMX
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    • Other:
      THEATRE mode for silent operation and fan control throught DMX
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 25
      Hz, electronic
    • Display battery:
      self-charging battery backup
    • Operating temperature:
      -10° ~ +45°
    • LED Control:
      flicker free operation
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      280
      W
    • Output (at 230V):
      6
      units on a single power line
    PHYSICAL
    • IP rating:
      20
    • Cooling:
      combination of heat pipe cooling system and low noise fan
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Signal connection:
      Amphenol XLR 3p + 5p IN/OUT connectors
    • Power connection:
      Neutrik powerCON IN/OUT connectors
    • Dimensions (WxHxD):
      338x449x235
      mm
    • Weight:
      11
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x DIAMOND19
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON)
    • 2 x OS24
    • User Manual
