Diamond 7
ORDER CODE: DIAMOND7
Condividimi

Immagine Principale
  • DIAMOND7
  • DIAMOND7
  • DIAMOND7
  • DIAMOND7
  • DIAMOND7
  • DIAMOND7
  • DIAMOND7
  • DIAMOND7
  • DIAMOND7

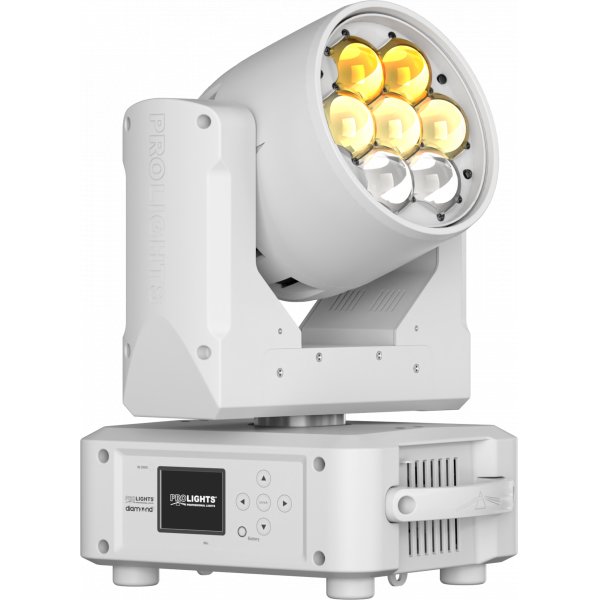

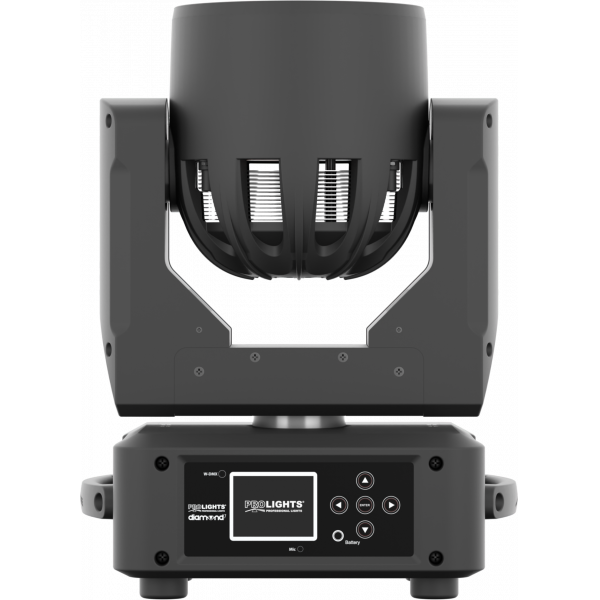

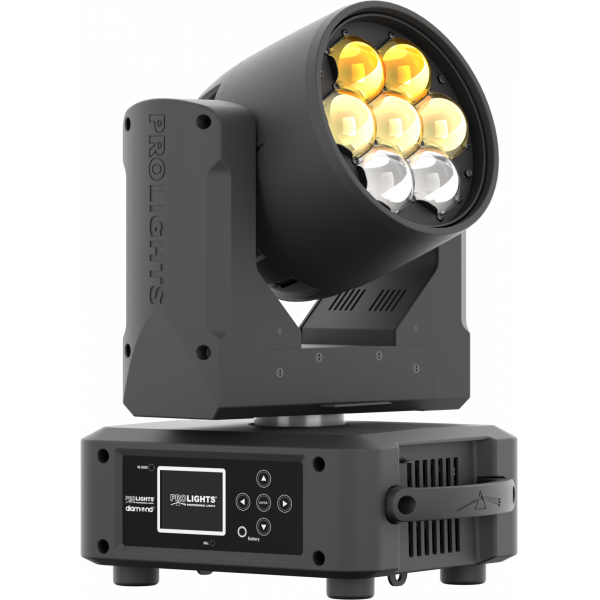

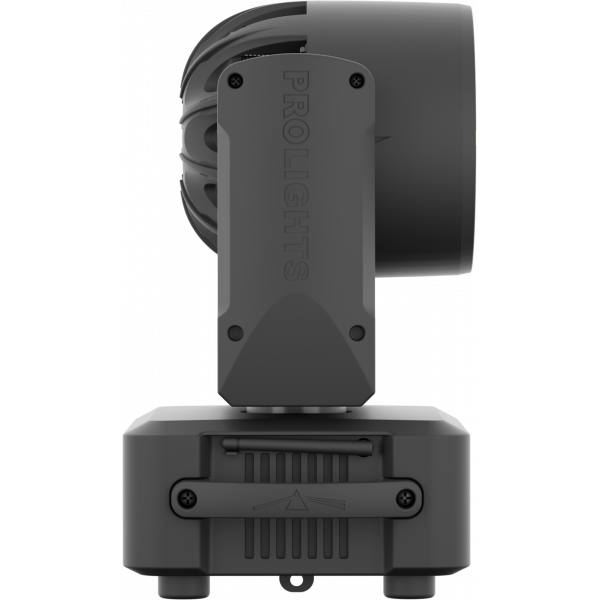

  • Diamond 7
    Code Colore Disp.
    DIAMOND7BK
    END OF LIFE
    Black
    DIAMOND7WH
    DISCONTINUO
    White
    DIAMOND7CR
    DISCONTINUO
    Chrome

    Diamond 7 è il proiettore LED più compatto della serie Diamond. Lo zoom 6° - 66°, il fascio nitido e l'ampia gamma di colori lo rendono un vero cavallo di battaglia. Il controllo dei pixel con sistema switch, l'intelligente design ottico del Diamond 7 e i suoi effetti integrati, forniscono effetti piacevoli anche in proiezione. Compatto, uniforme e intelligente, Diamond 7 fa la differenza anche laddove lo spazio è un problema.

    Features:
    7x15W LED RGBW Osram Ostar con un range di colori esteso e preciso
    Controllo dei pixel (switch on/off) con generatore FX integrato per effetti veloci e precisi
    Sistema di raffreddamento a liquido efficiente e silenzioso

    SORGENTE LUMINOSA
    • Sorgente:
      7x15
      W
      RGBW Osram Ostar LED
    • Lux:
      (6°) 10'980 lx - (66°) 745
      lx
      @3 m full
    • Durata media sorgente:
      > 50.000 h
    OTTICA
    • Zoom:
      6° - 66
      °
      motorizzato, lineare
    • Diametro:
      126
      mm
    • Tipo lente:
      lenti piano convesse con trama a nido d'ape prive di interspazio
    SISTEMA COLORE
    • Miscelazione del colore:
      RGBW / FC
    • CCT:
      controllo CCT tramite canale DMX indipendente
    • Preset bianchi:
      2.000 K ~ 10.000
      K
    • Ruota colori:
      ruota colori virtuale con macro
    EFFETTI DINAMICI
    • Pixel pattern:
      effetti pixel pre-impostati, statici e dinamici
    • Generatore effetti:
      colore di primo piano / sfondo, indice, velocità, direzione regolabili
    • Caratteristiche speciali:
      Pixels controlled through On/Off switch for simplified control and budget friendly
    CORPO
    • Pan angle:
      630
      °
    • Tilt angle:
      265
      °
    • Risoluzione Pan/Tilt:
      bit
      8 / 16-bit
    • Feedback:
      riposizionamento automatico dopo movimenti accidentali
    • Corpo:
      struttura in alluminio con coperture in policarbonato ad alta resistenza
    • Colore:
      nero, variante con finitura bianca disponibile
    CONTROLLO
    • Protocolli:
      DMX512, RDM
    • Canali DMX:
      18 / 19 / 20 / 26 / 50
      channel
    • Pixel control:
      controllo pixel2pixel mediante switch on/off
    • Controllo Wireless:
      opzionale, ricevitore ad antenna (2.4 GHz) by Wireless Solution Sweden
    • RDM:
      RDM per controllo e impostazioni remote della fixture
    • Display:
      display a colori LCD ad alta risoluzione
    • Aggiornamento firmware:
      si, con interfaccia USB - DMX (UPBOXPRO/UPBOX2) non inclusa
    • Ibernazione:
      attivazione automatica risparmio energia in assenza di segnale DMX
    • Master/Slave:
      per il controllo di più unità collegate in catena
    ELETTRONICA
    • Dimmer:
      0 ~ 100% lineare, elettronico
    • Strobo / shutter:
      1 - 25
      Hz, elettronico
    • Batteria display:
      batteria tampone autoricaricabile
    • Temperatura d'esercizio:
      -10° ~ +45°
    • Controllo LED:
      funzionamento senza sfarfallio
    ALIMENTAZIONE
    • Alimentazione elettrica:
      100-240V - 50/60Hz
    • Potenza massima assorbita:
      125
      W
    • Potenza massima assorbita (a 120V):
      125
      W
    • Output (a 230V):
      12
      unità connesse in serie
    • Fattore di potenza:
      > 0.93
    • Corrente di spunto:
      <30A @115VAC /<50A @230VAC
    CARATTERISTICHE FISICHE
    • Grado IP:
      20
    • Raffreddamento:
      sistema di dissipazione con heating-pipe
    • Sospensione e fissaggio:
      qualsiasi posizione con supporti omega (inclusi) “quicklock”

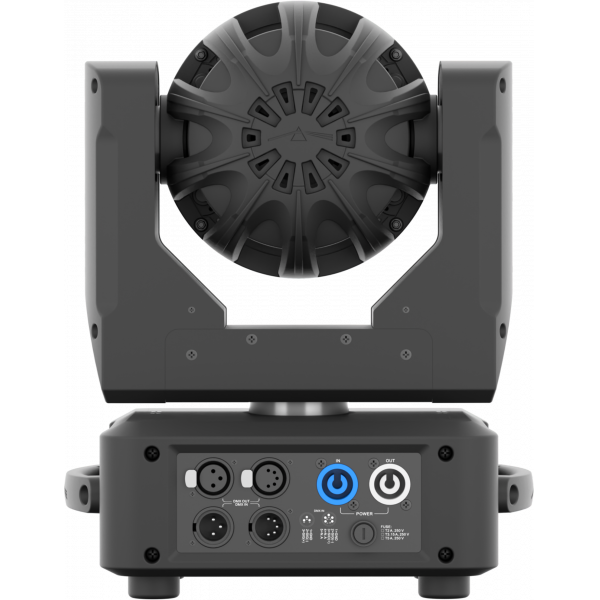

    • Connessione di segnale:
      Amphenol XLR 3p + 5p IN/OUT connectors
    • Connessione di alimentazione:
      Neutrik powerCON IN/OUT connectors
    • Dimensioni (LxAxP):
      278x348x200
      mm
    • Peso:
      6,4
      kg
    CERTIFICAZIONI / APPROVAZIONI
    • certificazioni / Approvazioni:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x DIAMOND7
    • 1 x 1,5 meters power cable (BARE END - NEUTRIK POWERCON)
    • 1 x OS24
    • User Manual
    CODICE PRODOTTO
    Codice Accessorio
    Descrizione
    DIAMOND7 (optional)
    {ProdottiDaAccessorio}
    Cavo Ass. TH07 3x2.5mm, spina SCHUKO, presa MENAC3FCA, L.3 m
    DIAMOND7 (optional)
    {ProdottiDaAccessorio}
    Cavo TH07 3x2.5mm, PwCon FCA 3p 20A, PwCon FCB 3p 20A, L. 3m
    DIAMOND7 (optional)
    {ProdottiDaAccessorio}
    Cavo Ass. TH07 3x2.5mm, spina CEE 3p 16A 230V, presa MENAC3FCA, L.3 m
    DIAMOND7 (optional)
    {ProdottiDaAccessorio}
    Cavo Dmx assembl. HC5340, CANC5MXX XLR 5p -> CANC5FXX XLR (f) 5p, L.3m
    DIAMOND7 (optional)
    {ProdottiDaAccessorio}
    Cavo di sicurezza acciaio per corpi sospesi, moschettone inox, L=60 cm, nero
    DIAMOND7 (optional)
    {ProdottiDaAccessorio}
    Clamp a grilletto rapido, port.250Kg, tubi 48-51mm, perno M10 incl, Black
    DIAMOND7 (include)
    {ProdottiDaAccessorio}
    Aggancio rapido omega, foro M12
    DIAMOND7 (include)
    {ProdottiDaAccessorio}
    Aggancio rapido omega, foro M10
    DIAMOND7 (optional)
    {ProdottiDaAccessorio}
    Cavo Dmx assembl. HC5340 CANC3MXX XLR 3p -> CANC3FXX XLR (f) 3p, L.3m
    DIAMOND7 (optional)
    {ProdottiDaAccessorio}
    WDMX, Antenna 2.4Ghz 2dBi Omnidirectional, Folding, SMA-Male, Indoor
    DIAMOND7 (optional)
    {ProdottiDaAccessorio}
    Flight case per contenere 4 proiettori DIAMOND7
    DIAMOND7 (optional)
    {ProdottiDaAccessorio}
    Interfaccia aggiornamento firmware, USB IN, 5-pin XLR DMX OUT
    DIAMOND7 (optional)
    {ProdottiDaAccessorio}
    Interfaccia aggiornamento firmware, USB IN, connettore XLR DMX OUT 5-pin
