Diamond 7

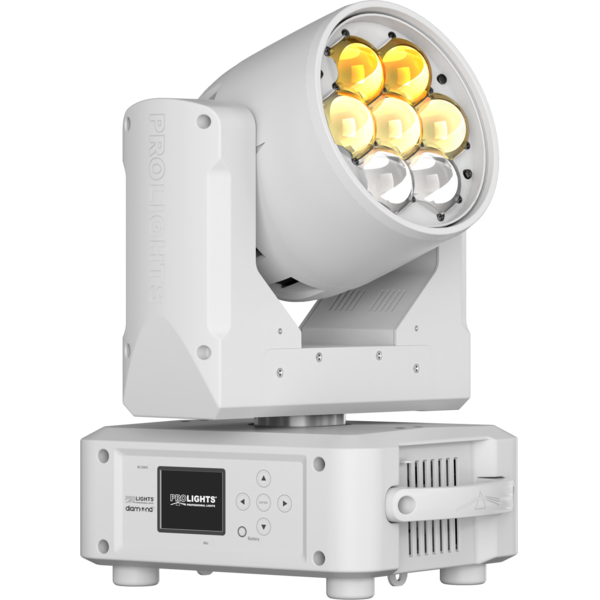

7x15W moving LED wash with pixel effects

Diamond 7 is the most compact fixture of the stunning Diamond LED pixel wash family. As a wash light, the 6° - 66° zoom, even beam and fantastic colour range create a true workhorse fixture. For the next level, individual control of each LED pixel with switch system, tied with the Diamond’s clever optical design and its onboard effects provides 'eye candy' effects both to look at and in the air. Compact, consistent and clever, the Diamond 7 makes a statement, even when space is an issue.

Main features:

  • 7x15W Osram Ostar RGBW LEDs provide an extensive and consistent colour range
  • Individual control of pixels (on/off switch) with on-board FX generator for fast, precise effects
  • Liquid cooling system for efficient cooling with virtually no noise

PHOTO GALLERY

Technical specifications

LIGHT SOURCE
  • Source: 7x15W RGBW Osram Ostar LEDs
  • Lux: (6°) 10'980 lx - (66°) 745lx @3 m full
  • Source life expectancy: > 50.000 h
OPTICS
  • Zoom range: 6° - 66° motorised linear zoom
  • Lens diameter: 126mm / 4.96''
  • Lens type: honeycomb gapless plano-convex optics
COLOUR SYSTEM
  • Colour mixing: RGBW / FC
  • CCT: CCT control through dedicated DMX channel
  • White presets: 2.000 K ~ 10.000K
  • Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
  • Pixel patterns: pre-programmed dynamic and static patterns
  • FX generator: adjustable foreground/background colour, index, speed, direction
  • Special features: Pixels controlled through On/Off switch for simplified control and budget friendly
BODY
  • Pan range: 630°
  • Tilt range: 265°
  • Pan/Tilt resolution: bit 8 / 16-bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with high-resistance polycarbonate cover
  • Body colour: black, white finishing available
CONTROL
  • Protocols: DMX512, RDM
  • DMX channels: 18 / 19 / 20 / 26 / 50channel
  • Pixel control: pixel2pixel control through on/off switch
  • Wireless Control: optional, wireless solution receiver
  • RDM: RDM for remote monitoring and settings
  • Display: LCD high resolution colour display
  • Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
  • Hibernation: power safe mode when lost DMX
  • Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45° Ta
  • LED Control: flicker free operation
ELECTRICAL
  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 125W
  • Max power consumption (at 120V): 125W
  • Standby power: 15W
  • Output (at 230V): 12 units on a single power line
  • Power factor: > 0.93
PHYSICAL
  • IP rating: IP20
  • Cooling: combination of heat pipe cooling system and low noise fan
  • Suspension and fixing: any position with quick-lock omega brackets
  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • Dimensions (WxHxD): 278x348x200mm / 10.94''x13.7''x7.87''
  • Weight: 6,4kg / 14.11lbs
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT

Versions

Code
Housing
DIAMOND7BK
DIAMOND7BK (END OF LIFE)
Black
DIAMOND7WH
DIAMOND7WH (DISCONTINUED)
White
DIAMOND7CR
DIAMOND7CR (DISCONTINUED)
Chrome

Accessories & Related Products

OS24PLUS
OS24PLUS
(Optional)
Quick-lock omega bracket, M12 hole
TOUR53415L03
TOUR53415L03
(Optional)
Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m
TOUR53413L03
TOUR53413L03
(Optional)
Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m

DOWNLOAD

Data sheet & specs

File name File size Download
Letter datasheetDiamond7_A4_DATASHEET_(IT).pdf169KB
Letter datasheetDiamond7_A4_DATASHEET_(EN).pdf169KB

DMX chart & personalities

File name File size Download
DMX chartDiamond7_DMX_CHARTS.pdf58KB
DIAMOND7 Firmware rev. 3.1.00
manufacturer fixture library (Link) Link
prolights_diamond7.d4Download
manufacturer fixture library (Link) Link
prolights_diamond7_20ch.hedDownload
manufacturer fixture library (Link) Link
diamond7_18ch.fdfDownload
diamond7_19ch.fdfDownload
diamond7_20ch.fdfDownload
diamond7_26ch.fdfDownload
diamond7_50ch.fdfDownload
diamond7_ssl.zipDownload
diamond7_ssl2.zipDownload
manufacturer fixture library (Link) Link
prolights@diamond_7@extended_1.xmlDownload
prolights@diamond_7@extended_2.xmlDownload
prolights@diamond_7@standard.xmlDownload
prolights@diamond_7@basic-8.xmlDownload
prolights@diamond_7@basic-16.xmlDownload
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
manufacturer fixture library (Link) Link
