DP4004
DAD

DP4004

ORDER CODE: DP4004

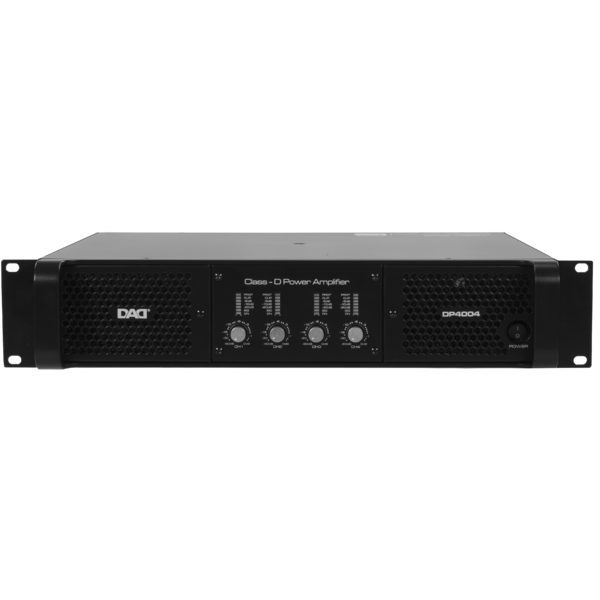

DClass Power Amplifier 4x650W/8, 4x1100W/4, Bridge: 2x2000W/8, 2U/19''

The innovative DAD's D-class DP amplifiers series uses an advanced design that drastically reduces the weight and dissipation of heat. Efficiency between energy consumption and output available the power is 95%. The amplifiers of DP series are designed with a new high audio resolution D-class typology.
These revolutionary amplifier series provide a superior quality sound and an unequalled reliability. Protection circuits allow greater efficiency under difficult loads and power conditions. In other words, an amplifier that doesn't hurt nor your budget nor your back!

Main features:

  • With a single channel power of 650/1100 W 8/4 Ohm, new DP4004 Class D is the best solution for sound applications that require a multi-channel amplifier of average power with a great sound at affordable price.
  • Thanks to Universal technology, regulated switch mode with PFC (Power Factor Correction) it allows performances with supply voltages from 90V to 260V.

PHOTO GALLERY

Technical specifications

AMPLIFIER
  • Channels: 4
  • Circuit class: digital
OUTPUT
  • Single channel power: 650/1100 W 8/4 Ohm (Continuous Power - EIA 1 kHz 1% THD)
  • Bridge mode power: 2x2000 W 8 Ohm (Continuous Power - EIA 1 kHz 1% THD)
AUDIO SPECIFICATIONS
  • Frequency responce: 20 - 20000Hz @ 8 Ohm (±0.5 dB)
  • THD+N: <0.15%
  • Slew rate: >10V/μs @ 8Ω
  • Damping factor: >500
  • Input impedance: 10kΩ
  • Signal/Noise rate: >100dB
POWER SUPPLY STAGE
  • Type: Universal, regulated switch mode with PFC
  • Operating voltage/frequency: 100-240V ±10%, 50-60Hz
  • Max power consumption: 2000 W
PROTECTIONS
  • Output: Soft-start, short circuit, DC, overheat
  • Input: Clip/limit, progressive volume
FUNCTIONS
  • Input mode: stereo, parallel, bridge / limiter
  • Input sensitivity/gain: 1Vrms/32dB/38dB
INDICATORS
  • Indicators: 4 x LED bar - signal level and over temperature protection
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR in/out
  • Output signal: 4 x 4 pole, binding post
  • Power connection: VDE
PHYSICAL
  • Cooling: active, silent operation
  • Dimensions (WxHxD): 483x89x435mm / 19.02''x3.5''x17.13''
  • Rack unit: 2
  • Weight: 9.5kg / 20.94lbs

Versions

Accessories & Related Products

DOWNLOAD

Data sheet & specs

File name File size Download

User manual

File name File size Download
User manualDp4004_USER_MANUAL_ITEN.pdf3MB
