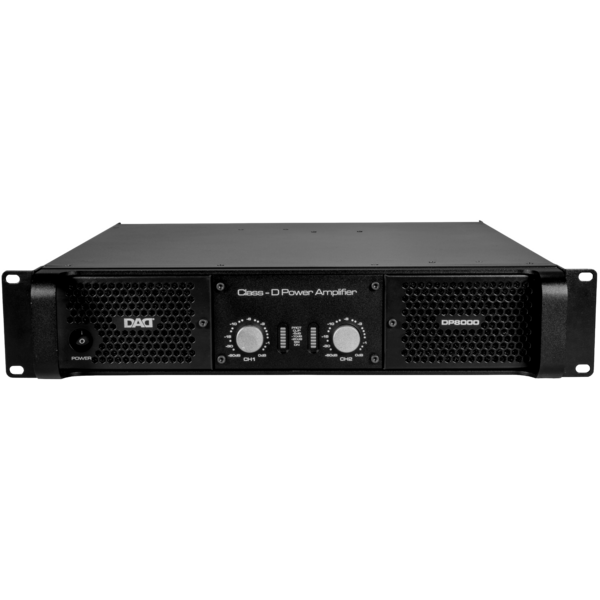

DP8000
ORDER CODE: DP8000
Share me

Immagine Principale
  • DP8000
  • DP8000

    • The innovative DAD's D-class DP amplifiers series uses an advanced design that drastically reduces the weight and dissipation of heat. Efficiency between energy consumption and output available the power is 95%. The amplifiers of DP series are designed with a new high audio resolution D-class typology.

    These revolutionary amplifier series provide a superior quality sound and an unequalled reliability. Protection circuits allow greater efficiency under difficult loads and power conditions. In other words, an amplifier that doesn't hurt nor your budget nor your back!

    Features:
    Reaching an output power of 1500/2500/4000W 8/4/2 Ohm, DP8000 employs SMPS technology for power-supply stage and D-class for output stage, weighing 10.8 kg only.
    These features make DP8000 the right choice for professional loudspeakers and for Sub/MF/HF sections of multi-amplified systems.

    AMPLIFIER
    • Channels:
      2
    • Circuit class:
      digital
    OUTPUT
    • Single channel power:
      1500/2500
      W 8/4 Ohm (Continuous Power - EIA 1 kHz 1% THD)
    • Single channel power:
      4000
      W 2 Ohm (40ms burst, 1KHz sine wave and 0.5% THD)
    • Bridge mode power:
      5000
      W 8 Ohm (Continuous Power - EIA 1 kHz 1% THD)
    AUDIO SPECIFICATIONS
    • Frequency responce:
      20 - 20000
      Hz @ 8 Ohm
      (±1 dB)
    • THD+N:
      <0.15
      %
    • Slew rate:
      >25
      V/μs @ 8Ω
    • Damping factor:
      >250
    • Input impedance:
      10
      kΩ
    • Signal/Noise rate:
      >110
      dB
    POWER SUPPLY STAGE
    • Type:
      Switching
    • Operating voltage/frequency:
      220 V ±10%, 50Hz
    PROTECTIONS
    • Output:
      Soft-start, short circuit, DC, overheat
    • Input:
      Clip/limit, progressive volume
    • Power supply:
      Resettable fuse
    FUNCTIONS
    • Input mode:
      stereo, parallel, bridge / limiter
    • Input sensitivity/gain:
      1Vrms/32dB/38dB
    • HPF selector:
      Off/30/50
      Hz
    INDICATORS
    • Indicators:
      2 x LED bar - signal level, and over temperature protection
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      XLR in/out
    • Output signal:
      2 x 4 pole, binding post
    • Power connection:
      PowerCON
    PHYSICAL
    • Cooling:
      active, silent operation
    • Dimensions (WxHxD):
      483x89x460
      mm
    • Rack unit:
      2
    • Weight:
      10.8
      kg
    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual
