EUT99759 new
ORDER CODE: EUT99759
Share me

Immagine Principale
  • EUT99759
  • EUT99759
  • Code Finishing Avail.
    EUT997592
    NEW
    Black
    EUT997596
    NEW
    White

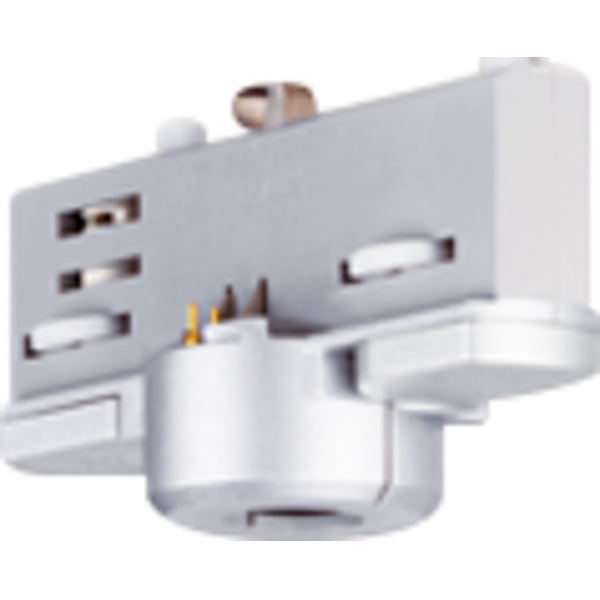

    MultiAdapter with data bus option for 3-phase track, with data bus option. With screw terminals and nickel-plated spring contacts. Approved for 6A inductive / 6A resistive at 250V. With protective conductor connection and phase selector switch. Phase selection via rotary core with zero setting when inserted. Better mechanical hold in the rail thanks to the double bolt, even when using heavy radiators, loadable up to 5 kg, when using mounting nipple 99-066- up to 10 kg.


    Suitable for other 3~ power rails.
    Housing: polycarbonate, self-extinguishing according to class V0.

    ITEMS REF.
    Accessory Code
    Description
    EUT99759 (optional)
    {ProdottiDaAccessorio}
    Data bus tap EUT99759
    EUT99759 (optional)
    {ProdottiDaAccessorio}
    Mounting nut66 for EUT99759, black
    EUT99759 (optional)
    {ProdottiDaAccessorio}
    Mounting nut66 for EUT99759, white
