FUSION12MA
ORDER CODE: FUSION12MA
Share me

Immagine Principale
  • FUSION12MA
  • FUSION12MA
  • FUSION12MA
  • FUSION12MA
  • FUSION12MA

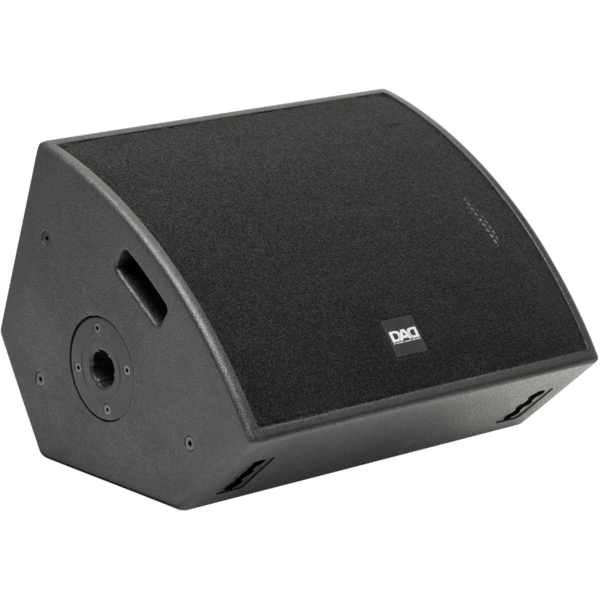

    • Active stage-monitor, coaxial design, D+AB class bi-amp. 2-way 350+70 W, 128db SPL

    Features:
    Low frequency: 12'' woofer/2.6''v.c.
    High frequency: 1'' driver/1.3''v.c.
    Frequency response: 60-18000 Hz (±3dB)
    User controls: mic, line, master, eq LF-HF
    Reproduction in the monitoring of voice and music for live and recorded performances
    Birch plywood enclosure
    For sound installations in environments requiring dynamics and high sound pressure

    LOUDSPEAKER
    • System type:
      active stage monitor, coaxial design
    COMPONENTS
    • Low frequency:
      12
      ''
      woofer/2.6''v.c.
    • High frequency:
      1
      ''
      driver/1.3''v.c.
    FEATURES
    • Built-in amp LF/HF:
      350+70
      W
    • SPL max:
      127
      dB
      @1m (free field)
    ACOUSTICAL SPECIFICATIONS
    • SPL cont/peak:
      121/127
      dB
      @1m (free field)
    • Frequency response:
      60-18000
      Hz
      (±3dB)
    • Coverage angle HxV:
      80x80
      °
    • Cross over frequency:
      2000
      Hz
    ELECTRONICS SPECIFICATIONS
    • Amplifier:
      digital + AB class
    • Power:
      350+70
      W
      /4/8Ohm
    • Input sensitivity:
      4 dBu (1,228Vrms) adjustable
    • Protection:
      fast limiter, temp
    • User controls:
      mic, line, master, eq LF-HF
    • Processor:
      analog
    • Operating voltage/frequency:
      220 V~240 V/50 Hz
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      XLR IN/OUT
    • Power connection:
      VDE
    CABINET CONSTRUCTION
    • Cabinet material:
      15
      mm
      birchplywood
    • Sospension system:
      6 point M8
      eyebolt, fly track, 35 mm pole mount
    • Angle:
      40
      °
      monitor applications
    • Handles:
      2 on side
    PHYSICAL
    • Dimensions (WxHxD):
      502x370x440
      mm
    • Weight:
      20
      kg
    ITEMS REF.
    Accessory Code
    Description
    FUSION12MA (optional)
    FUSION12P (optional)
    FUSION15MA (optional)
    FUSION10P (optional)
    FUSION15A (optional)
    FUSION15P (optional)
    FUSION12MP (optional)
    FUSION15MP (optional)
    FUSION12A (optional)
    FUSION10A (optional)
    TOURING208A (optional)
    TOURING12AG2 (optional)
    TOURING15MP (optional)
    TOURING12MP (optional)
    TOURING215P (optional)
    TOURING10A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    TOURING12P (optional)
    TOURING15P (optional)
    TOURING15AG2 (optional)
    {CODEs}ACCA5452
    End of life
    Zinc-plated steel eye-bolt and hook, for suspension of loudspeakers
    FUSION12MA (optional)
    FUSION12P (optional)
    FUSION15MA (optional)
    FUSION10P (optional)
    FUSION15A (optional)
    FUSION15P (optional)
    FUSION12MP (optional)
    FUSION15MP (optional)
    FUSION12A (optional)
    FUSION10A (optional)
    TOURING208A (optional)
    TOURING12AG2 (optional)
    TOURING15MP (optional)
    TOURING12MP (optional)
    TOURING215P (optional)
    TOURING10A (optional)
    TOURING215A (optional)
    TOURING12MA (optional)
    TOURING15MA (optional)
    TOURING208P (optional)
    TOURING10P (optional)
    TOURING12P (optional)
    TOURING15P (optional)
    TOURING15AG2 (optional)
    {CODEs}ACCA5456
    End of life
    Zinc-plated steel eye-bolt with spring, for suspension of loudspeakers
    FUSION12MA (optional)
    LIVE8 (optional)
    IKOS10A (optional)
    IKOS10P (optional)
    IKOS15A (optional)
    IKOS12A (optional)
    IKOS12P (optional)
    IKOS15P (optional)
    IKOS8P (optional)
    IKOS8A (optional)
    LIVE12 (optional)
    LIVE12A (optional)
    LIVE10A (optional)
    LIVE10 (optional)
    LIVE15A (optional)
    LIVE15 (optional)
    FUSION12MP (optional)
    FUSION15P (optional)
    FUSION12P (optional)
    FUSION10P (optional)
    FUSION15MA (optional)
    FUSION15A (optional)
    FUSION12A (optional)
    FUSION10A (optional)
    FUSION15MP (optional)
    {CODEs}AS255
    End of life
    Wall mount support for acoustic speakers, horiz. & vertical, max load 60 kg
