Halu Rock end of life

ORDER CODE: HALUROCK

Share me

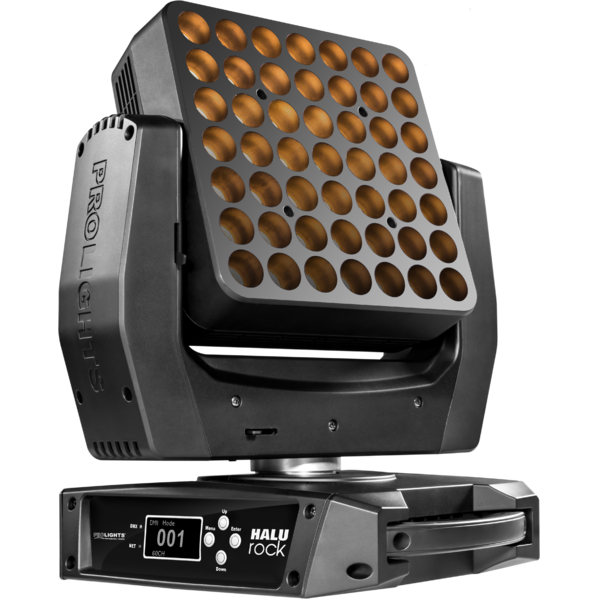

Halu Rock combines an explosive output, pixel2pixel control and movements in a single projector thus providing a new and original tool to lighting designers let their creativity loose.

The optical group of HALUROCK develops light beams of 8° - thin as pins are capable of channelling light in a highly directive projection with unprecedented brightness, creating volumetric effects and graphics in the air. The HALUROCK light source is based on 49 (7x7 matrix) high-lumen CREE warm white LEDs with a 2.800K colour temperature which recreates the classic effect of the halogen lamp used in rock concerts.

Features:
49 (7x7 matrix) x3 W CREE Warm White LEDs, with a 2.800 K colour temperature
Beam angle: 6°
DMX, Art-Net and Kling-Net control protocol supported
Pixel control: individual control of each single LEDs
Advanced FX generator with dynamic pixel macros, static patterns, adjustable foreground and background dimmer, dimmer fade, speed and rotation

LIGHT SOURCE

Source:

49 (7x7) x3
W

Warm White LED
CCT:

2.800
Luminous flux:

5'462
Lux:

30'110
lx

@3 m
Source life expectancy:

> 50.000 h

OPTICS

Beam angle:

6
°
Field angle:

8
°

DYNAMIC EFFECTS

Pixel patterns:

pre-programmed dynamic and static patterns
FX generator:

adjustable foreground/background colour, index, speed, direction
Manual mode:

manual adjustment of dimmer and strobe
Auto mode:

built-in programs with execution speed adjustment

BODY

Pan angle:

540
°
Tilt angle:

270
°
Body:

aluminium structure with high-resistance polycarbonate cover
Body colour:

black

CONTROL

Protocols:

DMX512, Art-Net, Kling-Net
DMX channels:

13 / 16 / 55 / 62 / 65
channel
Master/Slave:

for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:

linear 0 ~ 100% electronic dimmer
Dimmer curves:

4

selectable dimming modes available
Strobe / shutter:

1 - 20

flash(s), mechanical
Operating temperature:

-10° ~ +45°
LED Control:

flicker free operation

ELECTRICAL

Mains power supply:

100-240V - 50/60Hz
Max power consumption:

202
W
Max power consumption (at 120V):

208
W
Output (at 230V):

8

units on a single power line

PHYSICAL

IP rating:

20
Cooling:

active, silent operation
Suspension and fixing:

any position with quick-lock omega brackets
Pan / tilt lock:

for transportation and maintenance
Signal connection:

Neutrik XLR 3p + 5p IN/OUT connectors
Power connection:

Neutrik powerCON IN/OUT connectors
Dimensions (WxHxD):

379x471x288
mm
Weight:

14
kg

CERTIFICATIONS / APPROVALS

Certifications / Approvals:

CE, UKCA, RCM

BOX CONTENT

1 x HALUROCK
1 x 1,5 meters power cable (BARE END - SEETRONIC power connector)
2 x quick-lock omega brackets
User Manual

ITEMS REF.

Accessory Code

Description

9513FCAL03

optional

Ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FCA socket, L.3m

C6016B

optional

Selflock slim clamp, 250Kg load, 48-51mm tubes, M10 bolt incl, Black

RSR0630B

optional

Steel security cable for hanging bodies, inox steel shackle, L=60 cm, black

9533FCAL03

optional

Ass. 3x2.5mm TH07 cable, SCHUKO plug, MENAC3FCA socket, L.3m

TOUR53415L03

optional

Dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m

958025L03

optional

3x2.5mm TH07 Cable, 20A 3p PwCon FCA, 20A 3p PwCon FCB, L. 3m

TOUR53413L03

optional

Dmx cable HC5340. CANC3MXX XLR 3p->CANC3FXX XLR (f) 3p, L.3m

FCLHALUROCK

optional

Flight case for 2 HALUROCK

UPBOX1UP5

optional

Firmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT

UPBOXPRO

optional

Firmware uploader kit, USB IN, 5-pin XLR DMX OUT connector
