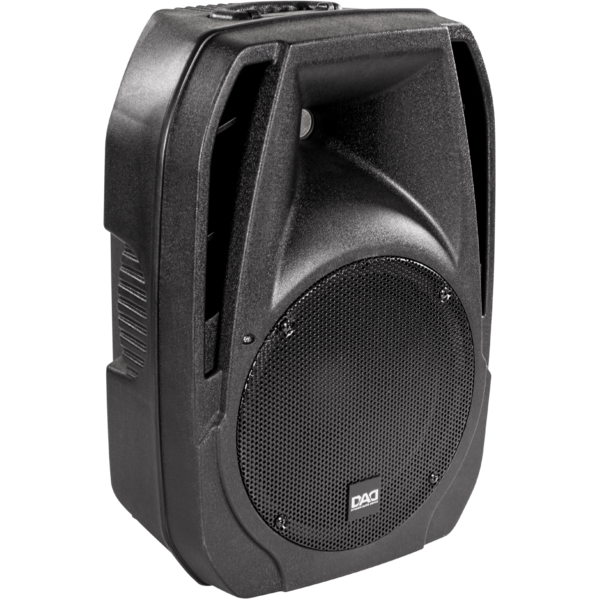

IKOS10P
DAD

IKOS10P

ORDER CODE: IKOS10P

2-way passive loudspeakers, 150 W AES,121db SPL

Main features:

  • Low frequency: 10'' woofer/1.5''v.c.
  • High frequency: 1'' driver/1.4''v.c.
  • Frequency response: 70-20000 Hz (±3dB)
  • Reproduction of voice and music for live and recorded performances
  • Cabinet designed for stage-monitor applications
  • Polypropylene box equipped with two side handles, one in the upper side and two wheels for the transport integrated
  • For portable PA systems, mobile DJ sets and voice/multimedia applications

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: passive 2 way
COMPONENTS
  • Low frequency: 10'' woofer/1.5''v.c.
  • High frequency: 1'' driver/1.4''v.c.
FEATURES
  • AES/program power: 150/300W
  • SPL max: 121dB @1m (free field)
ACOUSTICAL SPECIFICATIONS
  • Sensitivity: 94dB @1W/1m (free field)
  • Impedance: 8 Ohm
  • SPL cont/peak: 115/121dB @1m (free field)
  • Frequency response: 70-20000Hz (±3dB)
  • Coverage angle HxV: 90x45°
  • Cross over frequency: 3000Hz
  • Protection: H.F. signal compression
  • Recommended amplifier up to: 300W
INPUT/OUTPUT CONNECTORS
  • Input signal: 4pole IN/OUT
CABINET CONSTRUCTION
  • Cabinet material: 4mm / 0.16'' polypropilene
  • Sospension system: 35 mm mounting pole
  • Angle: 45° monitor applications
  • Handles: 1 top
PHYSICAL
  • Dimensions (WxHxD): 345x505x265mm / 13.58''x19.88''x10.43''
  • Weight: 7.4kg / 16.31lbs

Versions

Accessories & Related Products

BAGIKOS10
BAGIKOS10
(facoltativo)
Fabric protection for IKOS10/IKOS10A
AS255
AS255
(facoltativo)
Wall mount support for acoustic speakers, horiz. & vertical, max load 60 kg
AS210
AS210
(facoltativo)
Support for 2 speakers, 35mm clutch, min extension 43cm, max 71cm, 40 max load
SP20
SP20
(facoltativo)
