IKOS12P
ORDER CODE: IKOS12P
Share me

Immagine Principale
  • IKOS12P
  • IKOS12P
  • IKOS12P
  • IKOS12P

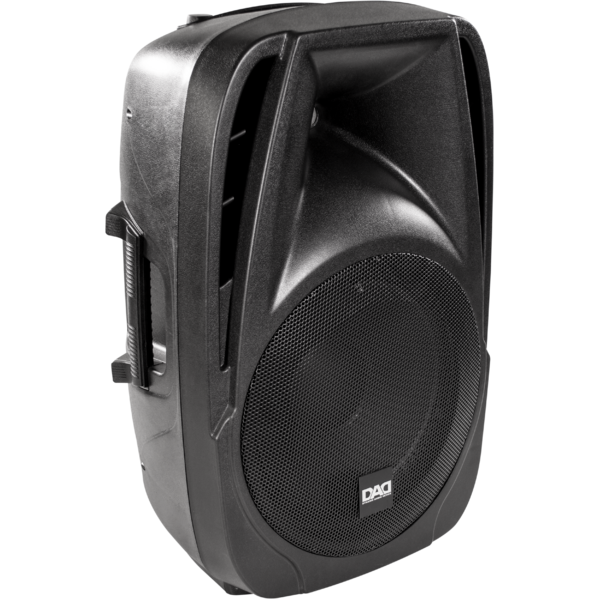

    • 2-way passive loudspeakers, 250 W AES,126dB SPL

    Features:
    Low frequency: 12'' woofer/2''v.c.
    High frequency: 1'' driver/1.4''v.c.
    Frequency response: 60-20000 Hz (±3dB)
    Reproduction of voice and music for live and recorded performances
    Cabinet designed for stage-monitor applications
    Polypropylene box equipped with two side handles, one in the upper side and two wheels for the transport integrated
    For portable PA systems, mobile DJ sets and voice/multimedia applications

    LOUDSPEAKER
    • System type:
      passive 2 way
    COMPONENTS
    • Low frequency:
      12
      ''
      woofer/2''v.c.
    • High frequency:
      1
      ''
      driver/1.4''v.c.
    FEATURES
    • AES/program power:
      250/500
      W
    • SPL max:
      126
      dB
      @1m (free field)
    ACOUSTICAL SPECIFICATIONS
    • Sensitivity:
      98
      dB
      @1W/1m (free field)
    • Impedance:
      8 Ohm
    • SPL cont/peak:
      120/126
      dB
      @1m (free field)
    • Frequency response:
      60-20000
      Hz
      (±3dB)
    • Coverage angle HxV:
      90x45
      °
    • Cross over frequency:
      2500
      Hz
    • Protection:
      H.F. signal compression
    • Recommended amplifier up to:
      500
      W
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      4pole IN/OUT
    CABINET CONSTRUCTION
    • Cabinet material:
      4
      mm
      polypropilene
    • Sospension system:
      35 mm mounting pole
    • Angle:
      45
      °
      monitor applications
    • Handles:
      2 on side
    PHYSICAL
    • Dimensions (WxHxD):
      380x590x315
      mm
    • Weight:
      9.2
      kg
    ITEMS REF.
    Accessory Code
    Description
    IKOS12P (optional)
    IKOS15P (optional)
    IKOS12A (optional)
    IKOS15A (optional)
    LIVE15 (optional)
    LIVE15A (optional)
    LIVE10 (optional)
    LIVE10A (optional)
    LIVE12A (optional)
    LIVE12 (optional)
    {CODEs}ACCA5462
    End of life
    M8x25mm. Eye-bolt suitable for suspension of loudspeakers
    IKOS12P (optional)
    IKOS12A (optional)
    {CODEs}BAGIKOS12
    Fabric protection for IKOS12/IKOS12A
    IKOS12P (optional)
    LIVE8 (optional)
    IKOS10A (optional)
    IKOS10P (optional)
    IKOS15A (optional)
    IKOS12A (optional)
    IKOS15P (optional)
    IKOS8P (optional)
    IKOS8A (optional)
    LIVE12 (optional)
    LIVE12A (optional)
    LIVE10A (optional)
    LIVE10 (optional)
    LIVE15A (optional)
    LIVE15 (optional)
    FUSION12MP (optional)
    FUSION15P (optional)
    FUSION12P (optional)
    FUSION10P (optional)
    FUSION15MA (optional)
    FUSION12MA (optional)
    FUSION15A (optional)
    FUSION12A (optional)
    FUSION10A (optional)
    FUSION15MP (optional)
    {CODEs}AS255
    Wall mount support for acoustic speakers, horiz. & vertical, max load 60 kg
    IKOS12P (optional)
    LIVEPACK1500D (optional)
    LIVE18SA (optional)
    LIVE15SA (optional)
    IKOS10P (optional)
    IKOS8P (optional)
    IKOS15A (optional)
    IKOS12A (optional)
    IKOS10A (optional)
    IKOS8A (optional)
    IKOS15P (optional)
    {CODEs}AS210
    End of life
    Support for 2 speakers, 35mm clutch, min extension 43cm, max 71cm, 40 max load
    IKOS12P (optional)
    IKOS8A (optional)
    IKOS10A (optional)
    IKOS12A (optional)
    IKOS15A (optional)
    IKOS8P (optional)
    IKOS10P (optional)
    IKOS15P (optional)
    {CODEs}SP20
    Adjustable speaker pole, 35mm, H.90-140cm, 40kg max
