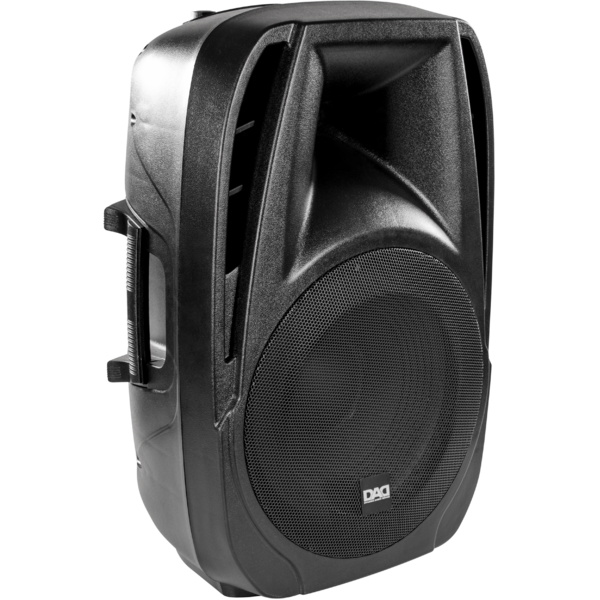

IKOS15P
ORDER CODE: IKOS15P
Share me

Immagine Principale
  • IKOS15P
  • IKOS15P
  • IKOS15P
  • IKOS15P

    • 2-way passive loudspeakers, 300 W AES,127dB SPL

    Features:
    Low frequency: 15'' woofer/2.5''v.c.
    High frequency: 1'' driver/1.7''v.c.
    Frequency response: 50-20000 Hz (±3dB)
    Reproduction of voice and music for live and recorded performances
    Cabinet designed for stage-monitor applications
    Polypropylene box equipped with two side handles, one in the upper side
    For portable PA systems, mobile DJ sets and voice/multimedia applications

    LOUDSPEAKER
    • System type:
      passive 2 way
    COMPONENTS
    • Low frequency:
      15
      ''
      woofer/2.5''v.c.
    • High frequency:
      1
      ''
      driver/1.7''v.c.
    FEATURES
    • AES/program power:
      300/600
      W
    • SPL max:
      127
      dB
      @1m (free field)
    ACOUSTICAL SPECIFICATIONS
    • Sensitivity:
      99
      dB
      @1W/1m (free field)
    • Impedance:
      8 Ohm
    • SPL cont/peak:
      121/127
      dB
      @1m (free field)
    • Frequency response:
      50-20000
      Hz
      (±3dB)
    • Coverage angle HxV:
      90x45
      °
    • Cross over frequency:
      2500
      Hz
    • Protection:
      H.F. signal compression
    • Recommended amplifier up to:
      600
      W
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      4pole IN/OUT
    CABINET CONSTRUCTION
    • Cabinet material:
      4
      mm
      polypropilene
    • Sospension system:
      35 mm mounting pole
    • Angle:
      45
      °
      monitor applications
    • Handles:
      2 on side
    PHYSICAL
    • Dimensions (WxHxD):
      445x690x380
      mm
    • Weight:
      13.2
      kg
    ITEMS REF.
    Accessory Code
    Description
    IKOS15P (optional)
    IKOS12P (optional)
    IKOS12A (optional)
    IKOS15A (optional)
    LIVE15 (optional)
    LIVE15A (optional)
    LIVE10 (optional)
    LIVE10A (optional)
    LIVE12A (optional)
    LIVE12 (optional)
    {CODEs}ACCA5462
    End of life
    M8x25mm. Eye-bolt suitable for suspension of loudspeakers
    IKOS15P (optional)
    IKOS15A (optional)
    {CODEs}BAGIKOS15
    Fabric protection for IKOS15/IKOS15A
    IKOS15P (optional)
    LIVE8 (optional)
    IKOS10A (optional)
    IKOS10P (optional)
    IKOS15A (optional)
    IKOS12A (optional)
    IKOS12P (optional)
    IKOS8P (optional)
    IKOS8A (optional)
    LIVE12 (optional)
    LIVE12A (optional)
    LIVE10A (optional)
    LIVE10 (optional)
    LIVE15A (optional)
    LIVE15 (optional)
    FUSION12MP (optional)
    FUSION15P (optional)
    FUSION12P (optional)
    FUSION10P (optional)
    FUSION15MA (optional)
    FUSION12MA (optional)
    FUSION15A (optional)
    FUSION12A (optional)
    FUSION10A (optional)
    FUSION15MP (optional)
    {CODEs}AS255
    Wall mount support for acoustic speakers, horiz. & vertical, max load 60 kg
    IKOS15P (optional)
    LIVEPACK1500D (optional)
    LIVE18SA (optional)
    LIVE15SA (optional)
    IKOS12P (optional)
    IKOS10P (optional)
    IKOS8P (optional)
    IKOS15A (optional)
    IKOS12A (optional)
    IKOS10A (optional)
    IKOS8A (optional)
    {CODEs}AS210
    End of life
    Support for 2 speakers, 35mm clutch, min extension 43cm, max 71cm, 40 max load
    IKOS15P (optional)
    IKOS8A (optional)
    IKOS10A (optional)
    IKOS12A (optional)
    IKOS15A (optional)
    IKOS8P (optional)
    IKOS10P (optional)
    IKOS12P (optional)
    {CODEs}SP20
    Adjustable speaker pole, 35mm, H.90-140cm, 40kg max
