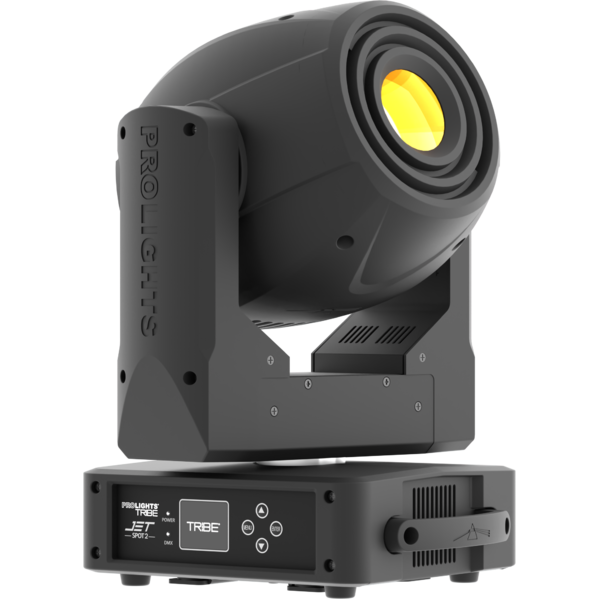

Jet Spot2
ORDER CODE: JETSPOT2
Share me

Immagine Principale
  • JETSPOT2
  • JETSPOT2
  • JETSPOT2
  • JETSPOT2
  • JETSPOT2
  • JETSPOT2
  • Jet Spot
    Code Housing Avail.
    JETSPOT2BK Black
    JETSPOT2WH White

    Jet Spot2 is a LED spot luminaire designed to deliver a stunning light level for its size and price. Ideal both for installation and for rental, the Jet Spot2 focuses on maximising the light output from its LED source to deliver a crisp, even beam from a compact size.

    Features:
    Ultra-efficient 150W 8.000 K white LED source
    Fixed 20° beam angle
    Extensive effects including one colour wheel, rotating gobo wheel, static gobo wheel, prism and focus

    LIGHT SOURCE
    • Source:
      150
      W
      high-power white LED
    • CCT:
      8.000
      K
    • Luminous flux:
      7'400
      lm
    • Lux:
      8'900
      lx
      @3 m
    • Lux:
      810
      lx
      @10 m
    • CRI:
      78
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      20
      °
    • Focus:
      motorised
    COLOUR SYSTEM
    • Colour wheel:
      8
      colour filters
    DYNAMIC EFFECTS
    • Rotating gobos:
      7
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      outer: 24,2 mm - image: 20 mm - thickness: 0,3 mm
    • Fixed gobos:
      8
      fixed gobos + open
    • Circular prism:
      3
      f
      with bi-directional rotation, indexing
    • Auto mode:
      built-in programs with execution speed adjustment
    BODY
    • Pan angle:
      540
      °
    • Tilt angle:
      270
      °
    • Pan/Tilt resolution:
      bit
      8 / 16-bit
    • Feedback:
      automatic repositioning after accidental movement
    • Body:
      aluminium structure with high-resistance polycarbonate cover
    • Body colour:
      black, white finishing available
    CONTROL
    • Protocols:
      DMX512, RDM
    • DMX channels:
      12 / 15
      channel
    • RDM:
      RDM for remote monitoring and settings
    • Display:
      Graphic User Interface
    • Firmware upgrade:
      yes, via USB - DMX interface (UPBOX1) not included
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 ~ 100% electronic dimmer
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Operating temperature:
      -10° ~ +45°
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption:
      225
      W
    • Max power consumption (at 120V):
      226
      W
    • Output (at 230V):
      16
      units on a single power line
    • Output (at 120V):
      8
      units on a single power line
    PHYSICAL
    • IP rating:
      20
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Signal connection:
      XLR 3p + 5p IN/OUT connectors
    • Power connection:
      Seetronic powerCON IN/OUT connectors
    • Dimensions (WxHxD):
      308x436x230
      mm
    • Weight:
      13,7
      kg
    CERTIFICATIONS / APPROVALS
    • Certifications / Approvals:
      CE, UKCA, RCM
    BOX CONTENT
    • 1 x JETSPOT2
    • 1 x 1,5 meters power cable (BARE END - SEETRONIC power connector)
    • 2 x OS24
    • User Manual
