LEDKIT4328TRI
PROLIGHTS
discontinued

LEDKIT4328TRI

ORDER CODE: LEDKIT4328TRI

Main features:

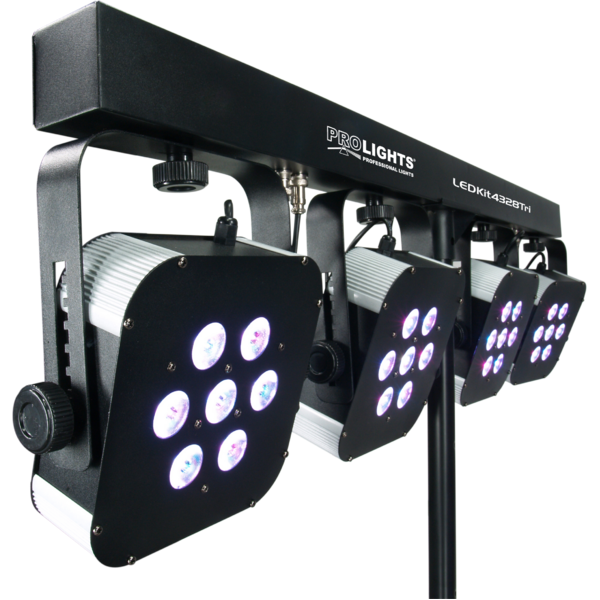

    LEDKIT4328TRI is an efficient and portable LED washer-set for lighting shows reproduction in mobile stages and medium-sized environments. LEDKIT4328TRI is composed by a lighting bar with 4 colourchangers based on LED technology, each one equipped with 7 high-power Tri-color 3W LEDs. LED technology allows these luminaires to create striking effects with dynamic colour changes, powerful and synchronized operations. The power and the control unit is contained inside the light-bar, the system also includes a footswitch, a tripod stands and a comfortable travel bag.

    Technical features
    • Light source: 28 Tri-color 3W LEDs, for a limitless color range
    • Design concept: 4 slim LED projectors (6cm), each one with 7 Tri-Color LEDs
    • Projection angle: 40°
    • LEDs average life span: >50'000 hours
    • Effect type: independent dynamic colorwashers, synchronized operation
    • 360° adjustable hanging bracket both in Horizontal and Vertical sense
    • Projectors positioning: individual height adjustment (0-11cm)
    • Power supply and control interface (through 4char LED display) are placed inside the lighting bar
    • Auto mode: 14 built-in programs with speed execution and strobe adjustment
    • DMX mode: 7 DMX available modes, 2/3/4/7/8/14/15 for remote controlling of auto shows and independent RGB controlling of each projector
    • Master/Slave mode: for synchronized operation of more units linked in a chain
    • Sound mode: sound activation through built-in microphone with sensitivity adjustment
    • Static colour mode: selection of static colour
    • Footswitch mode: 4 buttons controller with pedals (Auto, Sound, Freeze, Black&White& Whiteout)
    • Tripod stand (max 218cm) with nylon bag included
    • Ergonomic travel bag included
    • Dimensions: 120x140cm
    • Power supply: AC 100/240V, 50/60Hz
    • Working temperatures: -20/+45C°, 0-90% humidity
    • Power consumption: 90W
    • Weight: 16kg

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualLedkit4328tri_USER_MANUAL_IT.pdf1MB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    File name File size Download

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware
