LEDSTRIP342
ORDER CODE: LEDSTRIP342
Share me

Immagine Principale
  • LEDSTRIP342
  • LEDSTRIP342
  • LEDSTRIP342
  • LEDSTRIP342

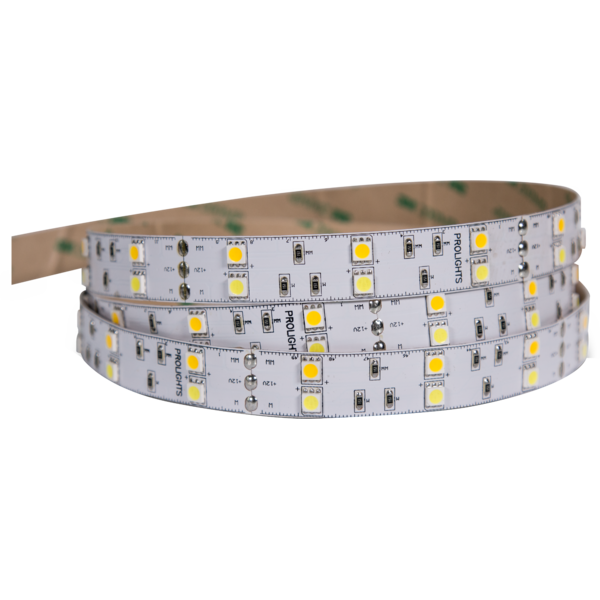

  • Flexible LED strip based on SMD5050 technology, conceived as a dynamic effect or colour changer for indoor applications



    Features:
    Light source:
    LED source: SMD5050 WW+CW
    LED density: 2x30 LEDs / m
    LED population: 300 LEDs
    LED average lifespan: > 5'000h
    Applications:
    Background lighting for walls, shop windows and in various environments such as discos, clubs or showcases
    Behind translucent plexiglass panels to create slowly changing coloured surfaces or ceilings
    Indoor architectural lightings such as stairways, archways and bridges
    Fully flexible allowing manipulation to any curve or shape whilst remaining durable
    Structure:
    IP20 rating
    PCB circuit colour: white
    Dimensions: 5000 x 18 mm
    Quick and easy mounting through 3M sticker on reverse
    Control and power supply:
    DC12V power supply through LSPW series (optional)
    Easy application and wiring, LEDSTRIP can easily be cut to size according to user requirements without damaging the rest of strip
    Power output allows for more LEDSTRIP to be linked in a chain
    Power consumption: 16 W / m, 80 W (5 m)

    ITEMS REF.
    Accessory Code
    Description
    LEDSTRIP342 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP341 (optional)
    {CODEs}LSPW75
    End of life
    Power supply unit DC12V for LEDSTRIP series, 75W
    LEDSTRIP342 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP341 (optional)
    {CODEs}LSPW120
    DISCONTINUED
    *Power supply unit DC12V for LEDSTRIP series, 120W
    LEDSTRIP342 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP341 (optional)
    {CODEs}LSPW350
    End of life
    Power supply unit DC12V for LEDSTRIP series, 350W
    LEDSTRIP342 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    {CODEs}LSDMX
    DISCONTINUED
    *3ch DMX coder for LEDSTRIP series, XLR/RJ45 connections, 4A/ch (144W) output
    LEDSTRIP342 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP341 (optional)
    {CODEs}LSWC
    End of life
    Wireless controller for LEDSTRIP seri, color, auto programs, speed, 4A/ch output
    LEDSTRIP342 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP341 (optional)
    {CODEs}LSWIFI
    End of life
    WiFi control interface for RGB LEDSTRIP, out 4A/144W
    LEDSTRIP342 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP341 (optional)
    {CODEs}LS24K
    End of life
    IR remote controller for LEDSTRIP series, 24 buttons, 12V, 2A/ch out
    LEDSTRIP342 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP341 (optional)
    {CODEs}LS6K
    End of life
    Wired controller for LEDSTRIP series, 8 buttons, 12V, 4A/ch output
    LEDSTRIP342 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP341 (optional)
    {CODEs}LSAMP
    End of life
    Signal amplifier for RGB LEDSTRIP, 4A/ch out
    LEDSTRIP342 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP341 (optional)
    {CODEs}LSTCRGB
    End of life
    Touch-sensitive control interface for RGB LEDSTRIP, out 4A/144W
    LEDSTRIP342 (optional)
    LEDSTRIP63 (optional)
    LEDSTRIP33 (optional)
    LEDSTRIP62 (optional)
    LEDSTRIP32 (optional)
    LEDSTRIP61 (optional)
    LEDSTRIP31 (optional)
    LEDSTRIP341 (optional)
    {CODEs}LSTCMONO
    End of life
    Touch-sensitive control interface for mono-color LEDSTRIP, out 4A/144W
