LIVE15SA
DAD
end of life

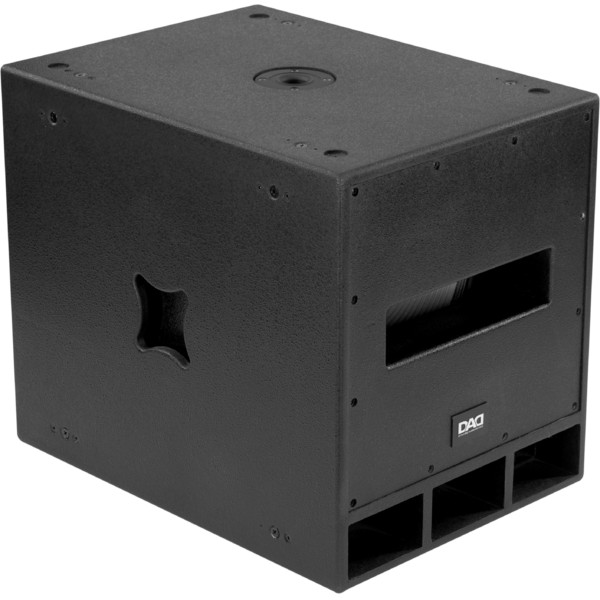

LIVE15SA

ORDER CODE: LIVE15SA

Double-reflex active subwoofer, 600 W AB-class amplifier, 130dB SPL

Main features:

  • Low frequency: 15'' woofer/4''v.c.
  • Frequency response: 45-200 Hz (±3dB)
  • Adjustable crossover: LPF:80/165 Hz - HPF 22, 80,125 Hz
  • Subwoofer for reinforcement of low frequencies in live and recorded performance
  • Sound reinforcement in permanents installations or mobile sets
  • Birch plywood enclosure

PHOTO GALLERY

Technical specifications

LOUDSPEAKER
  • System type: active subwoofer dual reflex
COMPONENTS
  • Low frequency: 15'' woofer/4''v.c.
FEATURES
  • Built-in amp LF: 600W /8 Ohm
  • Adjustable crossover: LPF:80/165 Hz - HPF 22, 80,125 Hz
ACOUSTICAL SPECIFICATIONS
  • SPL cont/peak: 124/130dB @1m (free field)
  • Frequency response: 45-200Hz (±3dB)
  • Coverage angle HxV: ° omnidirectional
  • Cross over frequency: LPF:80/165 Hz - HPF 22, 80,125 HzHz
ELECTRONICS SPECIFICATIONS
  • Amplifier: AB class
  • Power: 600W /8Ohm
  • Input sensitivity: -2 dBu (0,6Vrms) adjustable
  • Protection: limiter temp.
  • User controls: master, LPF, HPF, phase, limit
  • Processor: analog
  • Operating voltage/frequency: 100~120V/220~240V 60Hz/50Hz
INPUT/OUTPUT CONNECTORS
  • Input signal: XLR IN/OUT, jack 6.35 mm, pin RCA unbal.
  • Power connection: VDE
CABINET CONSTRUCTION
  • Cabinet material: 18mm / 0.71'' birchplywood
  • Sospension system: eyebolt, 35 mm pole mount
  • Handles: 2 on side
PHYSICAL
  • Dimensions (WxHxD): 500x580x720mm / 19.69''x22.83''x28.35''
  • Weight: 49kg / 108.03lbs

Versions

Accessories & Related Products

AS210
AS210
(facoltativo)
Support for 2 speakers, 35mm clutch, min extension 43cm, max 71cm, 40 max load
