MENAC3FPX
NEUTRIK

MENAC3FPX

ORDER CODE: MENAC3FPX

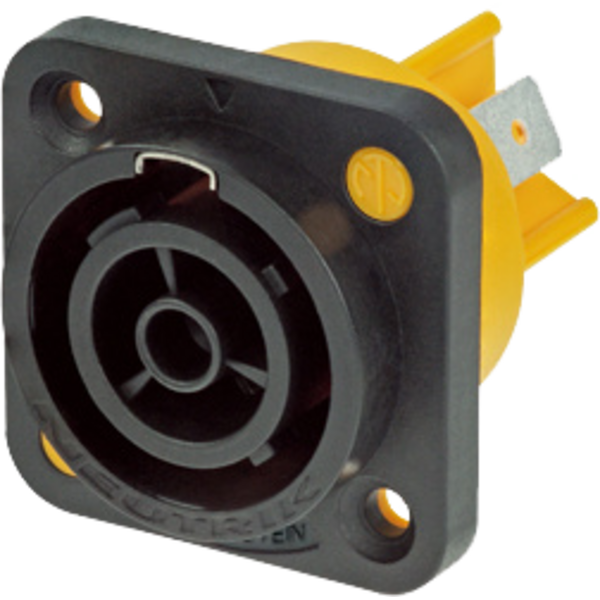

Appliance outlet connector, 1/4'' flat tab terminals.
The Neutrik powerCON TRUE1 is a locking 16 A true mains connector. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.


Main features:

  • True mains connector with breaking capacity (CBC).
  • Easy and reliable twist lock system.
  • Shell: Polyamide.
  • Contacts: Spring Copper.
  • Temperature range: -30 °C to +80 °C.
  • Lockable 16 A single phase connector (USA: 20 A).
  • ENEC certified according to IEC 60320.
  • UL recognized components.
  • Flammability class: UL 94 HB.
  • Degree of protection: IP65 (mated condition).
  • Dimensions (WxHxD): 35x35x43 mm.

PHOTO GALLERY

Technical specifications

Versions

Accessories & Related Products

    DOWNLOAD

    Data sheet & specs

    File name File size Download

    User manual

    File name File size Download
    User manualMenac3fpx_USER_MANUAL.pdf368KB

    DMX chart & personalities

    File name File size Download

    Photometrics

    File name File size Download

    CAD symbols & drawings

    Tech docs

    File name File size Download

    Software

    File name File size Download

    Firmware

    Info Request
