View catalogue
MPC1T
ORDER CODE: MPC1T
Share me

Immagine Principale
  • MPC1T
  • MPC1T
  • MPC1T

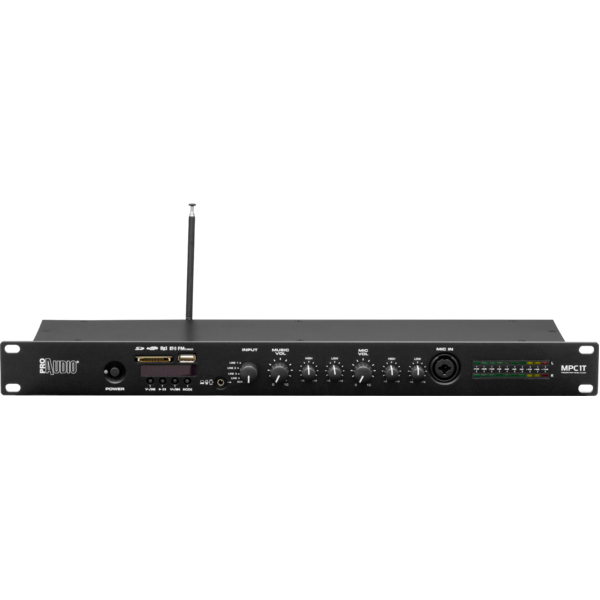

    • MPC1T is a preamplifier with MP3/FM tuner/Bluetooth media player.

    Features:
    Designed for permanent or mobile installations where easy control of music is important (eg. restaurants, gyms, stores).
    The MPC1T offers /FM tuner, digital playback from SD cards or USB sticks.
    MPC1T provides full MP3 playback control, a microphone input (XLR / 1/4 "combo), 5 line inputs (RCA / jack3.5), control the master volume, treble and bass.
    Finally, 3 line output options (RCA / JACK / XLR) are available to allow connect the unit directly to powered speakers, an amplifier or mixer secondary.

    PRE-AMPLIFIER
    • Type:
      Media player mixer with FM tuner
    AUDIO SPECIFICATIONS
    • Output level:
      +4
      dBu
    • Frequency responce:
      20 - 20000
      Hz
      (±1 dB)
    • THD+N:
      <0.1
      %
    • Input impedance:
      10
      kΩ
      unbalance
    • Signal/Noise rate:
      >100
      dB
    POWER SUPPLY STAGE
    • Type:
      Trasformer
    • Operating voltage/frequency:
      230V (+/- 5%) 50Hz
    FUNCTIONS
    • Media player:
      MP3/USB/SD/FM tuner/Bluetooth
    • Tone controls input:
      mic/line
      100 Hz, 10kHz (±12dB)
    • Input volume control:
      mic, line1/2/3/4/aux
    • Output volume control:
      output master
    INPUT/OUTPUT CONNECTORS
    • Input signal:
      XLR combo (mic), pin RCA, Jack 3.5 mm
    • Output signal:
      XLR/Jack bal. pin RCA unbal.
    • Power connection:
      VDE
    PHYSICAL
    • Dimensions (WxHxD):
      485x44x130
      mm
    • Rack unit:
      1
    • Weight:
      1.7
      kg
    For the product no accessories are related, for more information please consult the catalogue or the relevant user manual

    Firmware

    Accomplish more with our product updates
    Make sure you always get your product updated to the most recent software/hardware versions to obtain the best result out of your fixture and your show.
    Collecting feedbacks from users, we constantly add new capabilities, and improve customer experience and  technical endurance.
    Get in touch with our team for any questions or assistance.

    Drawings

    Catalogues

    #0Not available

    Fixture Libraries / DMX Charts

    Photometrics

    Software Upgrades

    Tech Docs

    Mpc1t_USER_MANUAL.pdfDownload
