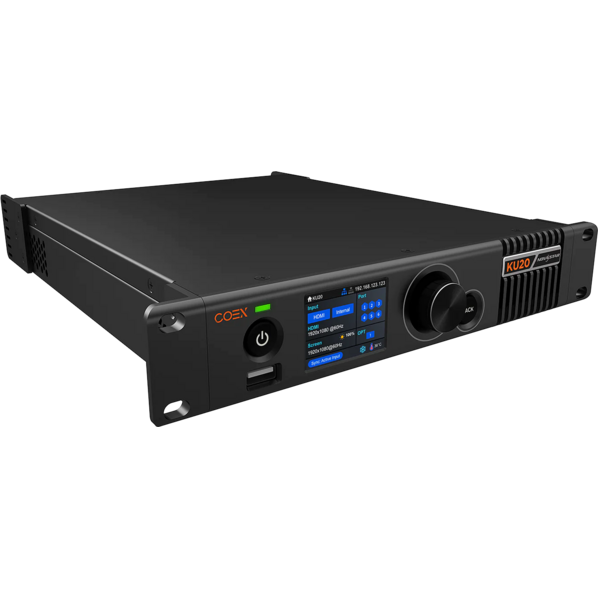

The KU20 is an LED display controller with 6 Ethernet ports in the brand-new control system COEX series of NovaStar. This controller offers 1x HDLMI input, 6x Ethernet outputs and 1x optical output. It can also work with the brand-new software VMP (Vision Management Platform) to provide a better operation and control experience.

Features

Inputs and Outputs
HDLMI input
- 1x HDLMI 1.3 input (with loop through)
- 10 bit and 8 bit video inputs

Ethernet outputs
- 6x Ethernet outputs, load capacity up to 2.3 million pixels
- Optical output: 1x 10G optical output

Advanced Features:

- Full Grayscale Calibration Work with NovaStar's high-precision calibration system and the C3200 scientific grade camera to generate unique calibration coefficients for each grayscale, ensuring uniformity of each grayscale and dramatically improving the image quality.
- Pixel level brightness and chroma calibration: Work with NovaStar's high-precision calibration system to calibrate the brightness and chroma of each pixel, effectively eliminating differences and enabling high consistency for both brightness and chroma.
- Latency: Support low latency. The latency at the controller is 0 frame (less than 1 ms) and the load capacity is not reduced.
- Support additional latency: Zero to two frames of latency can be added at the controller.
- Frame Rate Adaptive: The controller can be adaptive to various video input frame rates, including decimal frame rates. Custom frame rates are also supported and the step size of fine tuning frame rate is as small as 0.01 Hz.- Display system monitoring: Support monitoring of the device status and screen status. Any fault and alarm information can be reported actively

- VMP software control: The device can be connected to the VMP software to provide easy and convenient operations and smart device management.

- Cascading control via Ethernet: The Gigabit Ethernet control ports support TCP/IP protocol and star topology. No switch or router is needed to deploy multiple devices on the same LAN via device cascading as the network switching function is already built in.


Power input: 100-240V~, 50/60Hz, 1.5A
Max power consumption: 25 W
Operating Temperature: -20ºC to +50ºC
Operating Humidity: 0% RH to 80% RH, non-condensing
Storage Temperature: -30ºC to +80ºC
Storage Humidity: 0% RH to 95% RH, non-condensing
Dimensions: 254.3 mm × 50.6 mm × 290.0 mm
Net weight: 2.1 kg
Gross weight: 3.1 kg
Outer box: 387.0 mm × 173.0 mm × 359.0 mm, kraft paper box
Packing box: 362.0 mm ×141.0 mm ×331.0 mm, white cardboard box
Accessories:
- 1 x Power cord
- 1 x Ethernet cable
- 1 x HDLMI cable
- 1 x Certificate of Approval
